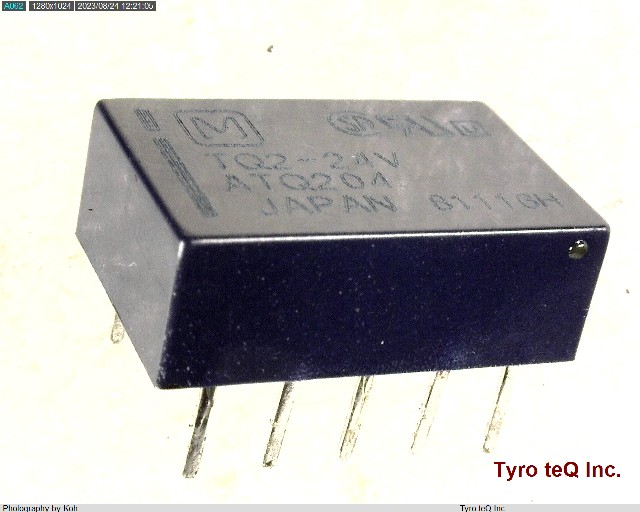

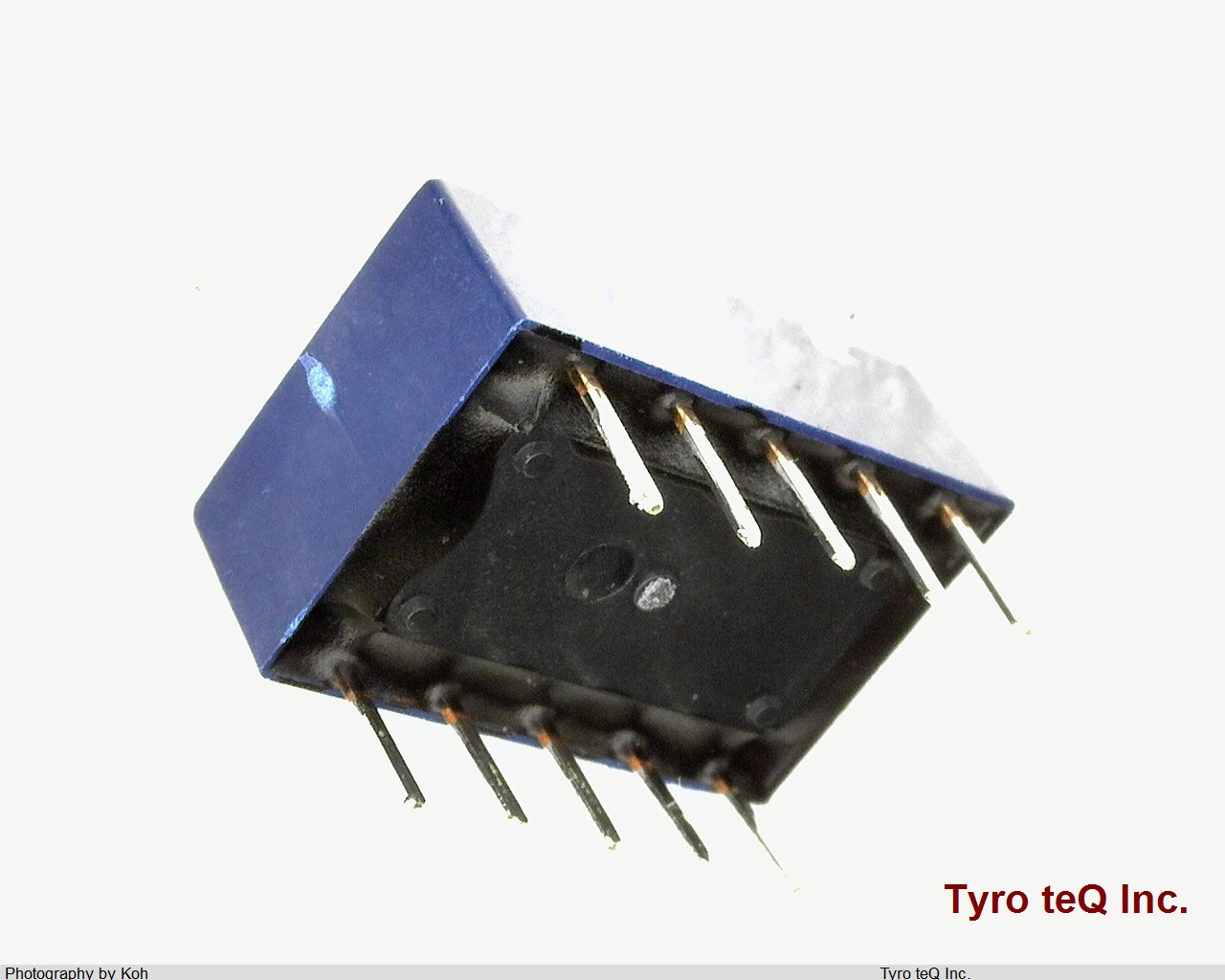

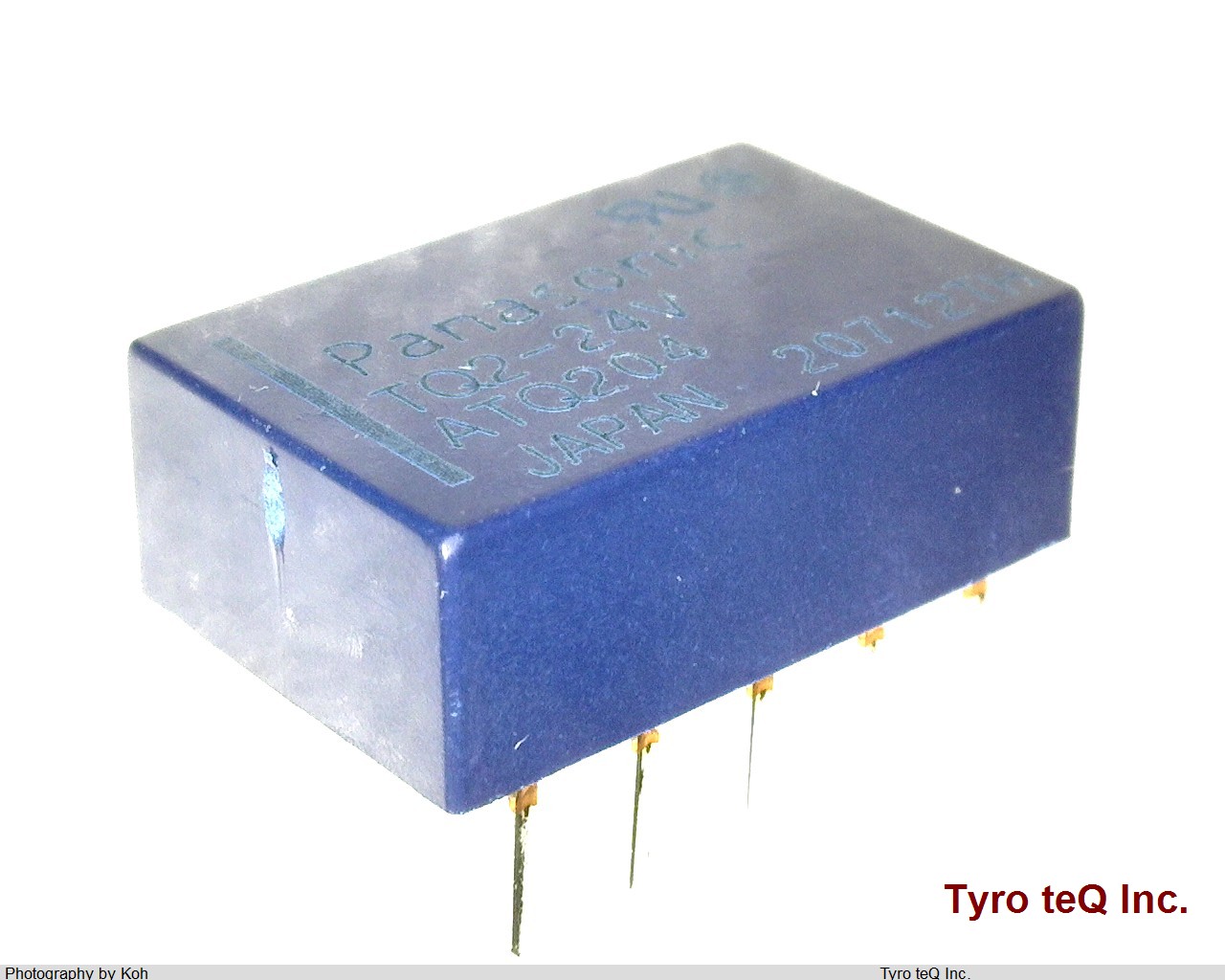

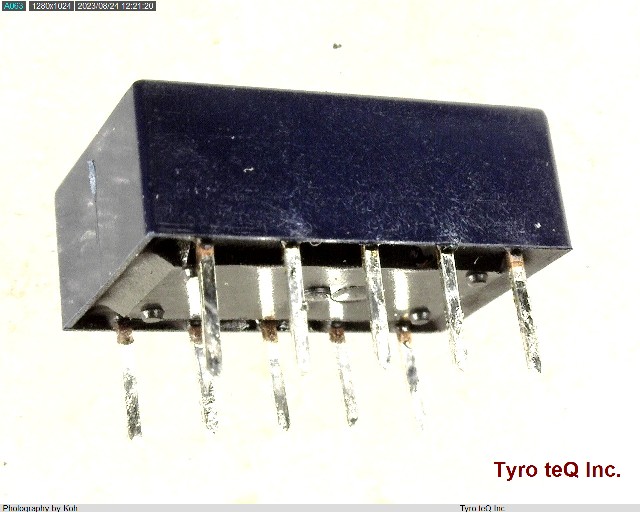

ATQ204 データシート

Name: ATQ204
Brand: PANASONIC
SKU: 110100071-0000-0000-0000

ATQ204 - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

定格電圧 : V.DC 10

ATQ204 の詳細情報

型番	ATQ204
メーカー	PANASONIC
データシート
Additional Feature	LOW PROFILE
Body Breadth	9 inch
Body Height	5 mm
Body Length or Diameter	14 mm
Coil Current(DC)-Max	0.008 A
Coil Operate Voltage(DC)	18 V
Coil Power	200 mW
Coil Release Voltage(DC)	2.4 V
Coil Resistance	2880 ohm
Coil Voltage(DC)-Max	36 V
Coil Voltage-Nom	24 V
Coil/Input Supply Type	DC
Contact AC Max Power Rating R Load	62.5VA@125VAC
Contact AC Max Rating R Load	1A@125VAC
Contact Current(AC)-Max	1 A
Contact Current(DC)-Max	1 A
Contact DC Max Power Rating R Load	30W@110VDC
Contact DC Max Rating R Load	1A@110VDC
Contact Resistance	50 mohm
Contact Voltage(AC)-Max	125 V
Contact Voltage(DC)-Max	110 V
Contact/Output Supply Type	AC/DC
Electrical Life	100000 Cycle(s)
End Contact Material	Silver
End Contact Plating	Gold
Input Switching Control Type	Random
Insulation Resistance	1000000000 ohm
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	10
Operate Time	3 ms
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
PCB Hole Count	10
Packing Method	BOX; TUBE
Physical Dimension	14mm x 9mm x 5mm
Reference Standard	CSA; UL
Relay Action	MOMENTARY
Relay Form	2 FORM C
Relay Function	DPDT
Relay Type	POWER/SIGNAL RELAY
Release Time	3 ms
Terminal Length	0.0035 inch
Termination Type	SOLDER
Weight	1.5 g
