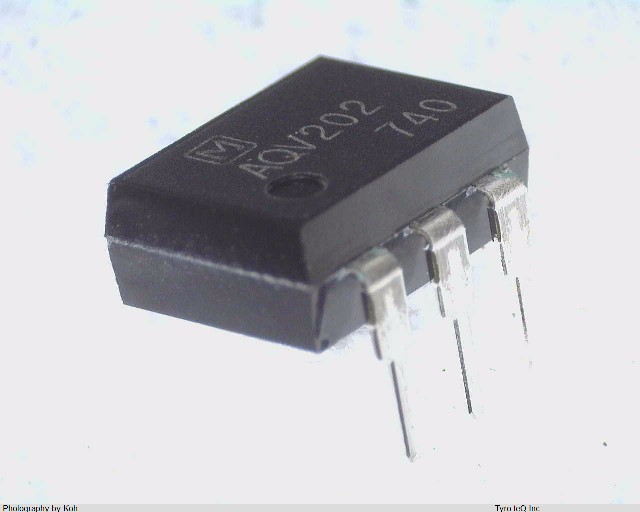

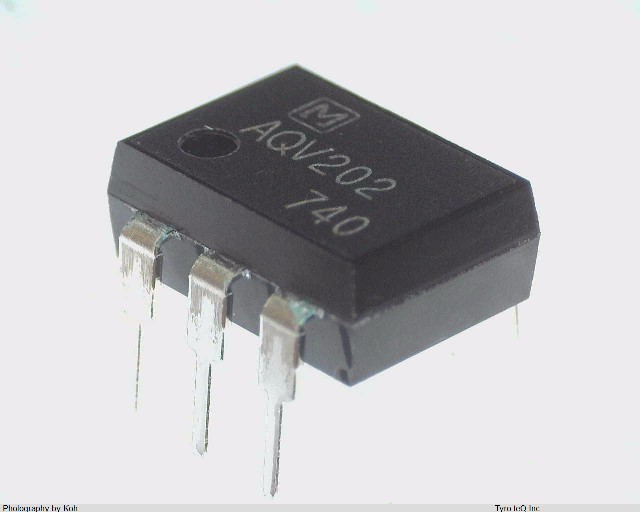

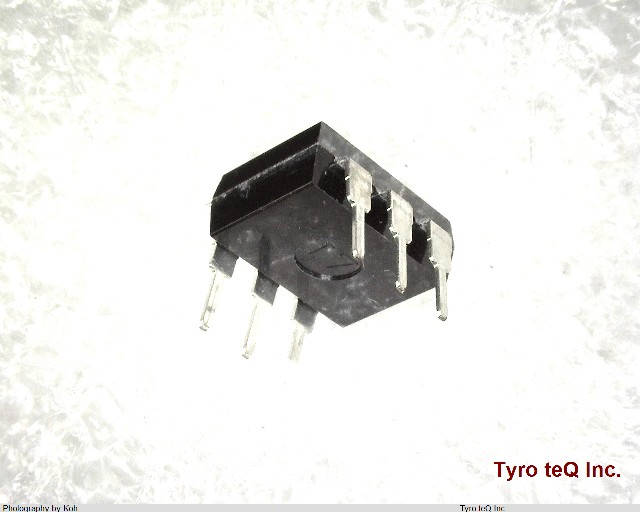

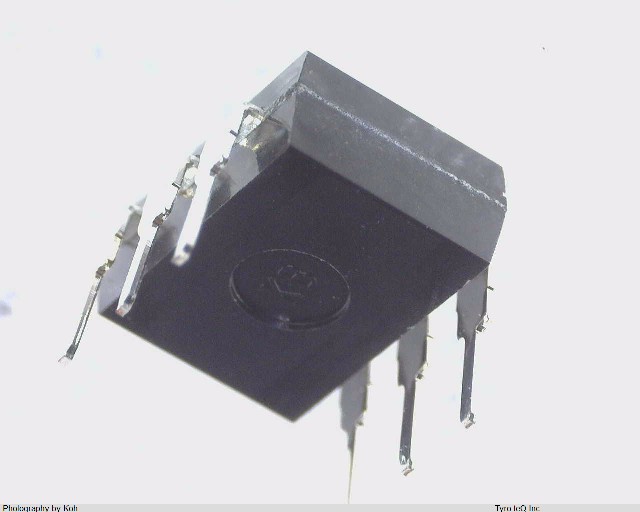

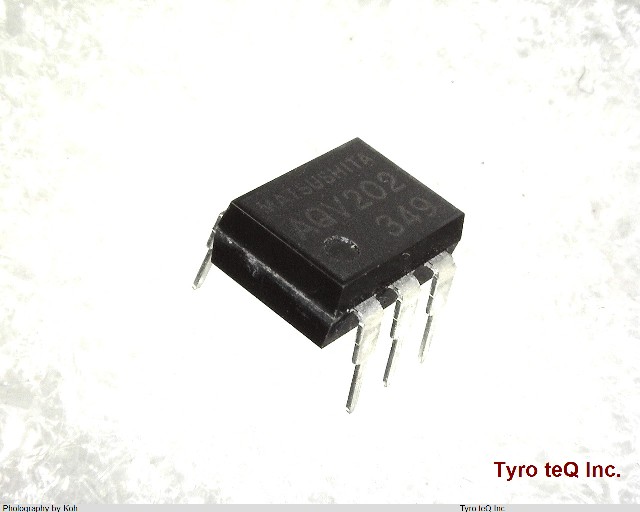

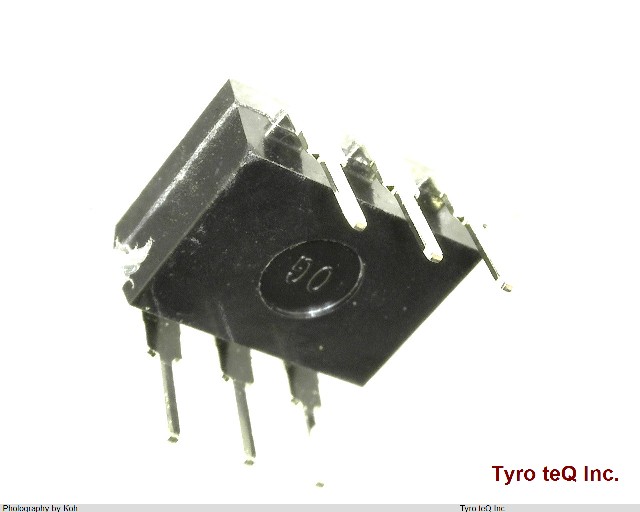

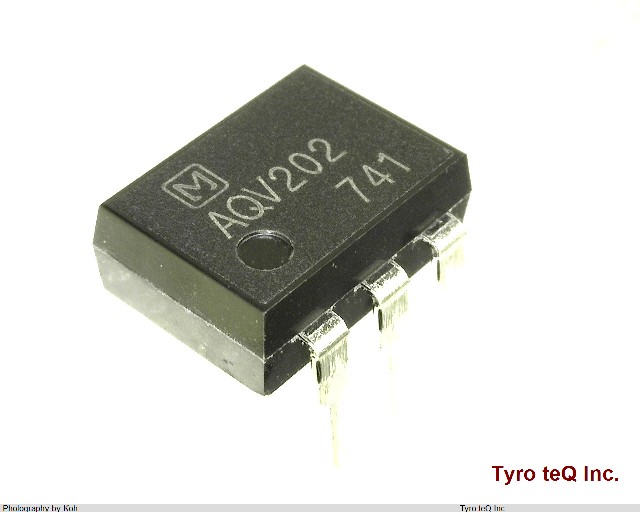

AQV202 データシート

Name: AQV202
Brand: PANASONIC
SKU: 110048337-0000-0000-0000

AQV202 - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

AQV202 の詳細情報

型番	AQV202
メーカー	PANASONIC
データシート
Additional Feature	HIGH FUNCTION TYPE, UL RECOGNIZED
Configuration	SINGLE WITH BUILT-IN DIODE
Control Current	0.0024 A
Control Voltage	2.3 V
Forward Current-Max	0.05 A
Input Type	DC
Isolation Voltage-Max	1500 V
JESD-609 Code	e0
Number of Elements	1
On-State Current-Max	0.4 A
On-state Resistance-Max	1.4 ohm
Operating Temperature-Max	80 Cel
Operating Temperature-Min	-40 Cel
Optoelectronic Device Type	TRANSISTOR OUTPUT SSR
Output Circuit Type	MOSFET
Overall Height	3 mm
Overall Length	9 mm
Packing Method	TR
Sub Category	Solid State Relays
Terminal Finish	Tin/Lead (Sn/Pb)
