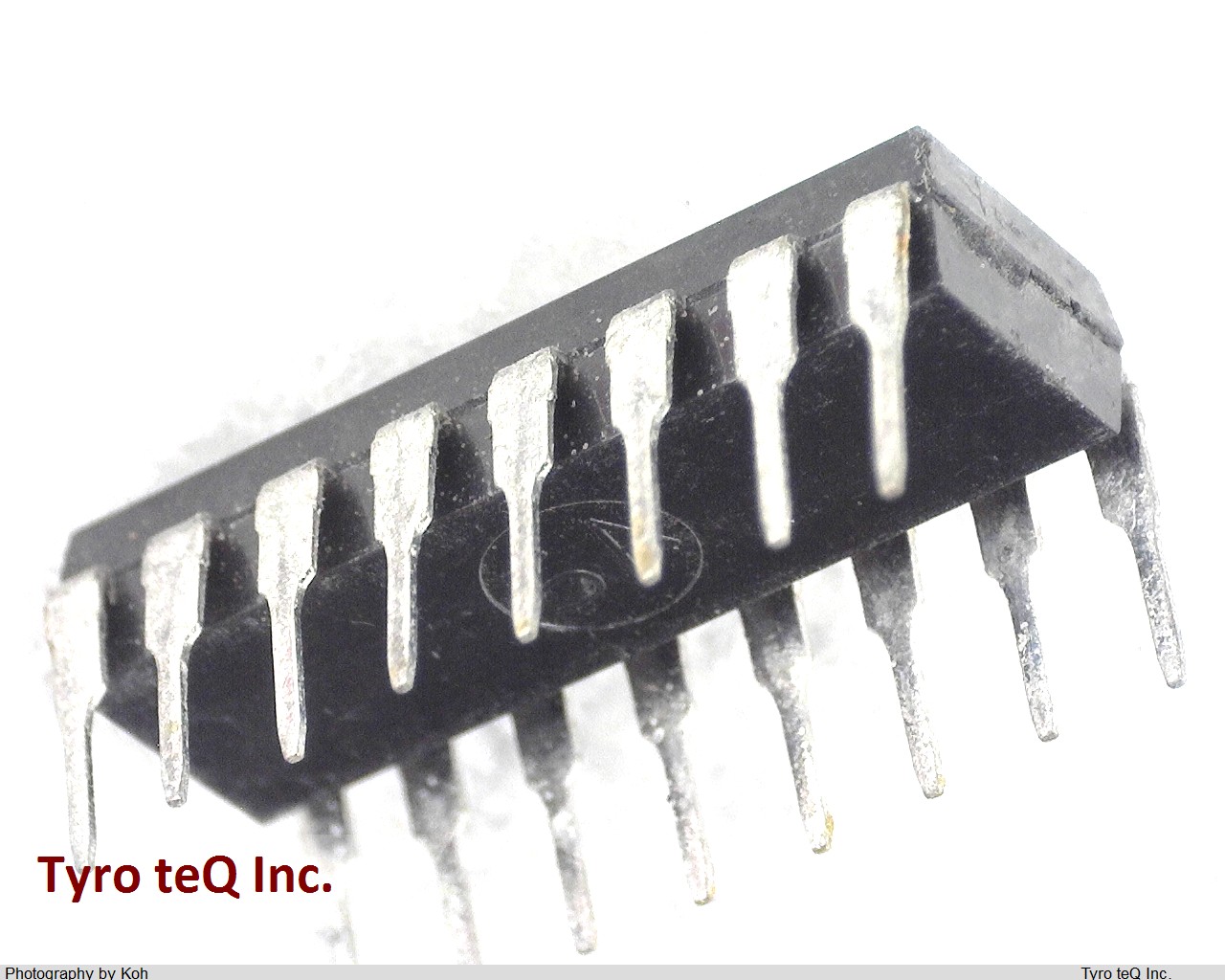

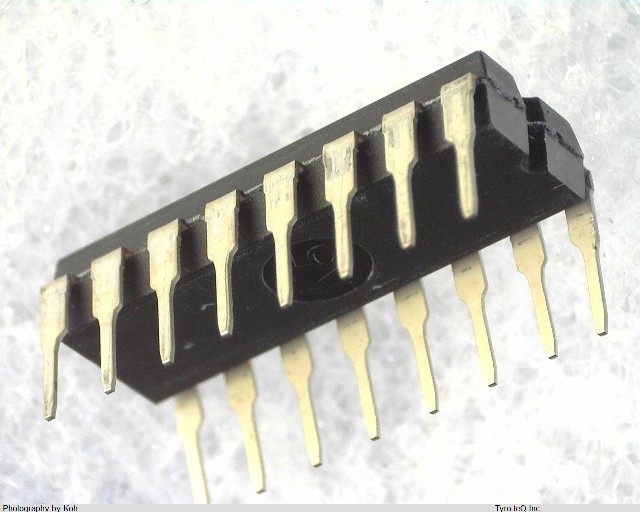

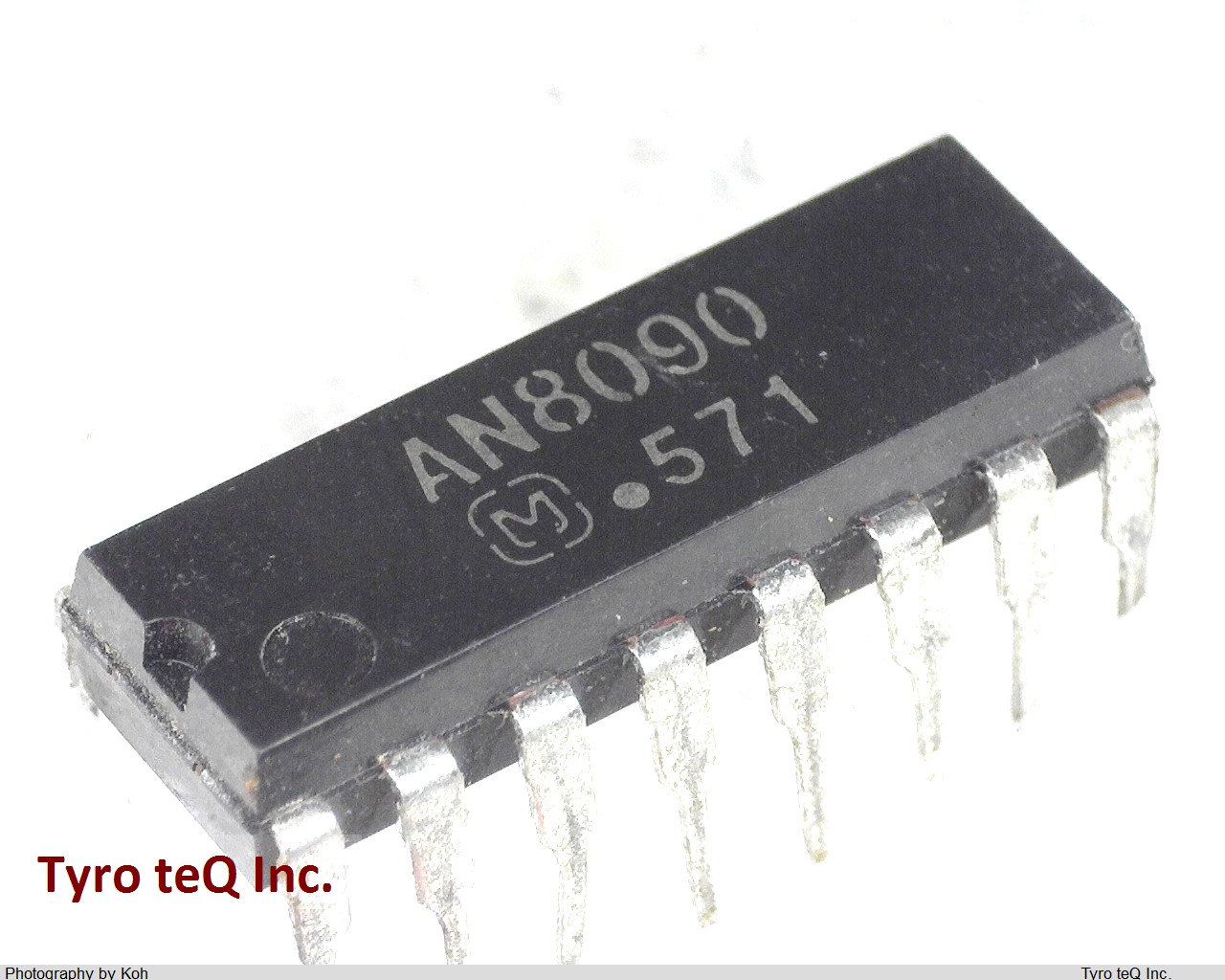

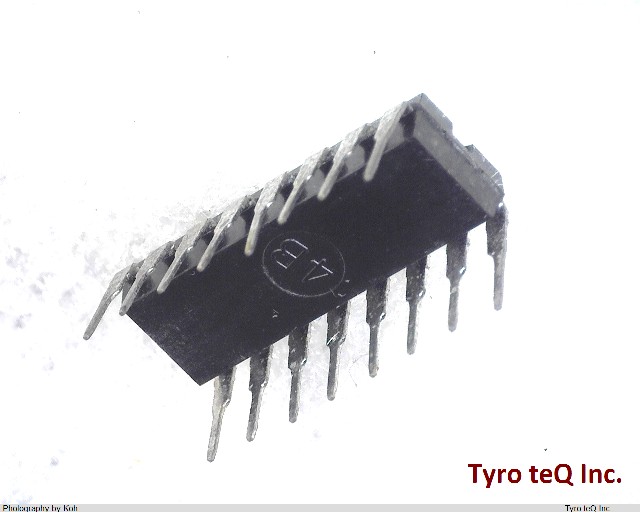

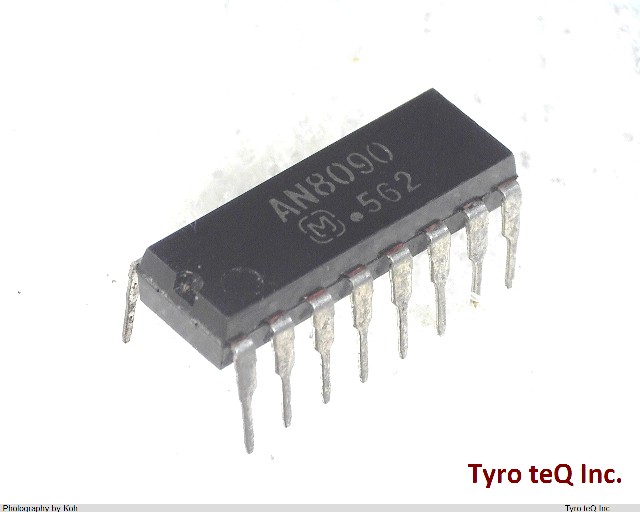

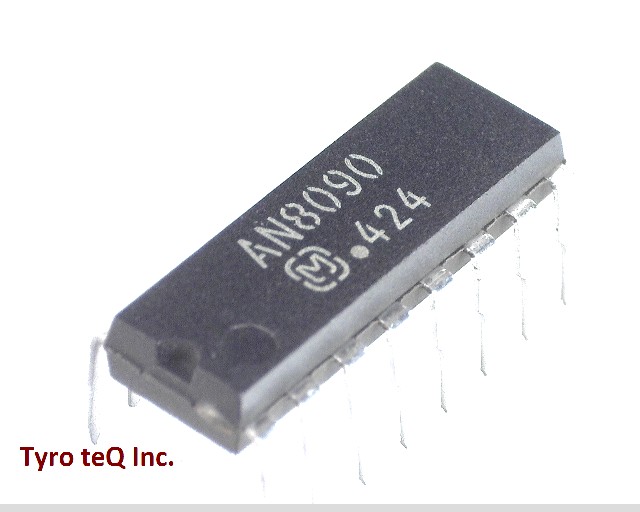

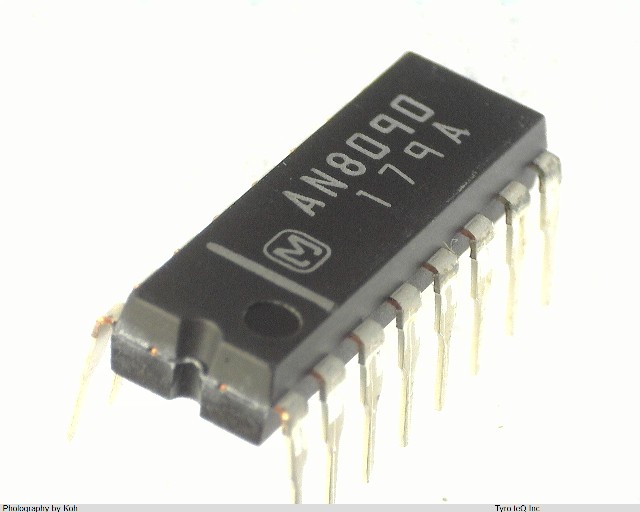

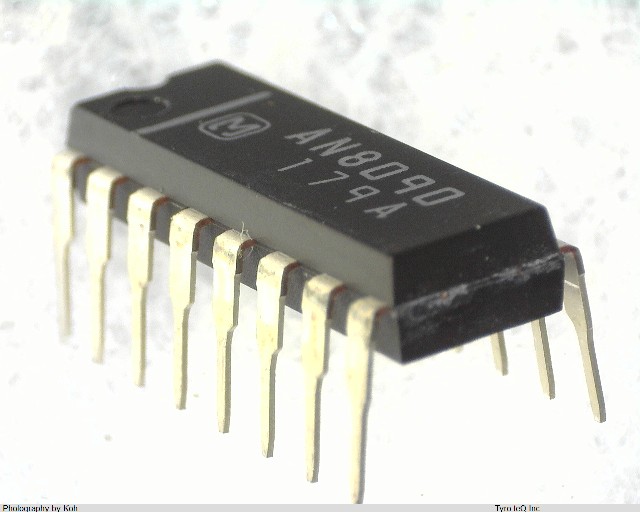

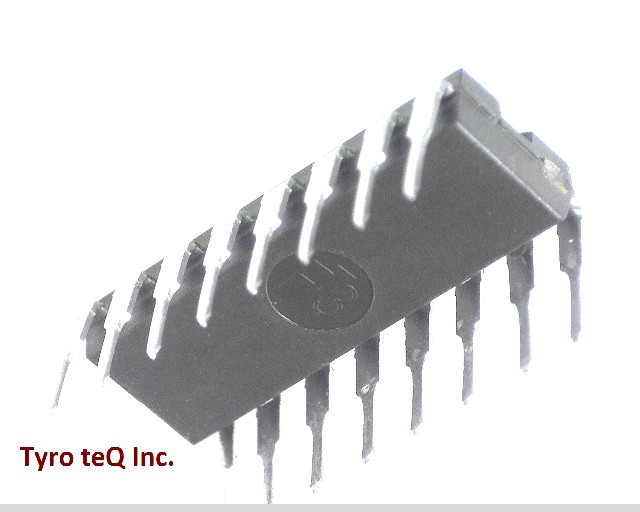

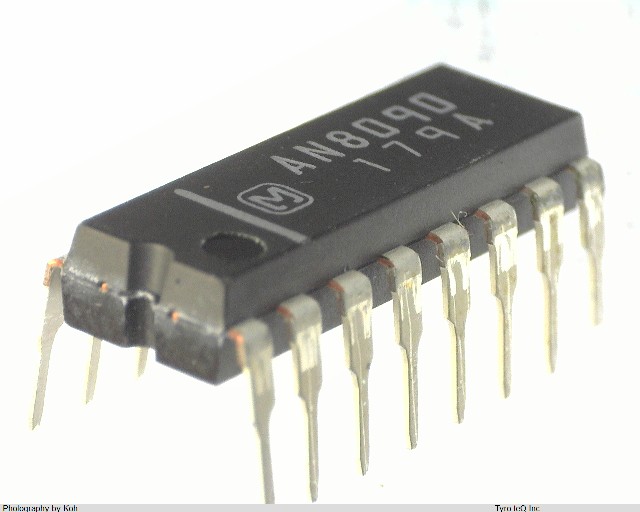

AN8090 データシート

Name: AN8090
Brand: PANASONIC
SKU: 110075904-0000-0000-0000

AN8090 - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

AN8090 の詳細情報

型番	AN8090
メーカー	PANASONIC
データシート
Analog IC - Other Type	SWITCHING CONTROLLER
Control Mode	CURRENT/VOLTAGE-MODE
Control Technique	PULSE WIDTH MODULATION
Input Voltage-Max	34 V
Input Voltage-Min	9 V
JESD-30 Code	R-PDIP-T16
JESD-609 Code	e0
Length	12.63 mm
Number of Functions	1
Number of Terminals	16
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-30 Cel
Output Current-Max	2 A
Package Body Material	PLASTIC/EPOXY
Package Code	DIP
Package Equivalence Code	DIP16,.3
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Qualification Status	Not Qualified
Seated Height-Max	2.45 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	NO
Switcher Configuration	PUSH-PULL
Switching Frequency-Max	220 kHz
Technology	BIPOLAR
Temperature Grade	OTHER
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	1.27 mm
Terminal Position	DUAL
Width	5.5 mm
