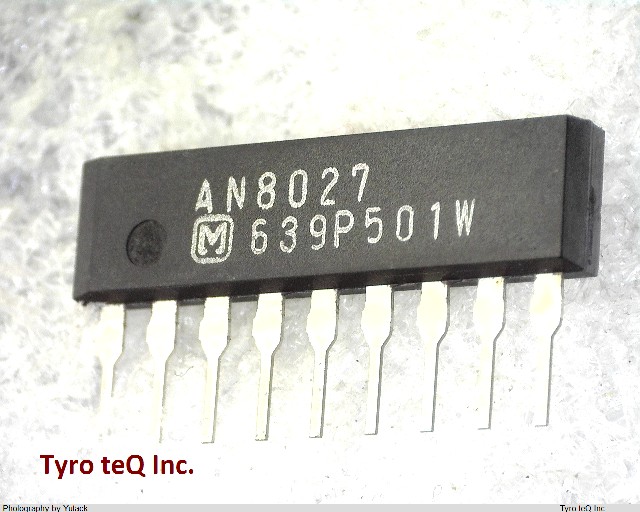

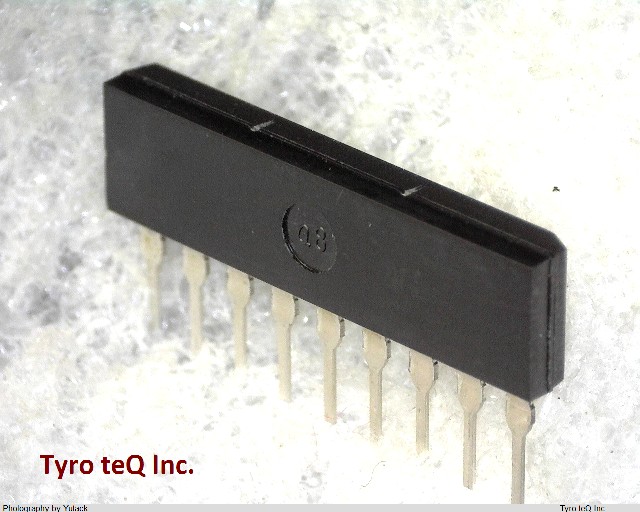

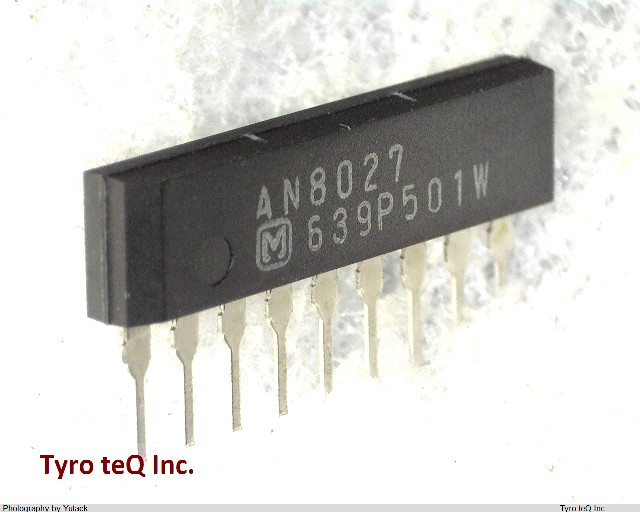

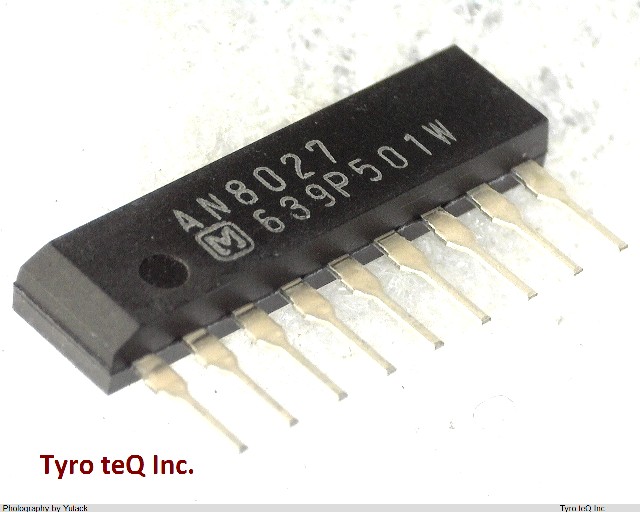

AN8027 データシート

Name: AN8027
Brand: PANASONIC
SKU: 110239471-0000-0000-0000

AN8027 - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

AN8027 の詳細情報

型番	AN8027
メーカー	PANASONIC
データシート
Analog IC - Other Type	SWITCHING CONTROLLER
Control Mode	CURRENT-MODE
Control Technique	RESONANT CONTROL
Input Voltage-Min	9.5 V
Input Voltage-Nom	18 V
JESD-30 Code	R-PSIP-T9
JESD-609 Code	e0
Length	23.3 mm
Number of Functions	1
Number of Terminals	9
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-30 Cel
Output Current-Max	1 A
Package Body Material	PLASTIC/EPOXY
Package Code	SIP
Package Equivalence Code	SIP9,.05
Package Shape	RECTANGULAR
Package Style	IN-LINE Meter
Qualification Status	Not Qualified
Seated Height-Max	8.95 mm
Sub Category	Switching Regulator or Controllers
Surface Mount	NO
Switcher Configuration	SINGLE
Switching Frequency-Max	80 kHz
Temperature Grade	OTHER
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	SINGLE
Width	3 mm
