AN79L06M データシート

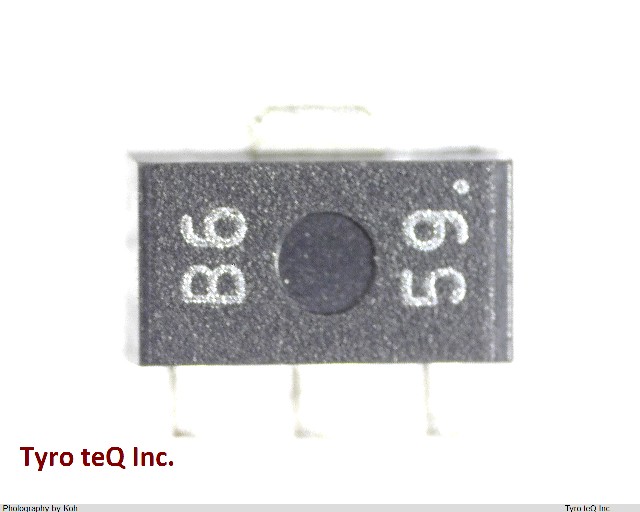

Name: AN79L06M
Brand: PANASONIC
SKU: 110268774-0000-0000-0000

AN79L06M - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

AN79L06M の詳細情報

型番	AN79L06M
メーカー	PANASONIC
データシート
Adjustability	FIXED
Input Voltage Absolute-Max	35 V
Input Voltage-Max	22 V
Input Voltage-Min	8 V
JESD-30 Code	R-PSSO-F3
Length	4.5 mm
Line Regulation-Max	0.12 %
Load Regulation-Max	0.06 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature, TJ-Max	100 Cel
Operating Temperature, TJ-Min	0 Cel
Output Current1-Max	0.1 A
Output Voltage1-Max	6.3 V
Output Voltage1-Min	5.7 V
Output Voltage1-Nom	6 V
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	TO-243
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Qualification Status	Not Qualified
Regulator Type	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR
Seated Height-Max	1.6 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	BIPOLAR
Terminal Form	FLAT
Terminal Pitch	1.5 mm
Terminal Position	SINGLE
Voltage Tolerance-Max	5 %
Width	2.5 mm
