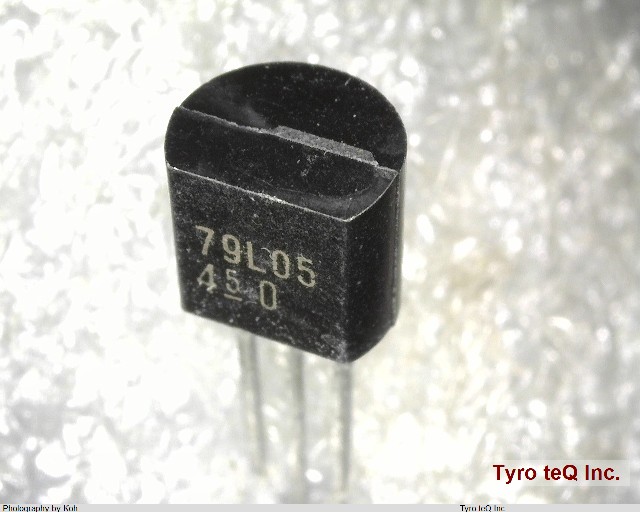

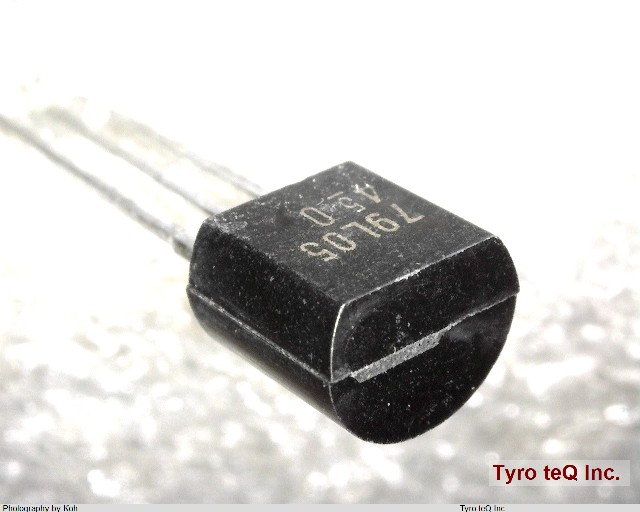

AN79L05 データシート

Name: AN79L05
Brand: PANASONIC
SKU: 110075839-0000-0000-0000

AN79L05 - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

AN79L05 の詳細情報

型番	AN79L05
メーカー	PANASONIC
データシート
Adjustability	FIXED
Input Voltage Absolute-Max	35 V
Input Voltage-Max	21 V
Input Voltage-Min	7 V
JESD-30 Code	O-PBCY-T3
Length	4.5 mm
Line Regulation-Max	0.1 %
Load Regulation-Max	0.06 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	0 Cel
Output Current1-Max	0.1 A
Output Voltage1-Max	5.25 V
Output Voltage1-Min	4.75 V
Output Voltage1-Nom	5 V
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	SIP3,.1,50
Package Shape	RECTANGULAR
Package Style	CYLINDRICAL Meter
Qualification Status	Not Qualified
Regulator Type	FIXED NEGATIVE SINGLE OUTPUT STANDARD REGULATOR
Seated Height-Max	1.6 mm
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Form	FLAT
Terminal Pitch	1.27 mm
Terminal Position	BOTTOM
Voltage Tolerance-Max	5 %
Width	2.5 mm
