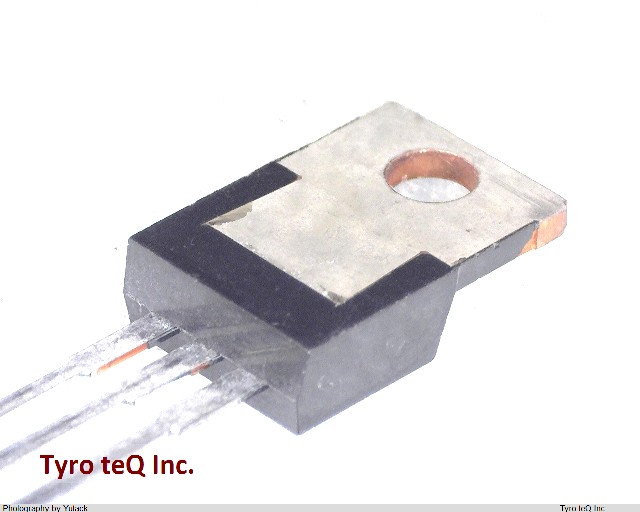

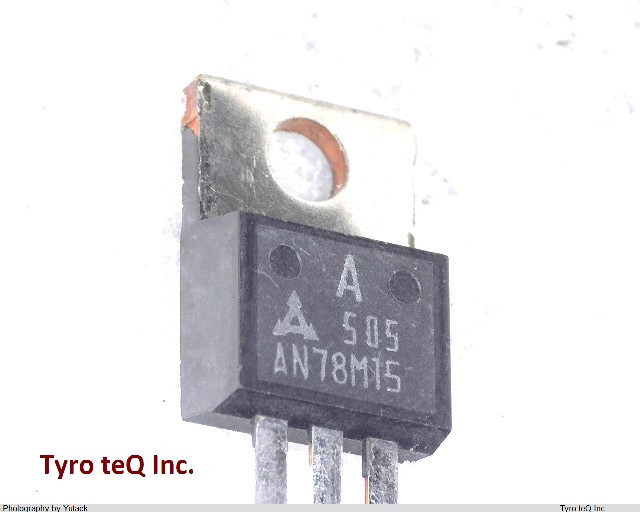

AN78M15 データシート

Name: AN78M15
Brand: PANASONIC
SKU: 110120503-0000-0000-0000

AN78M15 - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

AN78M15 の詳細情報

型番	AN78M15
メーカー	PANASONIC
データシート
Adjustability	FIXED
Dropout Voltage1-Nom	2 V
Input Voltage Absolute-Max	35 V
Input Voltage-Max	30 V
Input Voltage-Min	17.5 V
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e0
Length	6.5 mm
Line Regulation-Max	0.1 %
Load Regulation-Max	0.3 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	2
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	0 Cel
Output Current1-Max	0.5 A
Output Voltage1-Max	15.75 V
Output Voltage1-Min	14.25 V
Output Voltage1-Nom	15 V
Package Body Material	PLASTIC/EPOXY
Package Code	TO-252
Package Equivalence Code	SIP3,.1ISO-TB
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Seated Height-Max	2.6 mm
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Finish	TIN LEAD
Terminal Form	GULL WING
Terminal Pitch	2.3 mm
Terminal Position	SINGLE
Voltage Tolerance-Max	5 %
Width	5.5 mm
