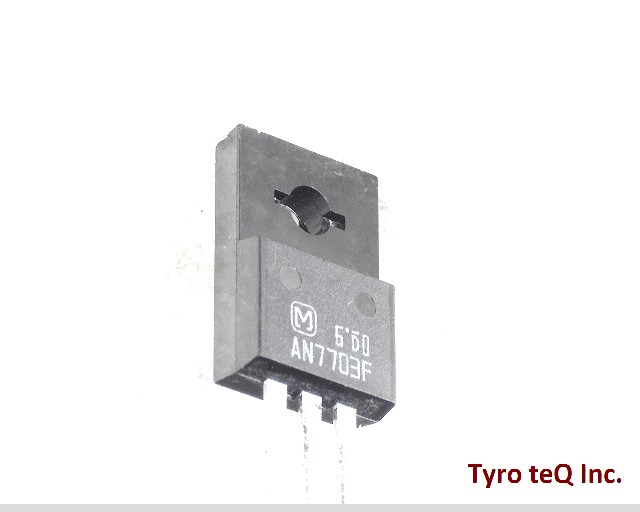

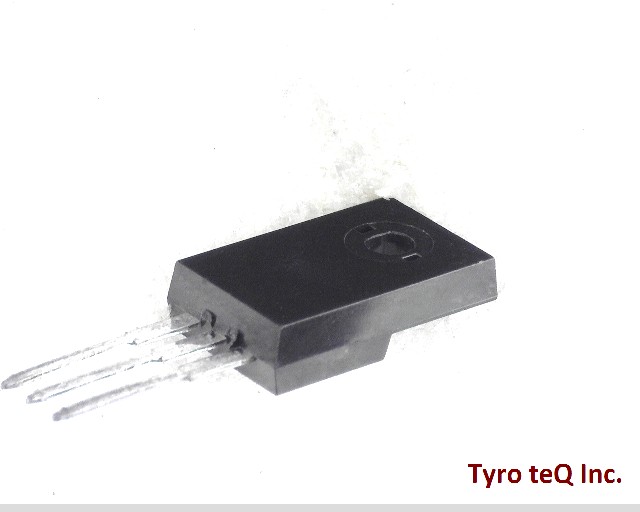

AN7703F データシート

Name: AN7703F
Brand: PANASONIC
SKU: 110268857-0000-0000-0000

AN7703F - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

AN7703F の詳細情報

型番	AN7703F
メーカー	PANASONIC
データシート
Adjustability	FIXED
Dropout Voltage1-Max	1 V
Dropout Voltage1-Nom	0.5 V
Input Voltage Absolute-Max	30 V
Input Voltage-Max	14 V
Input Voltage-Min	4 V
JESD-30 Code	R-PSFM-T3
JESD-609 Code	e0
Line Regulation-Max	0.03 %
Load Regulation-Max	0.06 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	3
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	25 Cel
Output Current1-Max	1.2 A
Output Voltage1-Max	3.09 V
Output Voltage1-Min	2.91 V
Output Voltage1-Nom	3 V
Package Body Material	PLASTIC/EPOXY
Package Equivalence Code	SIP3,.1ISO-TB
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Sub Category	Other Regulators
Surface Mount	NO
Technology	BIPOLAR
Terminal Finish	TIN LEAD
Terminal Form	THROUGH-HOLE
Terminal Pitch	2.54 mm
Terminal Position	SINGLE
Voltage Tolerance-Max	3 %
