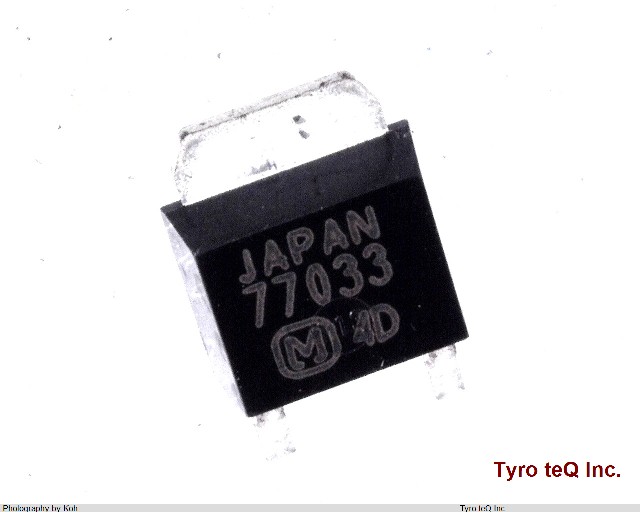

AN77033SP データシート

Name: AN77033SP
Brand: PANASONIC
SKU: 110256065-0000-0000-0000

AN77033SP - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

AN77033SP の詳細情報

型番	AN77033SP
メーカー	PANASONIC
データシート
Adjustability	FIXED
Dropout Voltage1-Max	1 V
Dropout Voltage1-Nom	1 V
Input Voltage Absolute-Max	30 V
Input Voltage-Max	14 V
Input Voltage-Min	4.3 V
JESD-30 Code	R-PSSO-G2
Length	6.5 mm
Line Regulation-Max	0.035 %
Load Regulation-Max	0.07 %
Number of Functions	1
Number of Outputs	1
Number of Terminals	2
Operating Temperature, TJ-Max	125 Cel
Operating Temperature, TJ-Min	25 Cel
Output Current1-Max	1.2 A
Output Voltage1-Max	3.4 V
Output Voltage1-Min	3.2 V
Output Voltage1-Nom	3.3 V
Package Body Material	PLASTIC/EPOXY
Package Code	TO-252
Package Equivalence Code	SMSIP3H,.38,90TB
Package Shape	RECTANGULAR
Package Style	SMALL OUTLINE Meter
Qualification Status	Not Qualified
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Seated Height-Max	2.4 mm
Sub Category	Other Regulators
Surface Mount	YES
Technology	BIPOLAR
Terminal Form	GULL WING
Terminal Pitch	2.3 mm
Terminal Position	SINGLE
Voltage Tolerance-Max	3.03 %
Width	5.5 mm
