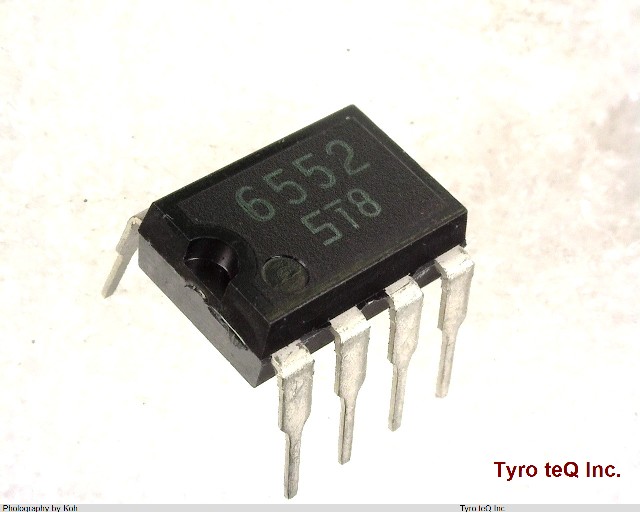

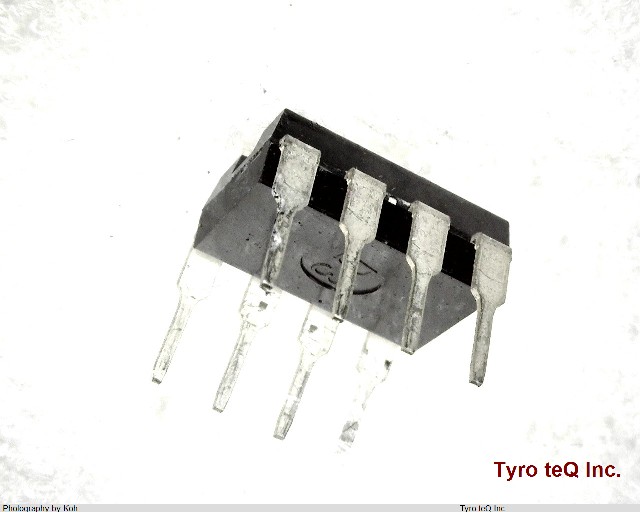

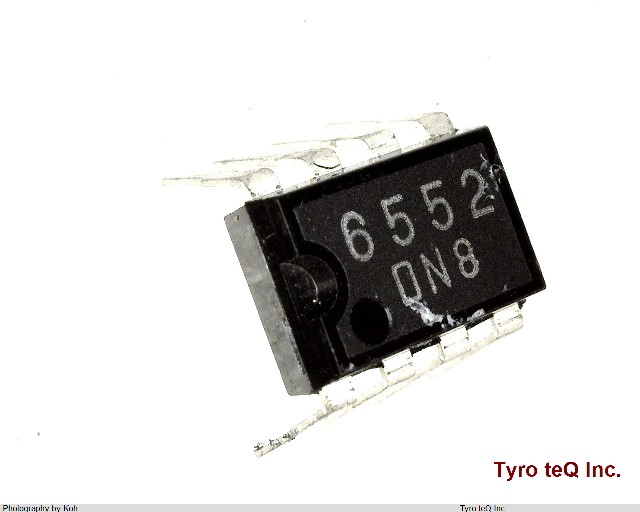

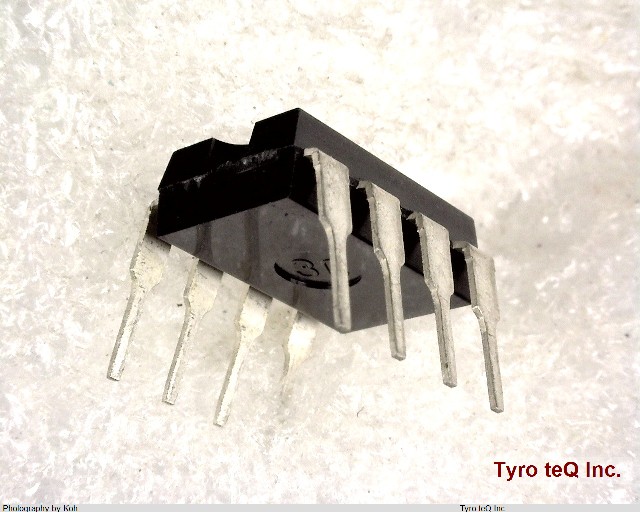

AN6552
データシート
1
-
- 個
２営業日以内に回答いたします
AN6552 の詳細情報
- 仕様・詳細
- メーカー情報
| 型番 | AN6552 |
|---|---|
| メーカー | PANASONIC |
| データシート |  |
| Amplifier Type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Average Bias Current-Max (IIB) | 0.5 uA |
| Bias Current-Max (IIB) @25C | 0.5 uA |
| Common-mode Reject Ratio-Nom | 90 dB |
| Frequency Compensation | YES |
| Input Offset Voltage-Max | 6000 uV |
| JESD-30 Code | R-PDIP-T8 |
| JESD-609 Code | e0 |
| Length | 5 mm |
| Low-Offset | NO |
| Neg Supply Voltage Limit-Max | -18 V |
| Neg Supply Voltage-Nom (Vsup) | -15 V |
| Number of Functions | 2 |
| Number of Terminals | 8 |
| Operating Temperature-Max | 75 Cel |
| Operating Temperature-Min | -20 Cel |
| Package Body Material | PLASTIC/EPOXY |
| Package Code | DIP |
| Package Equivalence Code | DIP8,.3 |
| Package Shape | RECTANGULAR |
| Package Style | IN-LINE Meter |
| Power Supplies | +-15 V |
| Qualification Status | Not Qualified |
| Seated Height-Max | 1.9 mm |
| Slew Rate-Nom | 1 V/us |
| Sub Category | Operational Amplifier |
| Supply Voltage Limit-Max | 18 V |
| Supply Voltage-Nom (Vsup) | 15 V |
| Surface Mount | NO |
| Technology | BIPOLAR |
| Temperature Grade | COMMERCIAL EXTENDED |
| Terminal Finish | TIN LEAD |
| Terminal Form | GULL WING |
| Terminal Pitch | 1.27 mm |
| Terminal Position | DUAL |
| Voltage Gain-Min | 20000 |
| Width | 4.2 mm |
