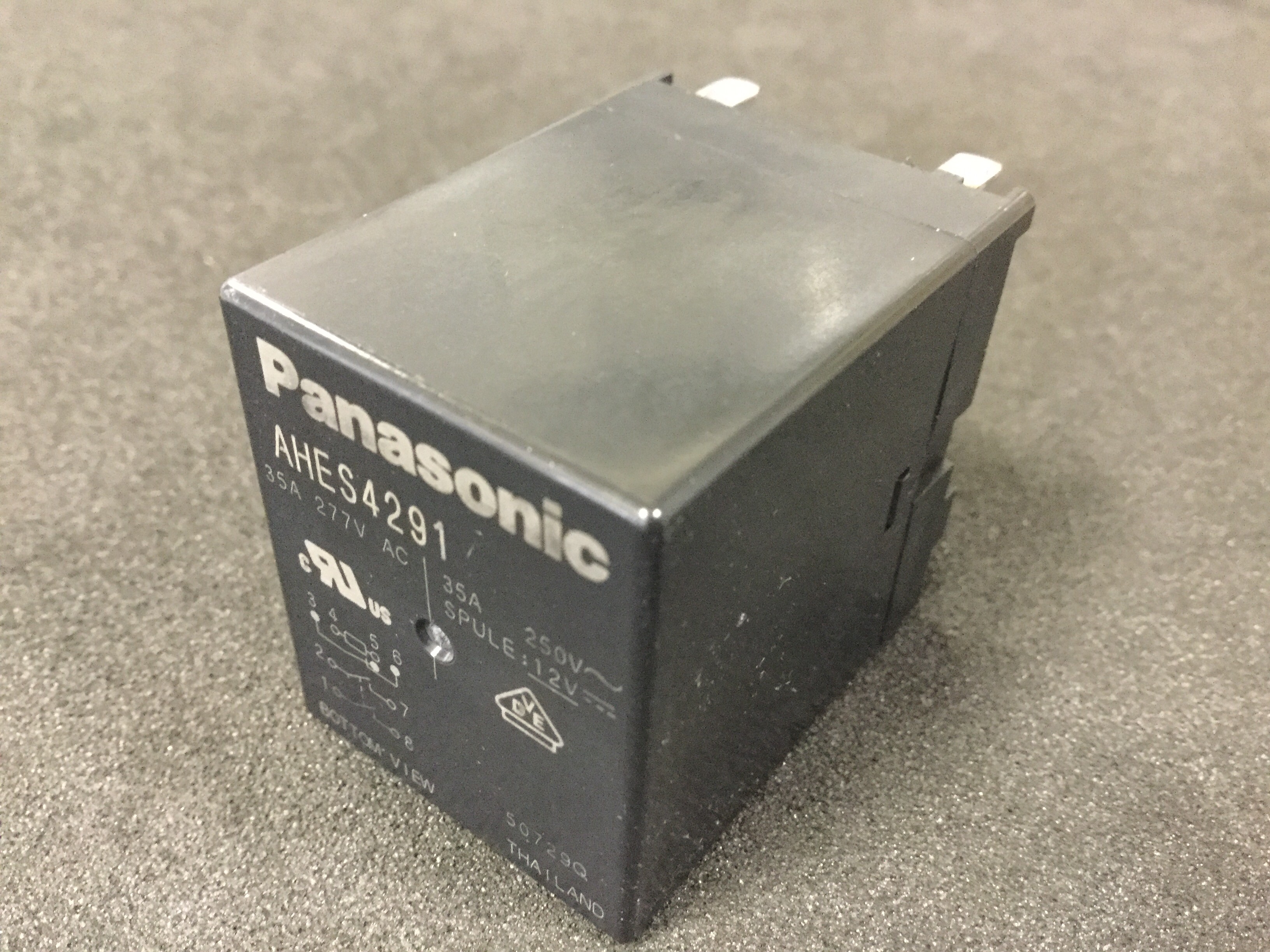

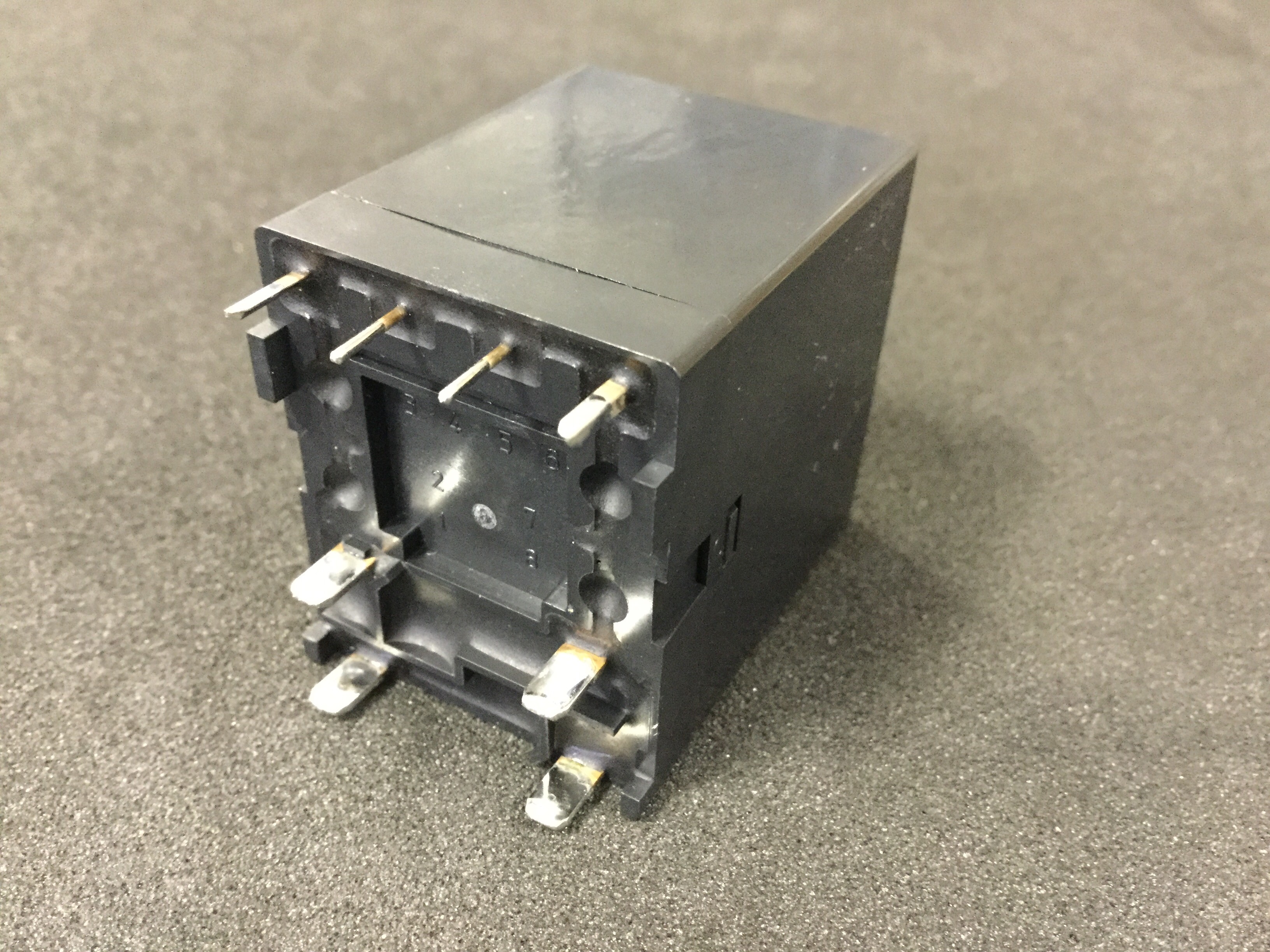

AHES4291 データシート

Name: AHES4291
Brand: PANASONIC
SKU: 110257092-0000-0000-0000

AHES4291 - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

AHES4291 の詳細情報

型番	AHES4291
メーカー	PANASONIC
データシート
Additional Feature	Ratings are as per NO and NC rating is 1A/277VAC, 1A/30VDC, Contact Material for NC is SILVER NICKEL and Contact Plating is GOLD
Body Breadth	30 inch
Body Height	40 mm
Body Length or Diameter	36 mm
Coil Current(DC)-Max	0.157 A
Coil Operate Voltage(DC)	9 V
Coil Power	1880 mW
Coil Release Voltage(DC)	0.6 V
Coil Resistance	76.6 ohm
Coil Voltage(DC)-Max	13.2 V
Coil Voltage-Nom	12 V
Coil/Input Supply Type	DC
Contact AC Max Power Rating R Load	9695VA@480VAC
Contact AC Max Rating R Load	35A@480VAC
Contact Current(AC)-Max	35 A
Contact Current(DC)-Max	35 A
Contact DC Max Rating R Load	35A@110VDC
Contact Resistance	100 mohm
Contact Voltage(AC)-Max	480 V
Contact Voltage(DC)-Max	110 V
Contact/Output Supply Type	AC/DC
Electrical Life	50000 Cycle(s)
End Contact Material	Silver Tin Oxide
Input Switching Control Type	Random
Insulation Resistance	1000000000 ohm
Mounting Feature	THROUGH HOLE-STRAIGHT
Number of Terminals	8
Operate Time	30 ms
Operating Temperature-Max	55 Cel
Operating Temperature-Min	-40 Cel
Packing Method	BOX
Physical Dimension	36mm x 30mm x 40mm
Reference Standard	CUL; EN; IEC; UL; VDE
Relay Action	MBB
Relay Form	2 FORM A, 1 FORM B
Relay Function	3PST
Relay Type	POWER/SIGNAL RELAY
Release Time	10 ms
Sealing	RT2
Terminal Length	0.002 inch
Termination Type	SOLDER
