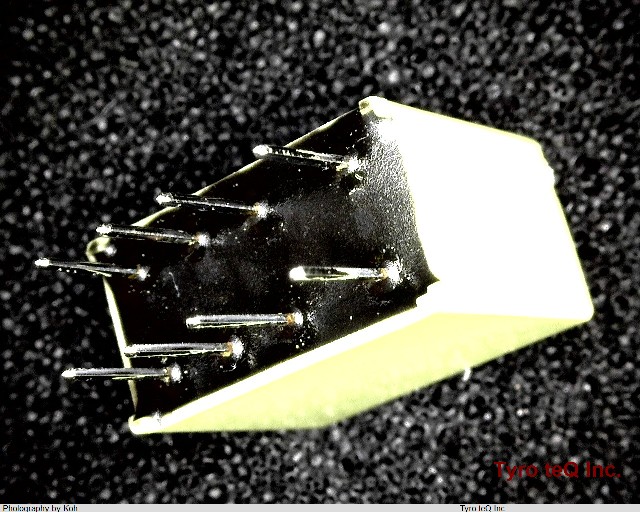

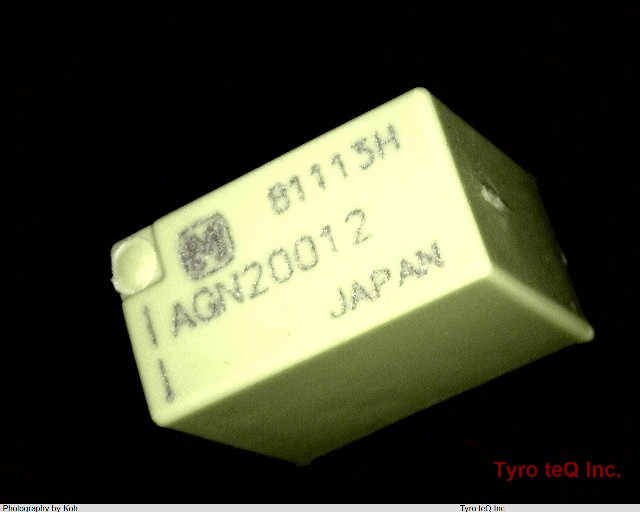

AGN20012

Name: AGN20012
Brand: PANASONIC
SKU: 110033581-0000-0000-0000

AGN20012 - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

AGN20012 の詳細情報

型番	AGN20012
メーカー	PANASONIC
Additional Feature	RELEASE TIME WITH DIODE
Body Breadth	5.7 inch
Body Height	9 mm
Body Length or Diameter	10.6 mm
Coil Current(DC)-Max	0.012 A
Coil Operate Voltage(DC)	9 V
Coil Power	140 mW
Coil Release Voltage(DC)	1.2 V
Coil Resistance	1028 ohm
Coil Voltage(DC)-Max	18 V
Coil Voltage-Nom	12 V
Coil/Input Supply Type	DC
Contact AC Max Power Rating R Load	37.5VA@125VAC
Contact AC Max Rating R Load	1A@125VAC
Contact Current(AC)-Max	1 A
Contact Current(DC)-Max	1 A
Contact DC Max Power Rating R Load	30W@30VDC
Contact DC Max Rating R Load	1A@110VDC
Contact Resistance	100 mohm
Contact Voltage(AC)-Max	125 V
Contact Voltage(DC)-Max	110 V
Contact/Output Supply Type	AC/DC
Electrical Life	100000 Cycle(s)
Input Switching Control Type	Random
Insulation Resistance	1000000000 ohm
JESD-609 Code	e1
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	8
Operate Time	4 ms
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PCB Hole Count	8
Packing Method	BOX; TUBE
Physical Dimension	10.6mm x 5.7mm x 9mm
Reference Standard	BSI; CSA; UL
Relay Action	MOMENTARY
Relay Form	2 FORM C
Relay Function	DPDT
Relay Type	POWER/SIGNAL RELAY
Release Time	4 ms
Sealing	WATER PROOF
Terminal Finish	Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Length	0.0035 inch
Termination Type	SOLDER
Weight	1 g
