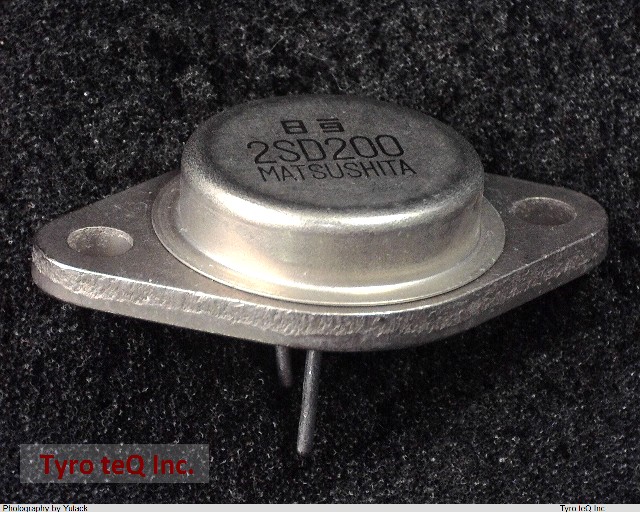

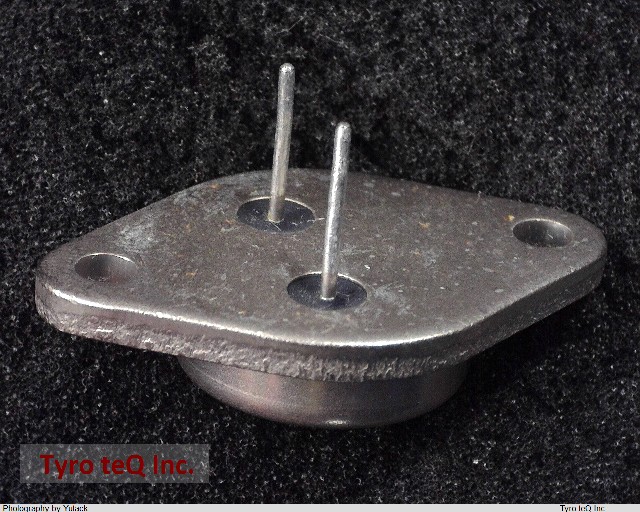

2SD200

Name: 2SD200
Brand: PANASONIC
SKU: 30262219-0000-0000-0000

2SD200 - PANASONIC の商品詳細ページです。

２営業日以内に回答いたします

NPN型バイポーラトランジスタ | 低周波用

2SD200 の詳細情報

型番	2SD200
メーカー	PANASONIC
種別	バイポーラトランジスタ
Case Connection	COLLECTOR
Collector Current-Max (IC)	0.7 A
Collector-base Capacitance-Max	30 pF
Collector-emitter Voltage-Max	32 V
Configuration	DARLINGTON
DC Current Gain-Min (hFE)	2.5
JEDEC-95 Code	TO-3
JESD-30 Code	O-MBFM-P2
JESD-609 Code	e0
Moisture Sensitivity Level	1
Number of Elements	1
Number of Terminals	2
Operating Temperature-Max	125 Cel
Package Body Material	METAL
Package Shape	RECTANGULAR
Package Style	FLANGE MOUNT Meter
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Polarity/Channel Type	NPN
Power Dissipation Ambient-Max	10 W
Power Dissipation-Max (Abs)	1.2 W
Qualification Status	Not Qualified
Sub Category	Other Transistors
Surface Mount	NO
Terminal Finish	TIN LEAD
Terminal Form	PIN/PEG
Terminal Position	BOTTOM
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Transistor Application	AMPLIFIER
Transistor Element Material	SILICON
Transition Frequency-Nom (fT)	80 MHz
VCEsat-Max	0.4 V
