XR2A-0821-N データシート

Name: XR2A-0821-N
Brand: OMRON
SKU: 340028170-0000-0000-0000

XR2A-0821-N - OMRON の商品詳細ページです。

２営業日以内に回答いたします

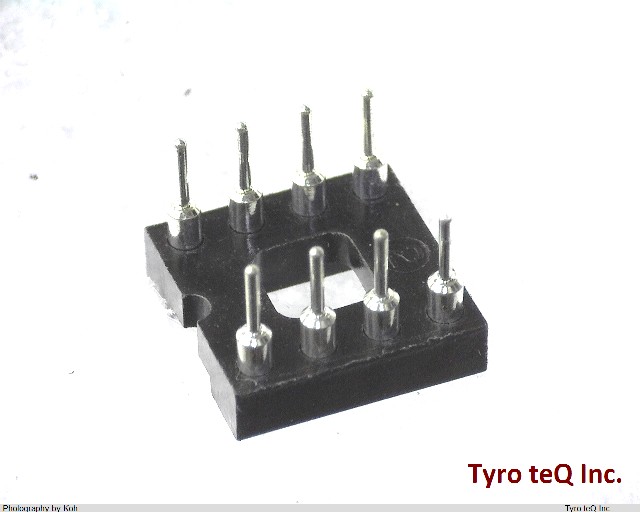

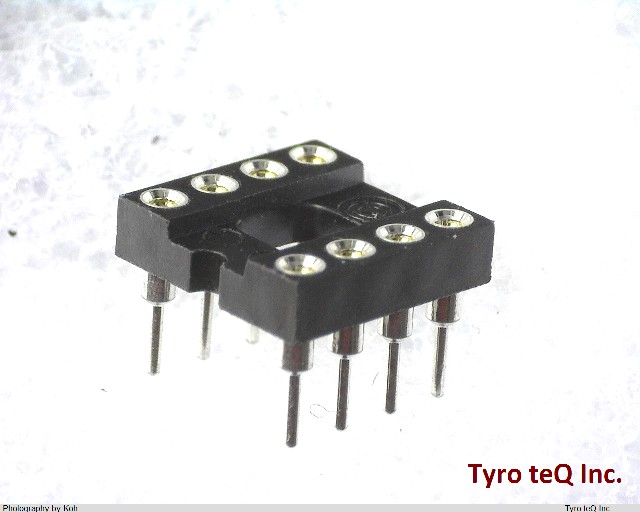

XR2A-0821-N の詳細情報

型番	XR2A-0821-N
メーカー	OMRON
データシート
Body Breadth	0.4 inch
Body Depth	0.098 inch
Body Length	0.4 inch
Contact Finish - Mating	GOLD FLASH
Contact Finish - Termination	GOLD FLASH
Contact Material	BERYLLIUM COPPER
Contact Style	RND PIN-SKT
Current Rating	1 A
Device Socket Type	IC SOCKET
Device Type Used On	DIP8
Dielectric Withstanding Voltage	1000VAC V
Housing Material	POLYBUTYLENE TEREPHTHALATE
Insulation Resistance	1000000000 ohm
JESD-609 Code	e4
Manufacturer Series	XR2A
Mating Contact Pitch	0.1 inch
Mounting Style	STRAIGHT
Number of Contacts	8
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	0.3 mm
Terminal Pitch	2.54 mm
Termination Type	SOLDER
