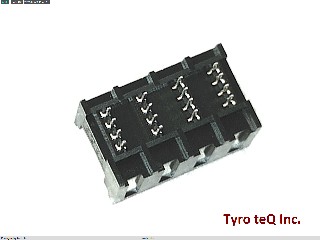

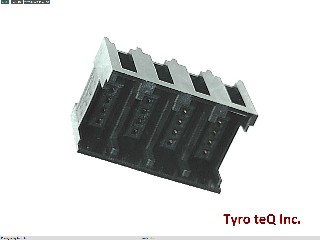

XN2D-4471 データシート

Name: XN2D-4471
Brand: OMRON
SKU: 340050351-0000-0000-0000

XN2D-4471 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

XN2D-4471 の詳細情報

型番	XN2D-4471
メーカー	OMRON
データシート
Body Breadth	1.02 inch
Body Depth	0.512 inch
Body/Shell Style	SOCKET
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	TIN OVER NICKEL
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Resistance	30 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1000VAC V
Durability	50 Cycles
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
MIL Conformance	NO
Manufacturer Series	XN2
Mating Contact Pitch	0.079 inch
Mating Contact Row Spacing	0.256 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	4
Number of Rows Loaded	4
Operating Temperature-Max	75 Cel
Operating Temperature-Min	-30 Cel
Option	GENERAL PURPOSE
PCB Contact Row Spacing	2.0066 mm
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.13 inch
Terminal Pitch	2 mm
Termination Type	SOLDER
Total Number of Contacts	16
UL Flammability Code	94V-0
