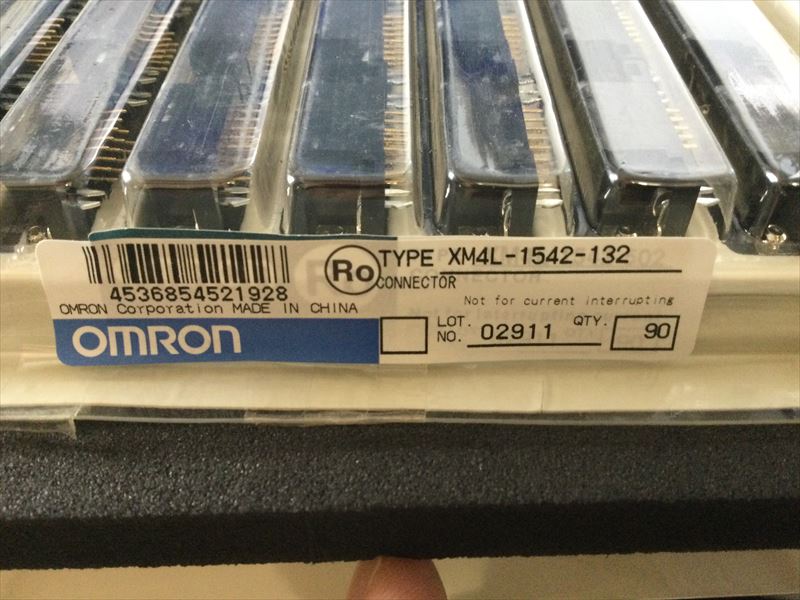

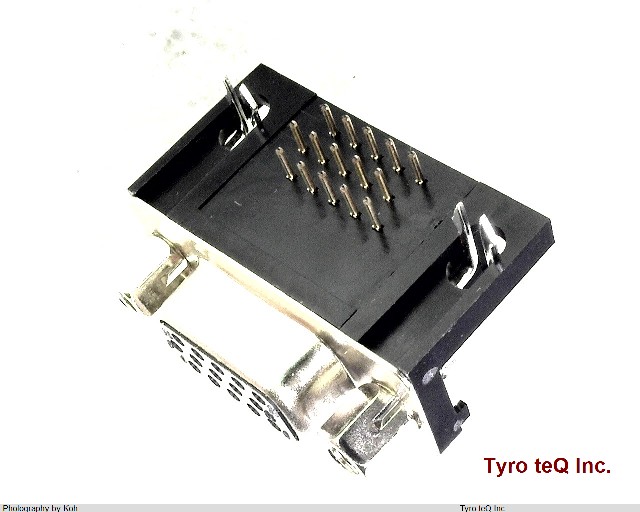

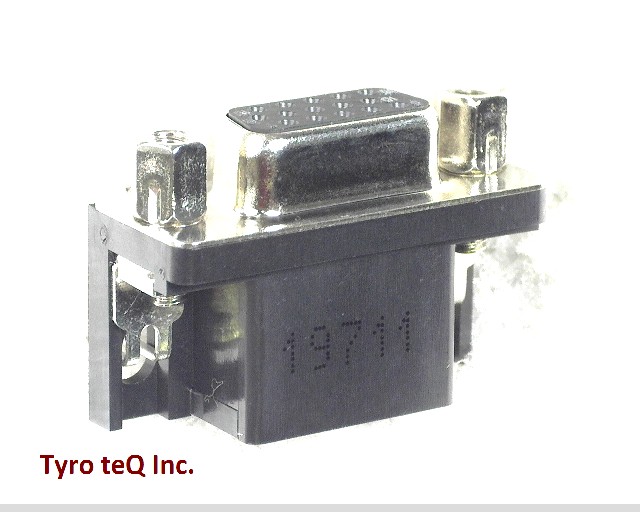

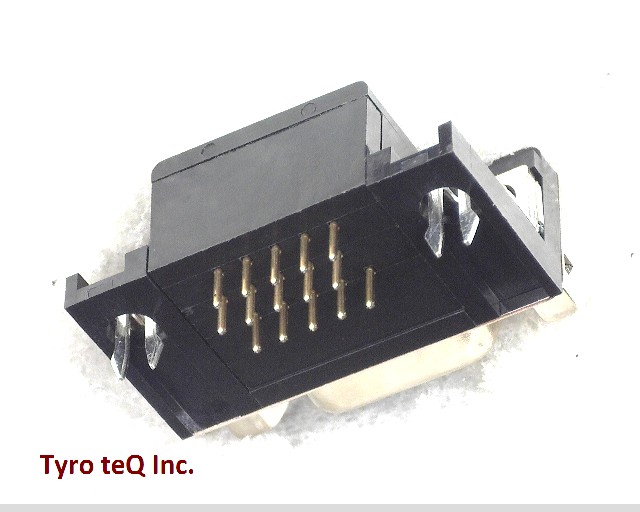

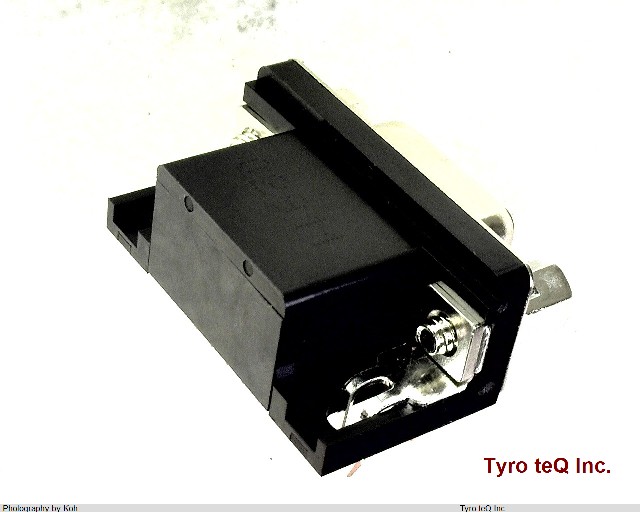

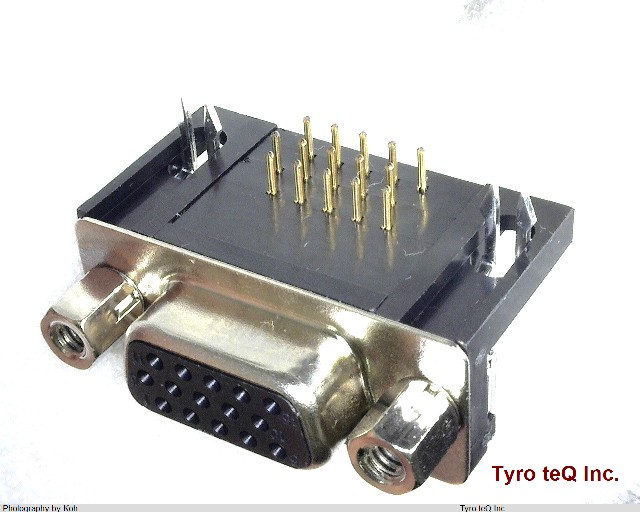

XM4L-1542-132 データシート

Name: XM4L-1542-132
Brand: OMRON
SKU: 340012375-0000-0000-0000

XM4L-1542-132 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

XM4L-1542-132 の詳細情報

型番	XM4L-1542-132
メーカー	OMRON
データシート
Additional Feature	SHIELDED
Body Breadth	0.494 inch
Body Depth	0.646 inch
Body Length	1.213 inch
Body/Shell Style	RECEPTACLE
Connector Type	D SUBMINIATURE CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Gold Flash (Au)
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	STAGGERED
Contact Resistance	20 mohm
Contact Style	RND PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	1000VAC V
Empty Shell	NO
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL Conformance	NO
Mating Contact Pitch	0.09 inch
Mating Contact Row Spacing	0.078 inch
Mixed Contacts	NO
Mounting Option 1	#4-40
Mounting Option 2	THREADED
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD AND PANEL
Number Of PCB Rows	3
Number of Rows Loaded	3
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-25 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	STAGGERED
PCB Contact Row Spacing	2.54 mm
Plating Thickness	FLASH inch
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	TIN
Shell Material	COPPER ALLOY
Shell Size	2/A
Sub Category	D Type Connectors
Terminal Length	0.118 inch
Terminal Pitch	2.286 mm
Termination Type	SOLDER
Total Number of Contacts	15
UL Flammability Code	94V-0
