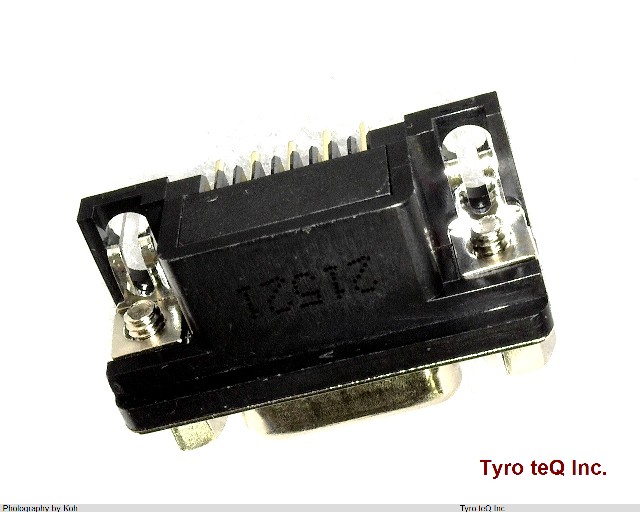

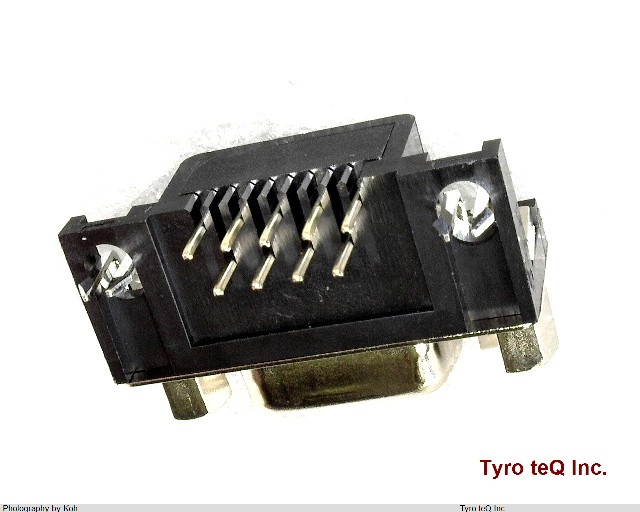

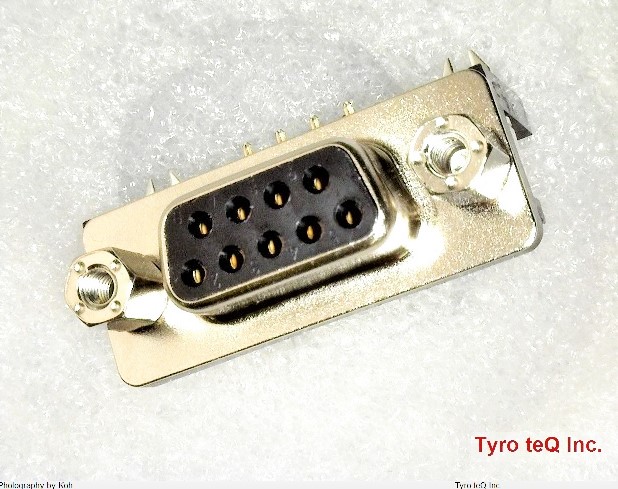

XM3B-0942-112L データシート

Name: XM3B-0942-112L
Brand: OMRON
SKU: 340030305-0000-0000-0000

XM3B-0942-112L - OMRON の商品詳細ページです。

２営業日以内に回答いたします

XM3B-0942-112L の詳細情報

型番	XM3B-0942-112L
メーカー	OMRON
データシート
Body Breadth	0.492 inch
Body Length	1.213 inch
Body/Shell Style	RECEPTACLE
Connector Type	D SUBMINIATURE CONNECTOR
Contact Finish - Mating	GOLD FLASH
Contact Finish - Termination	GOLD FLASH
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	STAGGERED
Contact Resistance	20 mohm
Contact Style	RND PIN-SKT
Dielectric Withstanding Voltage	1000VAC V
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e4
Manufacturer Series	XM3-LS
Mating Contact Pitch	0.108 inch
Mating Contact Row Spacing	0.112 inch
Mounting Option 1	M2.6X0.45
Mounting Option 2	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-25 Cel
PCB Contact Pattern	STAGGERED
PCB Contact Row Spacing	1.905 mm
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Finish	NICKEL
Shell Material	STEEL
Sub Category	D Type Connectors
Terminal Length	0.102 inch
Terminal Pitch	2.7432 mm
Termination Type	SOLDER
Total Number of Contacts	9
