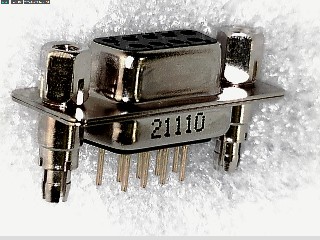

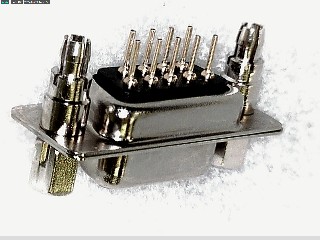

XM2F-0940-132L データシート

Name: XM2F-0940-132L
Brand: OMRON
SKU: 340050005-0000-0000-0000

XM2F-0940-132L - OMRON の商品詳細ページです。

２営業日以内に回答いたします

XM2F-0940-132L の詳細情報

型番	XM2F-0940-132L
メーカー	OMRON
データシート
Body Breadth	0.494 inch
Body Depth	0.276 inch
Body Length	1.213 inch
Body/Shell Style	RECEPTACLE
Connector Type	D SUBMINIATURE CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	GOLD FLASH
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	STAGGERED
Contact Resistance	20 mohm
Contact Style	RND PIN-SKT
Dielectric Withstanding Voltage	1000VAC V
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e4
Mating Contact Pitch	0.109 inch
Mating Contact Row Spacing	0.112 inch
Mounting Option 1	#4-40
Mounting Option 2	THREADED
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-25 Cel
PCB Contact Pattern	STAGGERED
PCB Contact Row Spacing	2.8448 mm
Plating Thickness	FLASH inch
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Shell Material	STEEL
Sub Category	D Type Connectors
Terminal Length	0.126 inch
Terminal Pitch	2.7686 mm
Termination Type	SOLDER
Total Number of Contacts	9
