XH3A-4041-4A データシート

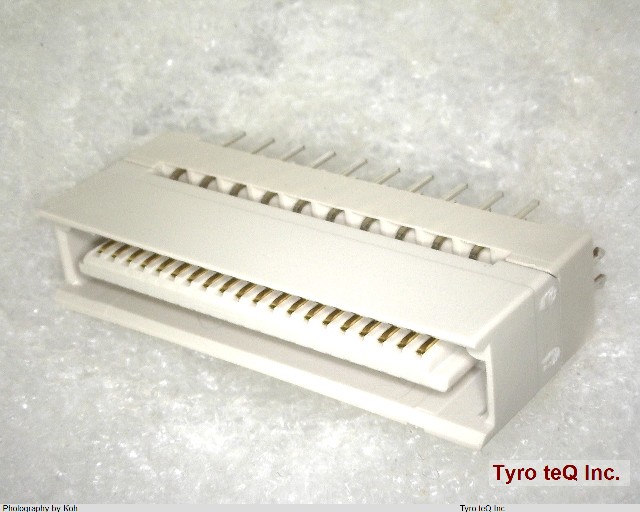

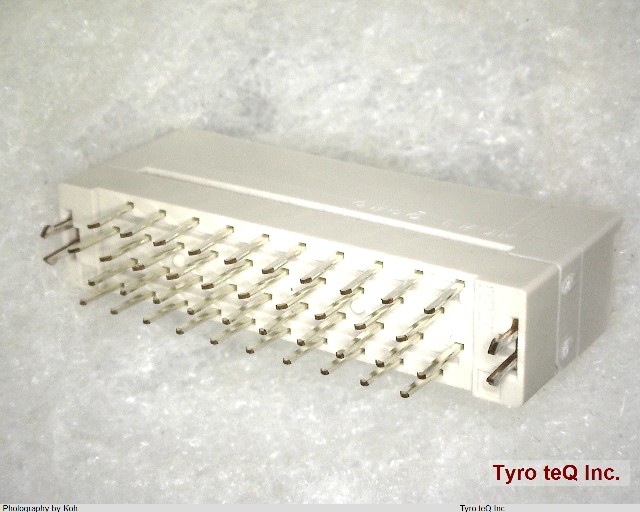

Name: XH3A-4041-4A
Brand: OMRON
SKU: 340012175-0000-0000-0000

XH3A-4041-4A - OMRON の商品詳細ページです。

２営業日以内に回答いたします

XH3A-4041-4A の詳細情報

型番	XH3A-4041-4A
メーカー	OMRON
データシート
Board Mounting Option	SPLIT BOARD LOCK
Body/Shell Style	PLUG
Connector Type	BOARD STACKING CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	30 mohm
Dielectric Withstanding Voltage	650VAC V
Durability	400 Cycles
Insertion Force-Max	.7784 N
Insulation Resistance	1000000000 ohm
Insulator Color	GRAY
Insulator Material	POLYBUTYLENE TEREPHTHALATE
Mating Contact Pitch	0.05 inch
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	4
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
PCB Contact Pattern	STAGGERED
PCB Contact Row Spacing	1.905 mm
Rated Current (Signal)	0.5 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.118 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	40
Withdrawl Force-Min	.10008 N
