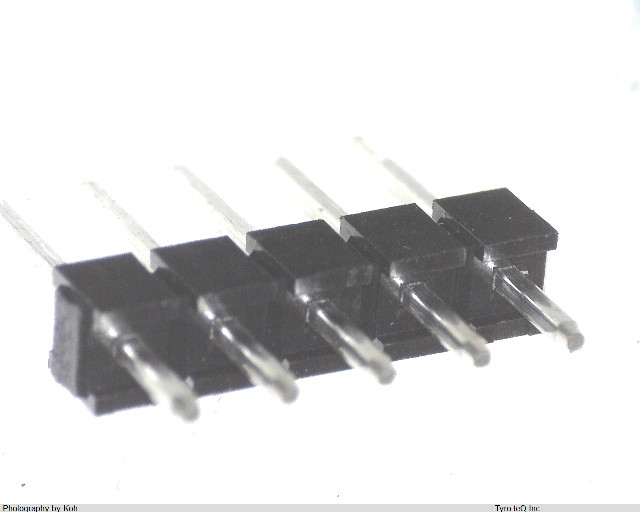

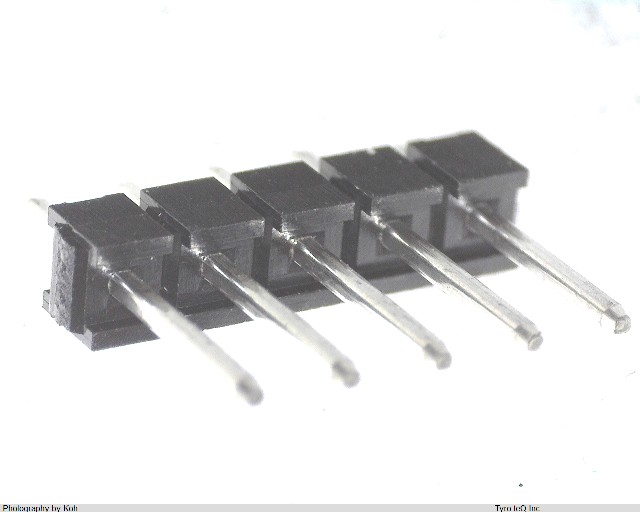

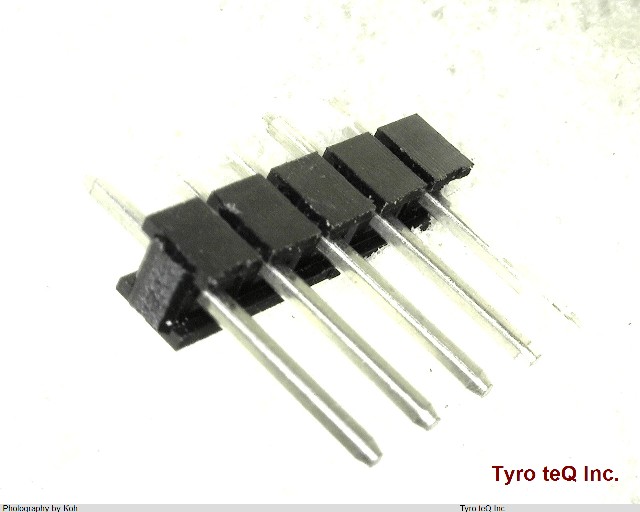

XG8V-0541 データシート

Name: XG8V-0541
Brand: OMRON
SKU: 340031910-0000-0000-0000

XG8V-0541 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

XG8V-0541 の詳細情報

型番	XG8V-0541
メーカー	OMRON
データシート
Body Breadth	0.11 inch
Body Depth	0.098 inch
Body Length	0.5 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	GOLD (6)
Contact Finish - Termination	TIN (79)
Contact Gender	MALE
Contact Material	BRASS
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
Dielectric Withstanding Voltage	650VAC V
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e3
Mating Contact Pitch	0.1 inch
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
PCB Contact Pattern	RECTANGULAR
Plating Thickness	79u inch
Rated Current (Signal)	3 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.118 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	5
