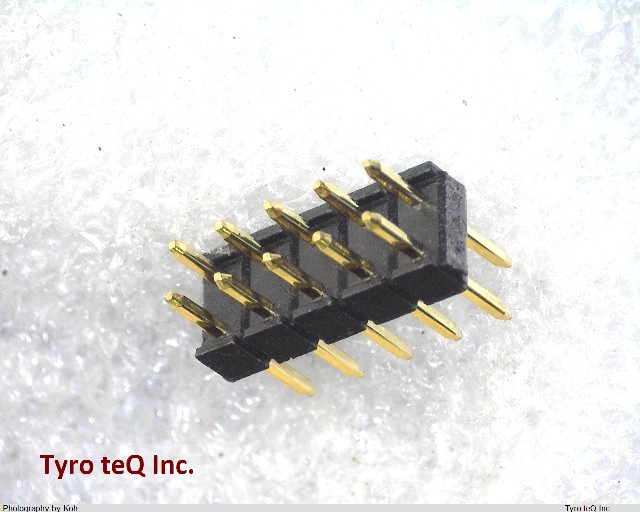

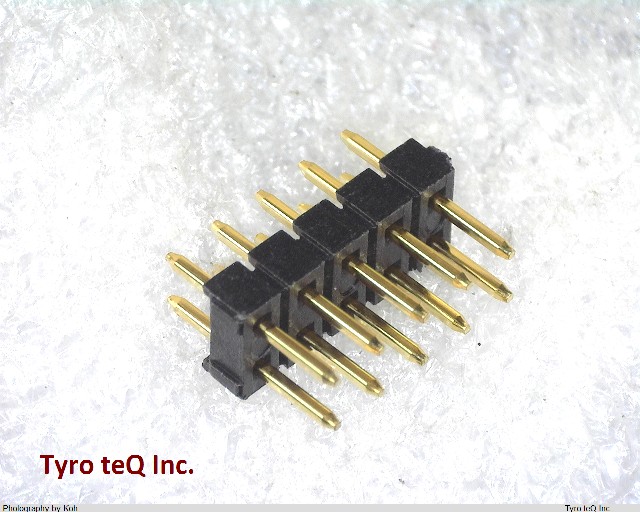

XG8T-1031 データシート

Name: XG8T-1031
Brand: OMRON
SKU: 340012109-0000-0000-0000

XG8T-1031 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

XG8T-1031 の詳細情報

型番	XG8T-1031
メーカー	OMRON
データシート
Body Breadth	0.197 inch
Body Depth	0.098 inch
Body/Shell Style	PLUG
Connector Type	INTERCONNECTION DEVICE
Contact Finish - Mating	NOT APPLICABLE
Contact Gender	MALE
Contact Material	NOT APPLICABLE
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
Dielectric Withstanding Voltage	750VAC V
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer Series	XG8T
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2.54 mm
Rated Current (Signal)	2 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Length	0.118 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	10
