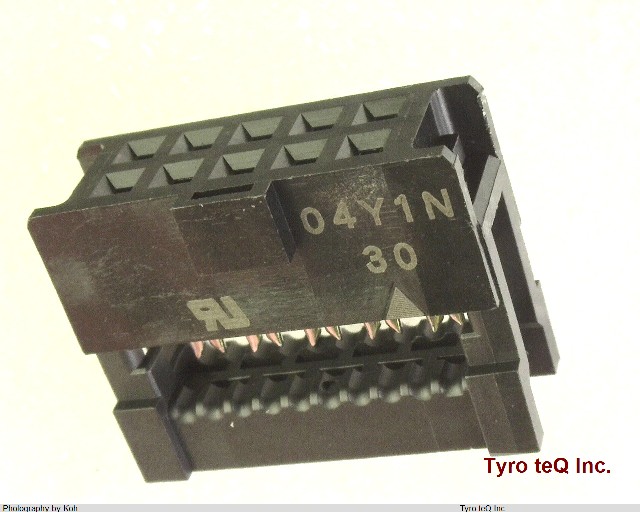

XG4M-1030 データシート

Name: XG4M-1030
Brand: OMRON
SKU: 340012004-0000-0000-0000

XG4M-1030 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

XG4M-1030 の詳細情報

型番	XG4M-1030
メーカー	OMRON
データシート
Additional Feature	STANDARD: MIL-C-83503
Body Breadth	0.24 inch
Body Depth	0.42 inch
Body Length	0.68 inch
Body/Shell Style	SOCKET
Connector Type	BOARD CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	TIN (79)
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
DIN Conformance	NO
Dielectric Withstanding Voltage	500VAC V
Durability	50 Cycles
Filter Feature	NO
IEC Conformance	NO
Insulation Resistance	1000000000 ohm
JESD-609 Code	e3
MIL Conformance	YES
Manufacturer Series	XG4M
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Type	CABLE
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
Plating Thickness	6u inch
Polarization Key	POLARIZED KEY
Rated Current (Signal)	1 A
Reliability	MIL-C-83503
Sub Category	Headers and Edge Type Connectors
Termination Type	IDC
Total Number of Contacts	10
UL Flammability Code	94V-0
