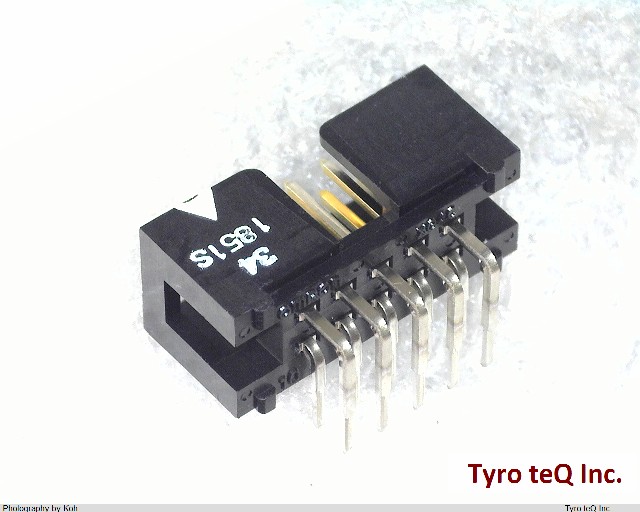

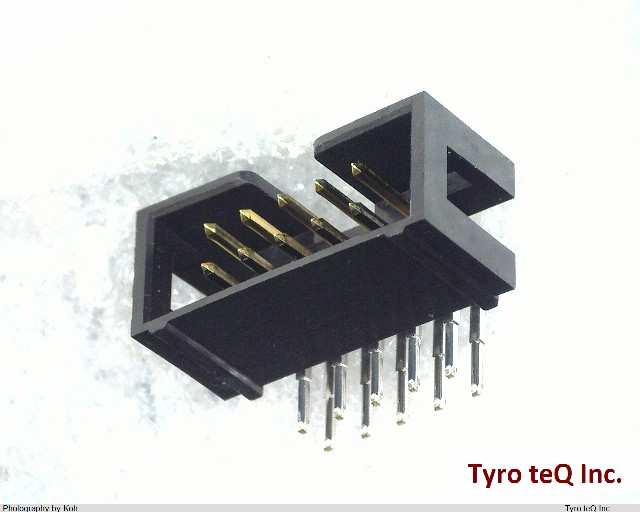

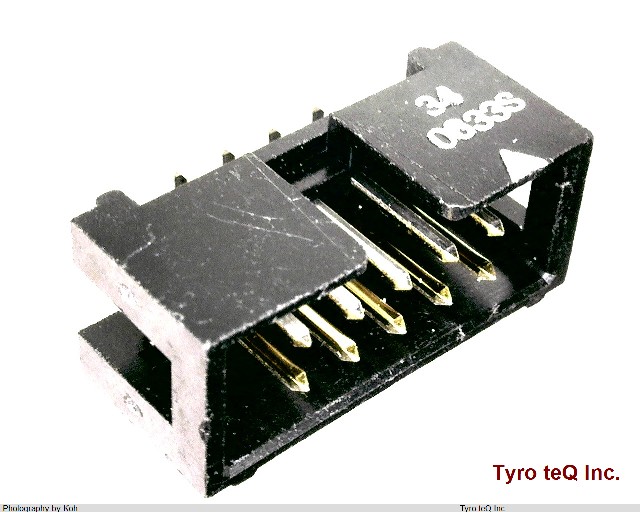

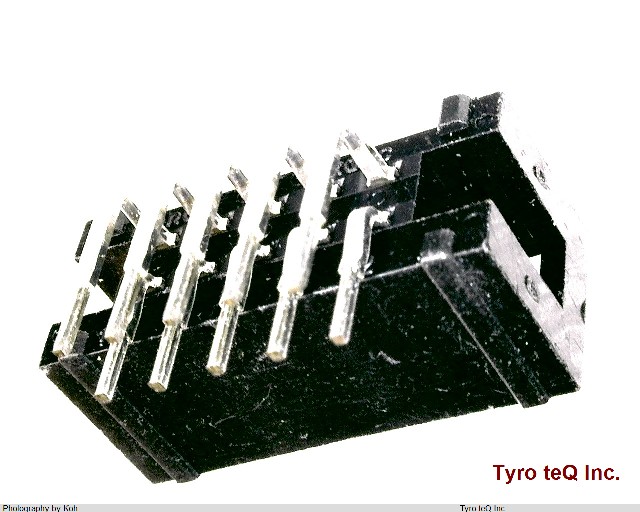

XG4C-1034 データシート

Name: XG4C-1034
Brand: OMRON
SKU: 340011934-0000-0000-0000

XG4C-1034 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

XG4C-1034 の詳細情報

型番	XG4C-1034
メーカー	OMRON
データシート
Additional Feature	CONTACT FINISH MATING: GOLD
Body Breadth	0.335 inch
Body Depth	0.466 inch
Body Length	0.79 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Tin (Sn)
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	RND PIN-SKT
Dielectric Withstanding Voltage	500VAC V
Durability	50 Cycles
Filter Feature	NO
Insulation Resistance	1000000000 ohm
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e3
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mating Information	MULTIPAL MATING PARTS AVAILBLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2.54 mm
Plating Thickness	6u inch
Polarization Key	POLARIZED SLOT
Rated Current (Signal)	3 A
Reference Standard	CSA; MIL
Terminal Length	0.126 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	10
UL Flammability Code	94V-0
