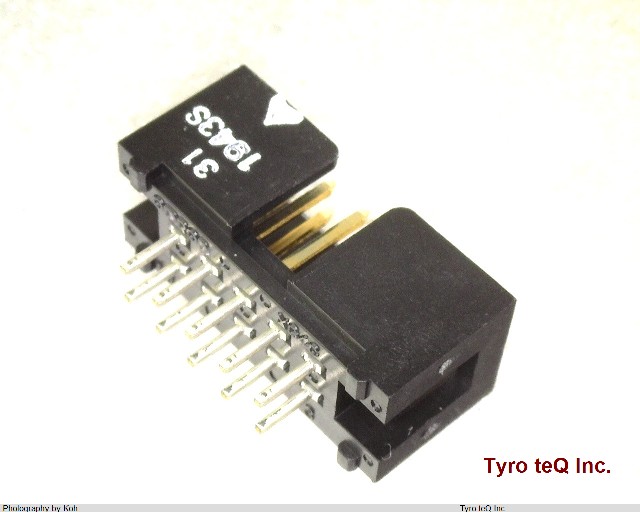

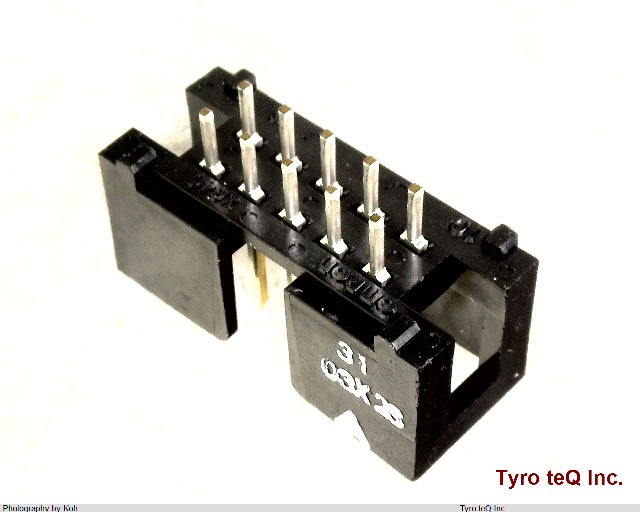

XG4C-1031 データシート

Name: XG4C-1031
Brand: OMRON
SKU: 340011933-0000-0000-0000

XG4C-1031 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

XG4C-1031 の詳細情報

型番	XG4C-1031
メーカー	OMRON
データシート
Additional Feature	POLARIZED; SHROUDED
Body Breadth	0.335 inch
Body Depth	0.354 inch
Body Length	0.787 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Tin (Sn)
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
Dielectric Withstanding Voltage	500VAC V
Filter Feature	NO
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e3
Mating Contact Pitch	.100 inch
Mating Contact Row Spacing	.100 inch
Mating Information	MULTIPLE MATING PARTS AVAILABE
Mixed Contacts	NO
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2.54 mm
Rated Current (Signal)	1 A
Reference Standard	UL
Terminal Length	0.126 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	9
UL Flammability Code	94V-0
