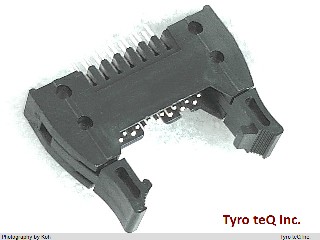

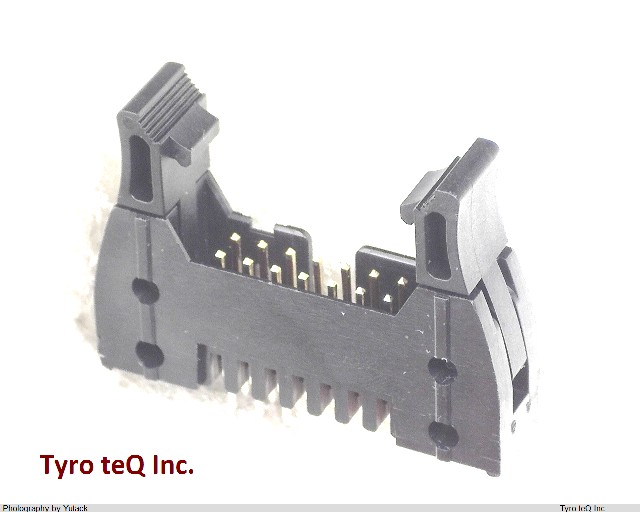

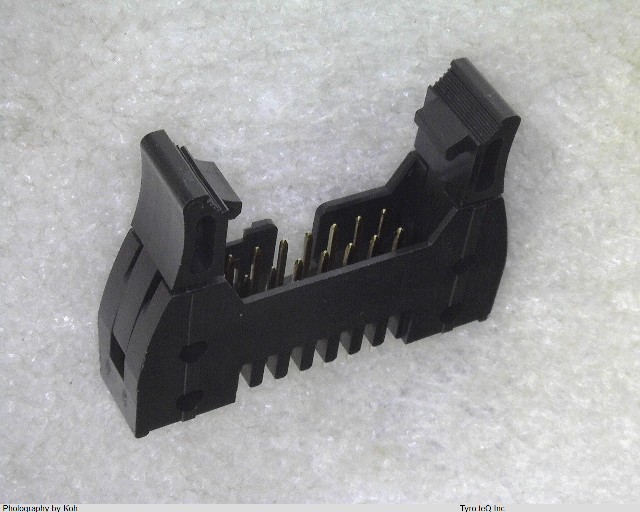

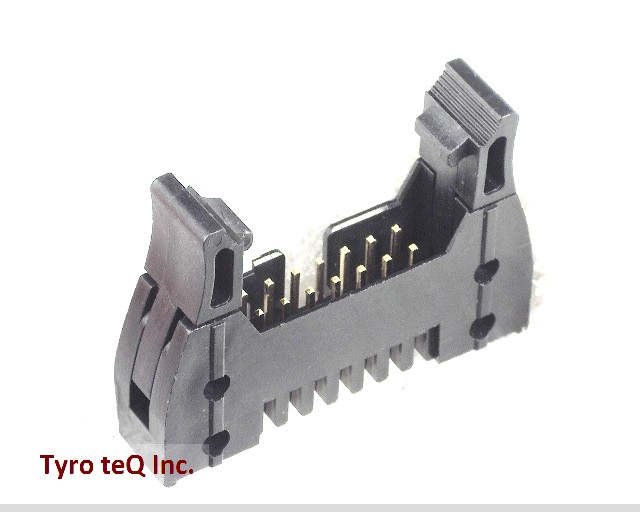

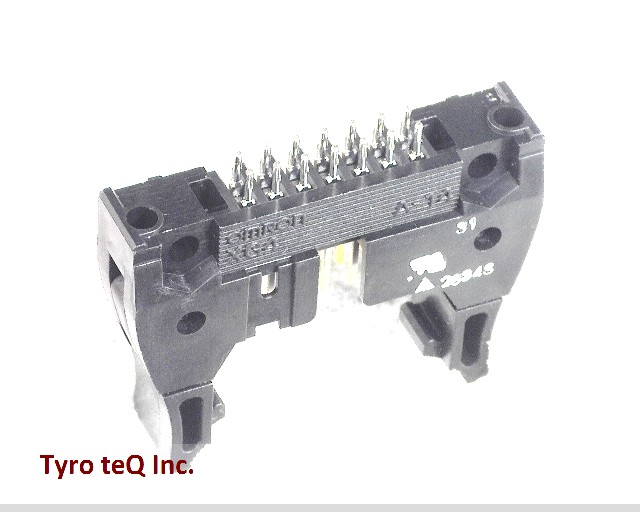

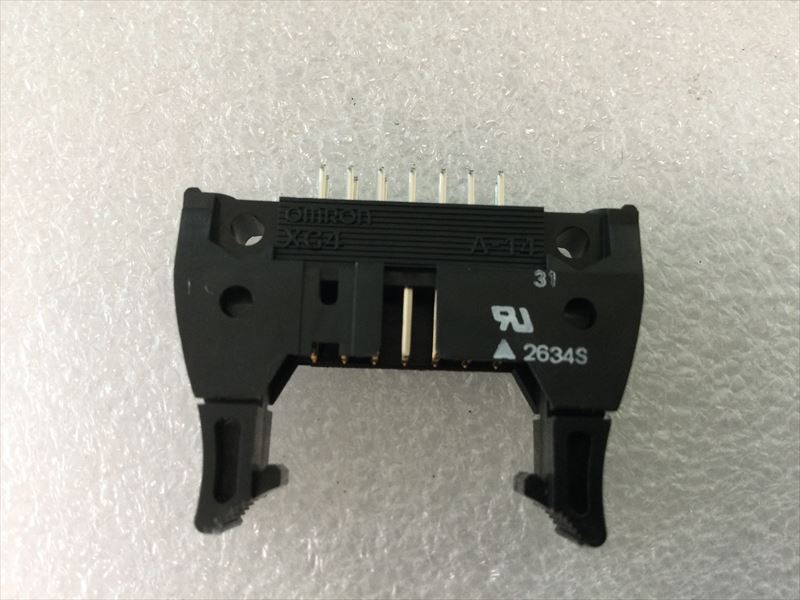

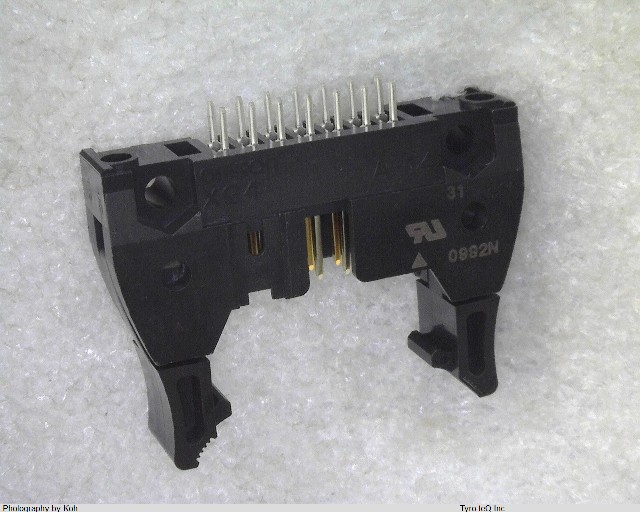

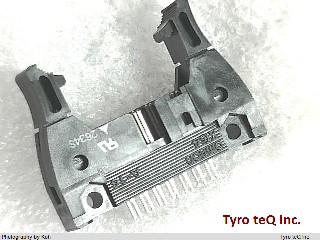

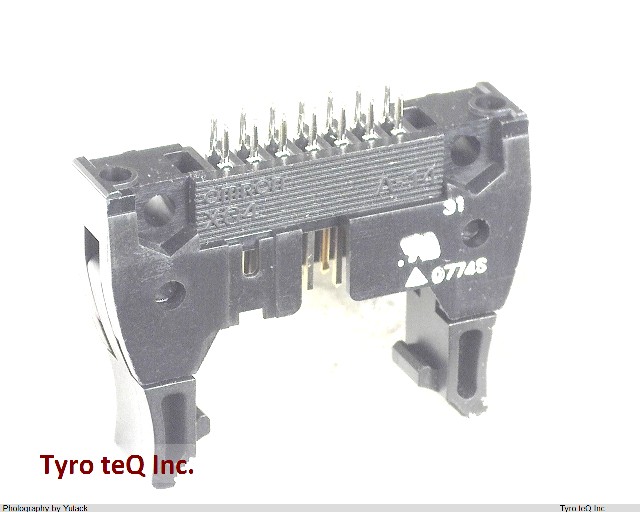

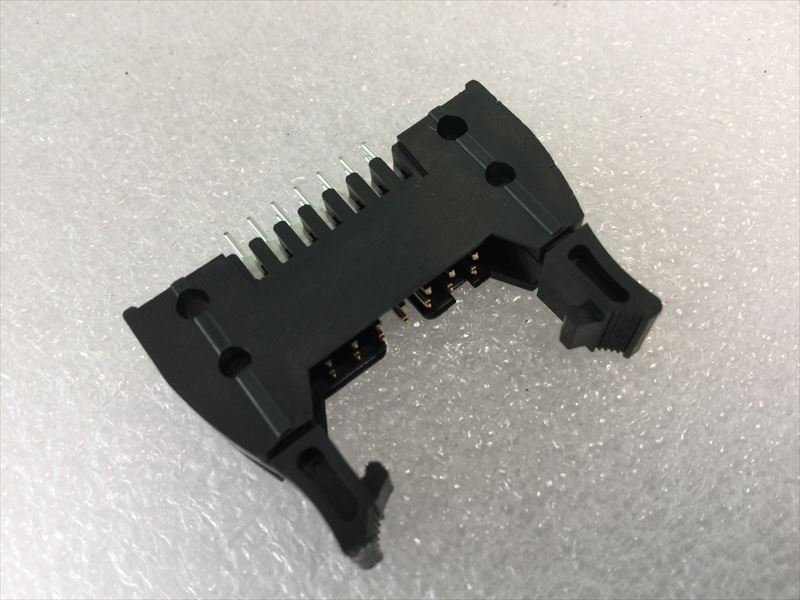

XG4A-1431 データシート

Name: XG4A-1431
Brand: OMRON
SKU: 340011873-0000-0000-0000

XG4A-1431 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

XG4A-1431 の詳細情報

型番	XG4A-1431
メーカー	OMRON
データシート
Additional Feature	STANDARD: MIL-C-83503
Body Breadth	0.335 inch
Body Depth	1.063 inch
Body Length	1.46 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Design	PREASSEM CONN
Contact Finish - Mating	NOT SPECIFIED
Contact Finish - Termination	Tin (Sn)
Contact Gender	MALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
Dielectric Withstanding Voltage	500VAC V
Durability	50 Cycles
Filter Feature	NO
Insertion Force-Max	1.96 N
Insulation Resistance	1000000000 ohm
Insulator Color	BLACK
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e3
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2.54 mm
Plating Thickness	6u inch
Polarization Key	POLARIZED SLOT
Rated Current (Signal)	3 A
Reference Standard	MIL; UL
Terminal Length	0.126 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	14
UL Flammability Code	94V-0
Withdrawl Force-Min	0.39 N
