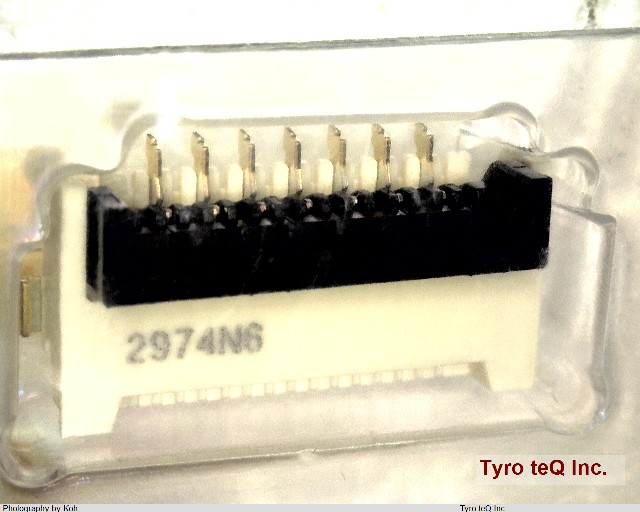

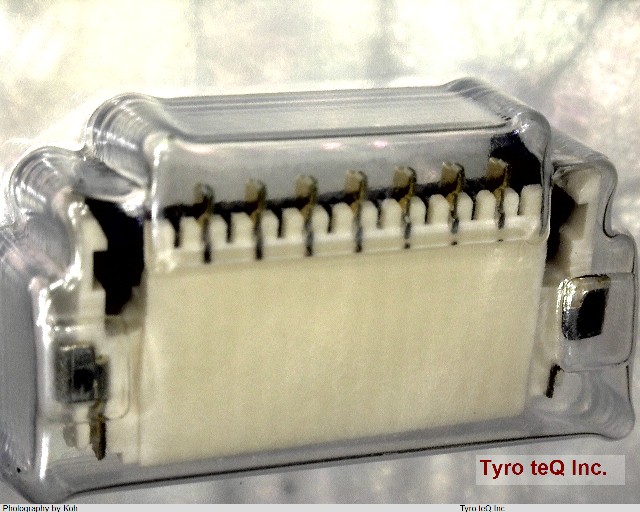

XF3M(1)-0715-1B

Name: XF3M(1)-0715-1B
Brand: OMRON
SKU: 400048157-0000-0000-0000

XF3M(1)-0715-1B - OMRON の商品詳細ページです。

２営業日以内に回答いたします

XF3M(1)-0715-1B の詳細情報

型番	XF3M(1)-0715-1B
メーカー	OMRON
Board Mounting Option	SOLDER HOLDING POSTS
Body Breadth	0.079 inch
Body Depth	0.224 inch
Body Length	0.417 inch
Connector Type	FFC/FPC CONNECTOR
Contact Finish - Mating	NOT SPECIFIED
Contact Gender	FEMALE
Contact Material	NOT SPECIFIED
Contact Pattern	RECTANGULAR
Contact Resistance	50 mohm
Contact Style	BELLOWED TYPE
Dielectric Withstanding Voltage	250VAC V
Durability	20 Cycles
Filter Feature	NO
Insulation Resistance	100000000 ohm
Insulator Color	NATURAL
Insulator Material	LIQUID CRYSTAL POLYMER
Mating Contact Pitch	0.039 inch
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	1
Number of Rows Loaded	1
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-30 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
Plating Thickness	FLASH inch
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	0.5 A
Reference Standard	UL
Reliability	COMMERCIAL
Sub Category	Headers and Edge Type Connectors
Terminal Pitch	.9906 mm
Termination Type	SURFACE MOUNT
Total Number of Contacts	7
UL Flammability Code	94V-0
