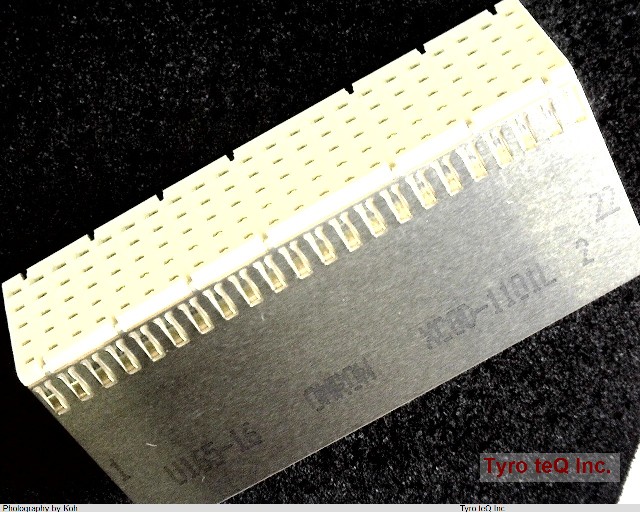

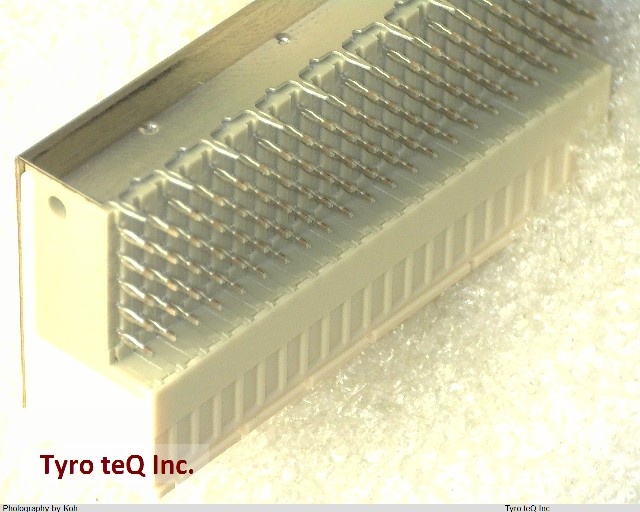

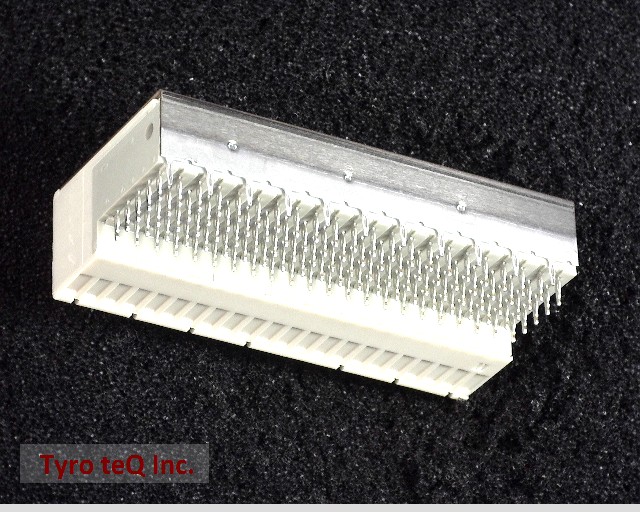

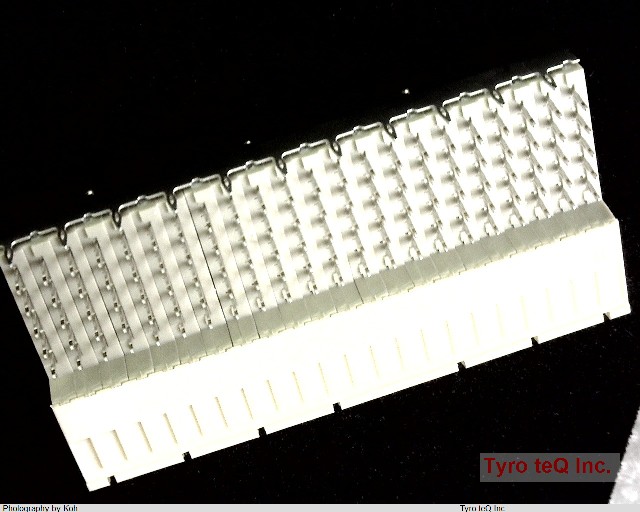

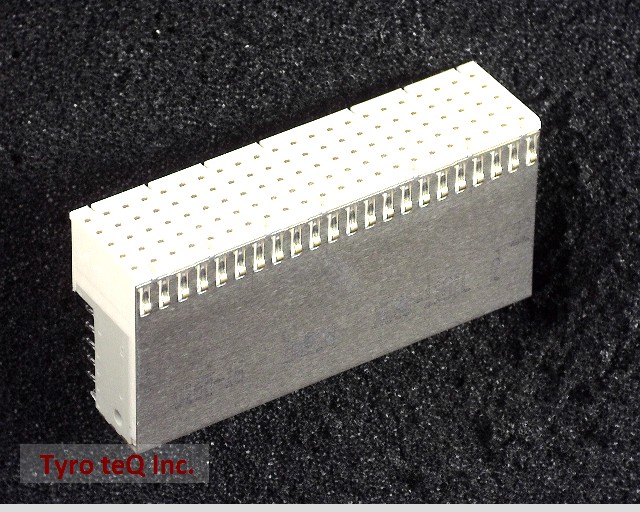

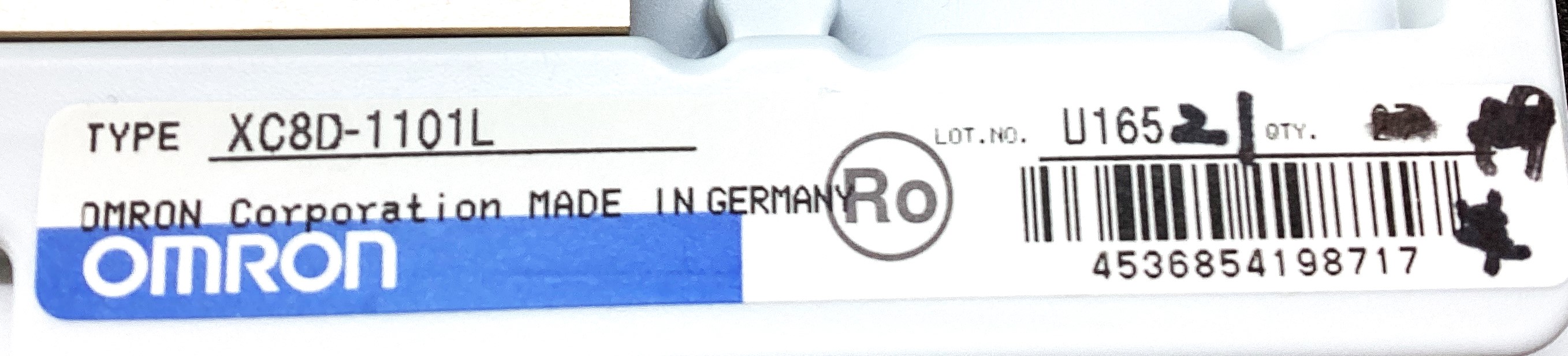

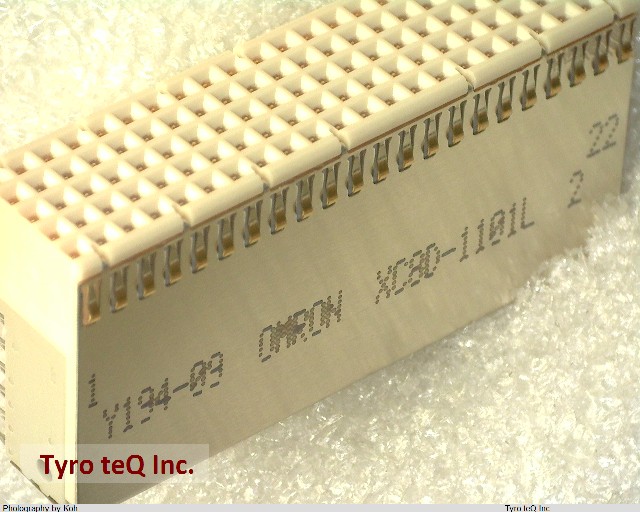

XC8D-1101L データシート

Name: XC8D-1101L
Brand: OMRON
SKU: 340026038-0000-0000-0000

XC8D-1101L - OMRON の商品詳細ページです。

14時間2分後以内に見積もり依頼を頂ければ、
05月20日(月) 9:00 までに見積もり回答いたします。

検討リストに追加する

XC8D-1101L の詳細情報

型番	XC8D-1101L
メーカー	OMRON
データシート
Body Breadth	0.447 inch
Body Depth	0.819 inch
Body Length	1.73 inch
Body/Shell Style	SOCKET
Connector Type	TWO PART BOARD CONNECTOR
Contact Gender	FEMALE
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
Dielectric Withstanding Voltage	750VAC V
Durability	250 Cycles
Filter Feature	NO
Insertion Force-Max	0.75 N
Insulation Resistance	10000000000 ohm
Mating Contact Pitch	0.078 inch
Mating Contact Row Spacing	0.078 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	RIGHT ANGLE
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	6
Number of Rows Loaded	6
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2 mm
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	1 A
Reference Standard	UL
Terminal Length	0.134 inch
Terminal Pitch	2 mm
Termination Type	PRESS FIT
Total Number of Contacts	110
Withdrawl Force-Min	0.15 N
