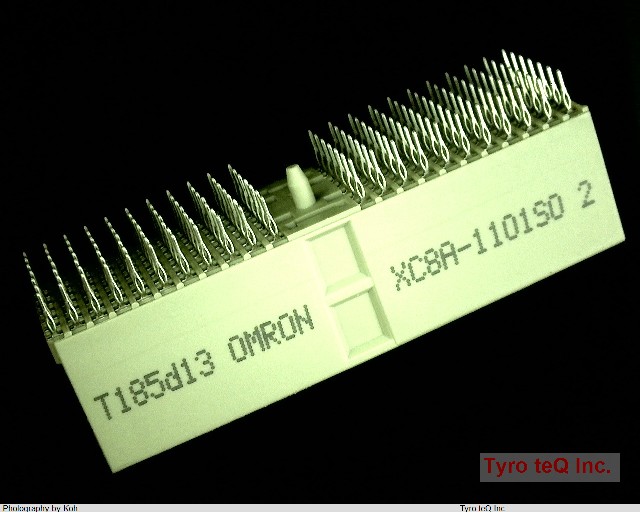

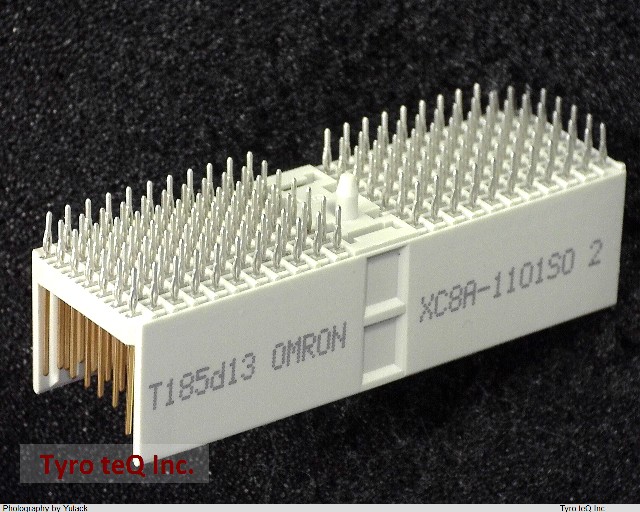

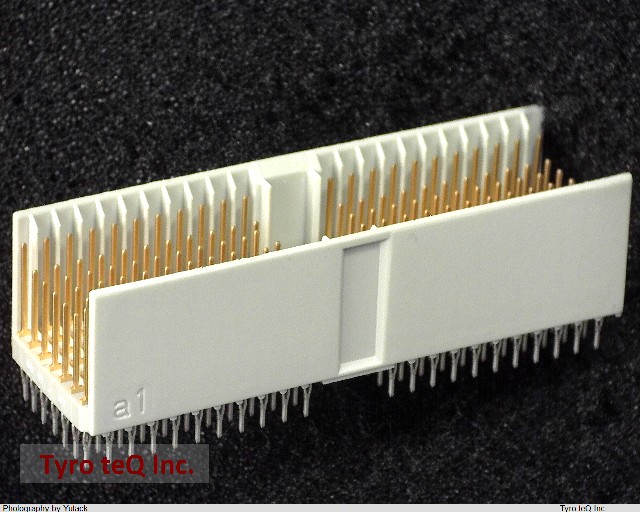

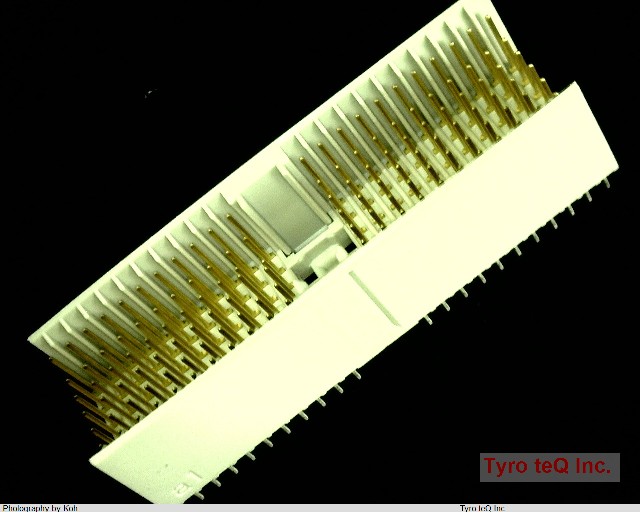

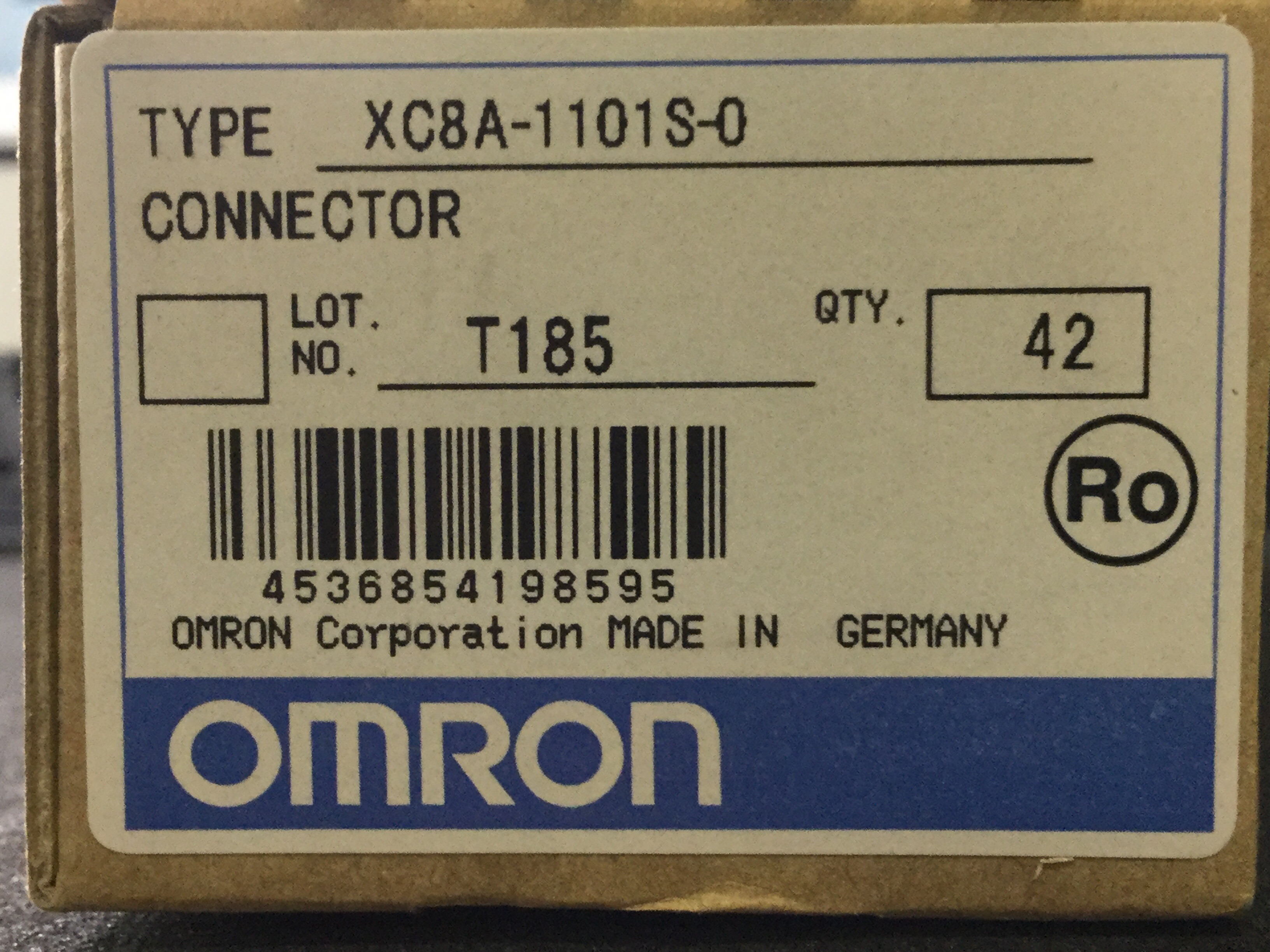

Name: XC8A-1101S-0
Brand: OMRON
SKU: 340050022-0000-0000-0000

XC8A-1101S-0 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

XC8A-1101S-0 の詳細情報

型番	XC8A-1101S-0
メーカー	OMRON
データシート
Additional Feature	GROUND SHIELD CONTACTS: 44 ALSO AVAILABLE IN 2 ROWS
Board Mounting Option	PEG
Body Breadth	0.606 inch
Body Depth	0.528 inch
Body Length	1.969 inch
Body/Shell Style	PLUG
Connector Type	BOARD CONNECTOR
Contact Gender	MALE
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Contact Style	SQ PIN-SKT
Dielectric Withstanding Voltage	750VAC V
Durability	250 Cycles
Filter Feature	NO
Insertion Force-Max	0.75 N
Insulation Resistance	10000000000 ohm
Insulator Color	GRAY
Insulator Material	GLASS FILLED POLYCARBONATE
Mating Contact Pitch	0.079 inch
Mating Contact Row Spacing	0.079 inch
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Number Of Connectors	ONE
Number Of PCB Rows	7
Number of Rows Loaded	5
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2 mm
Rated Current (Signal)	1 A
Reference Standard	CUL; UL
Terminal Length	0.146 inch
Terminal Pitch	2 mm
Termination Type	PRESS FIT
Total Number of Contacts	110
UL Flammability Code	94V-0
Withdrawl Force-Min	0.15 N
