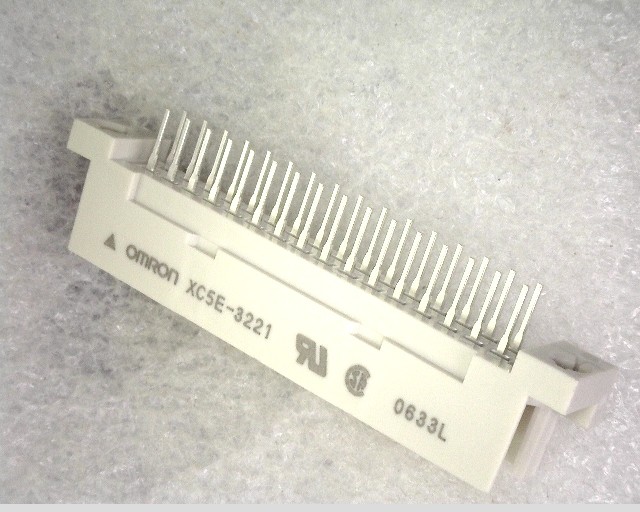

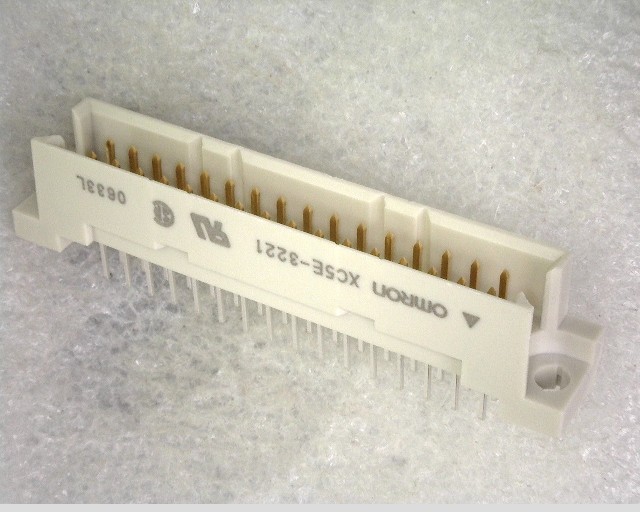

XC5E-3221 データシート

Name: XC5E-3221
Brand: OMRON
SKU: 340011528-0000-0000-0000

XC5E-3221 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

XC5E-3221 の詳細情報

型番	XC5E-3221
メーカー	OMRON
データシート
Additional Feature	STANDARD: UL, CONTACT FINISH MATING: GOLD OVER NICKEL, CONTACT FINISH TERMINATION: TIN (79)
Board Mounting Option	HOLE .099-.111
Body Breadth	0.339 inch
Body Depth	0.457 inch
Body Length	2.13 inch
Body/Shell Style	PLUG
Connector Type	BOARD EURO CONNECTOR
Contact Finish - Mating	GOLD (16)
Contact Finish - Termination	Tin (Sn)
Contact Gender	MALE
Contact Material	BRASS
Contact Pattern	RECTANGULAR
Contact Resistance	20 mohm
Dielectric Withstanding Voltage	1000VAC V
Durability	200 Cycles
Filter Feature	NO
Insertion Force-Max	0.59 N
Insulation Resistance	1000000000000 ohm
Insulator Color	GRAY
Insulator Material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
JESD-609 Code	e3
Mating Contact Pitch	0.1 inch
Mating Contact Row Spacing	0.1 inch
Mating Information	MULTIPAL MATING PARTS AVAILBLE
Mixed Contacts	NO
Mounting Option 1	LOCKING
Mounting Style	STRAIGHT
Mounting Type	BOARD
Name of Rows Loaded	A,B
Number Of Connectors	ONE
Number Of PCB Rows	2
Number of Rows Loaded	2
Operating Temperature-Max	125 Cel
Operating Temperature-Min	-55 Cel
Option	GENERAL PURPOSE
PCB Contact Pattern	RECTANGULAR
PCB Contact Row Spacing	2.54 mm
Plating Thickness	16u inch
Polarization Key	POLARIZED HOUSING
Rated Current (Signal)	2 A
Reference Standard	CSA; DIN
Terminal Length	0.157 inch
Terminal Pitch	2.54 mm
Termination Type	SOLDER
Total Number of Contacts	32
UL Flammability Code	94V-0
Withdrawl Force-Min	0.15 N
