MY4N-D2 DC12 データシート

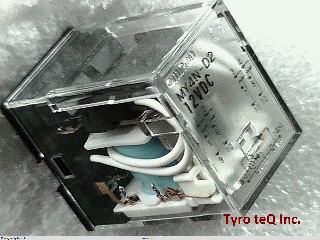

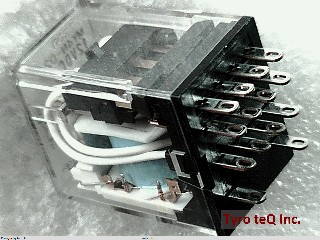

Name: MY4N-D2 DC12
Brand: OMRON
SKU: 230331263-0000-0000-0000

MY4N-D2 DC12 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

MY4N-D2 DC12 の詳細情報

型番	MY4N-D2 DC12
メーカー	OMRON
データシート
Additional Feature	BUILT IN DIODE, BUILT IN INDICATOR, SOCKET MOUNTABLE
Body Breadth	21.5 inch
Body Height	36 mm
Body Length or Diameter	28 mm
Coil Current(DC)-Max	0.073 A
Coil Operate Voltage(DC)	9.6 V
Coil Power	900 mW
Coil Release Voltage(DC)	1.2 V
Coil Resistance	160 ohm
Coil Voltage(DC)-Max	12 V
Coil/Input Supply Type	DC
Contact AC Max Rating R Load	3A@250VAC
Contact Current(AC)-Max	3 A
Contact Current(DC)-Max	3 A
Contact DC Max Rating R Load	3A@125VDC
Contact Voltage(AC)-Max	250 V
Contact Voltage(DC)-Max	30 V
Contact/Output Supply Type	AC/DC
Electrical Life	200000 Cycle(s)
JESD-609 Code	e4
Mounting Feature	PANEL MOUNT
Operate Time	20 ms
Operating Temperature-Max	60 Cel
Operating Temperature-Min	-55 Cel
Physical Dimension	28mm x 21.5mm x 36mm
Reference Standard	CE; CSA; IMQ; LR; SEV; UL; VDE
Relay Action	MOMENTARY
Relay Function	4PDT
Relay Type	POWER/SIGNAL RELAY
Release Time	20 ms
Terminal Finish	Gold (Au)
Termination Type	SNAP-ON
