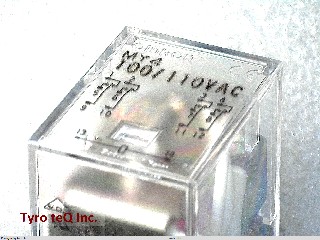

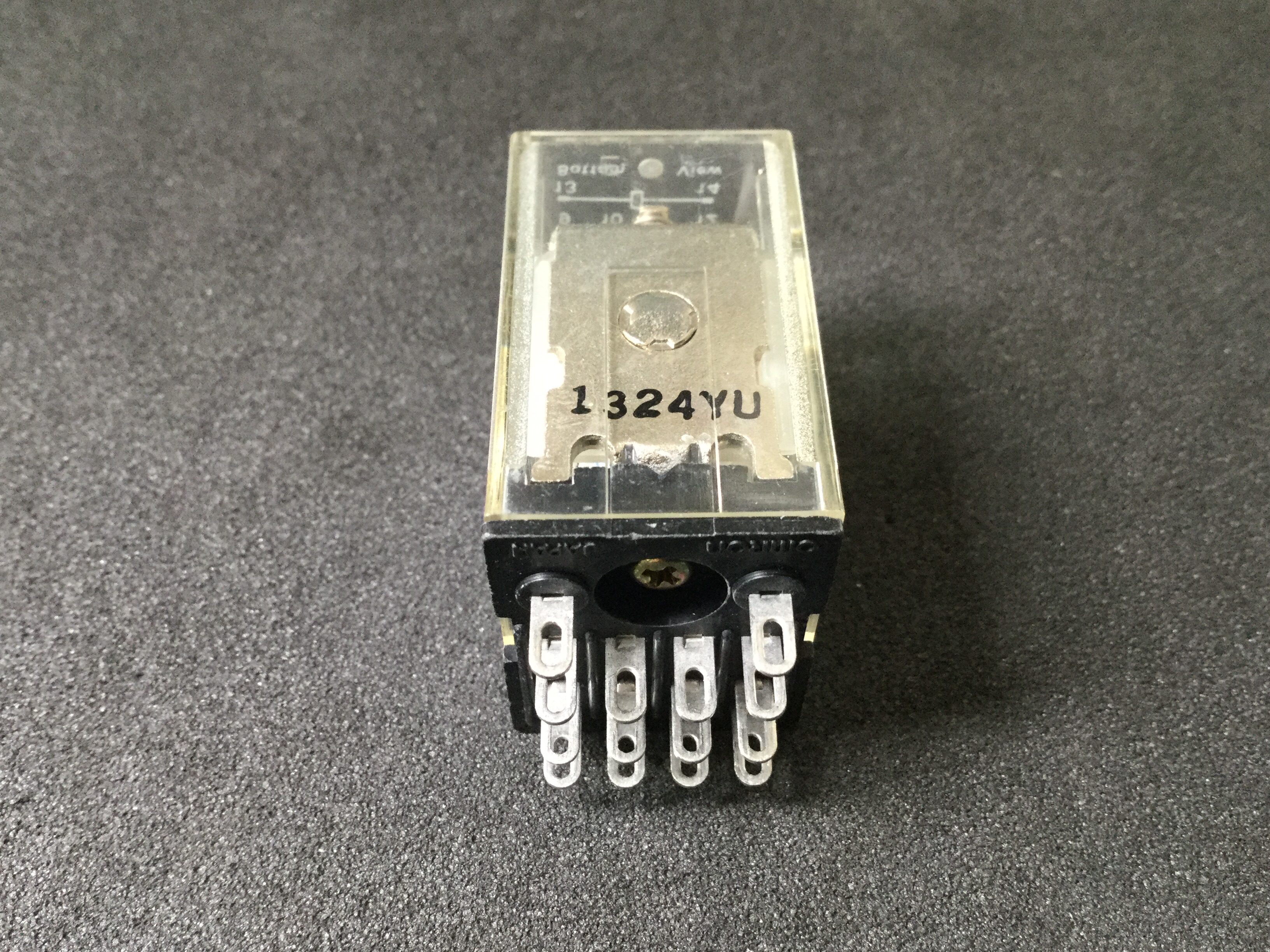

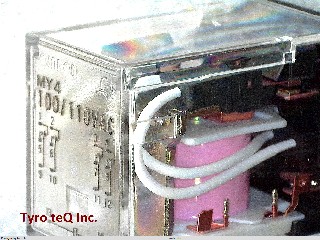

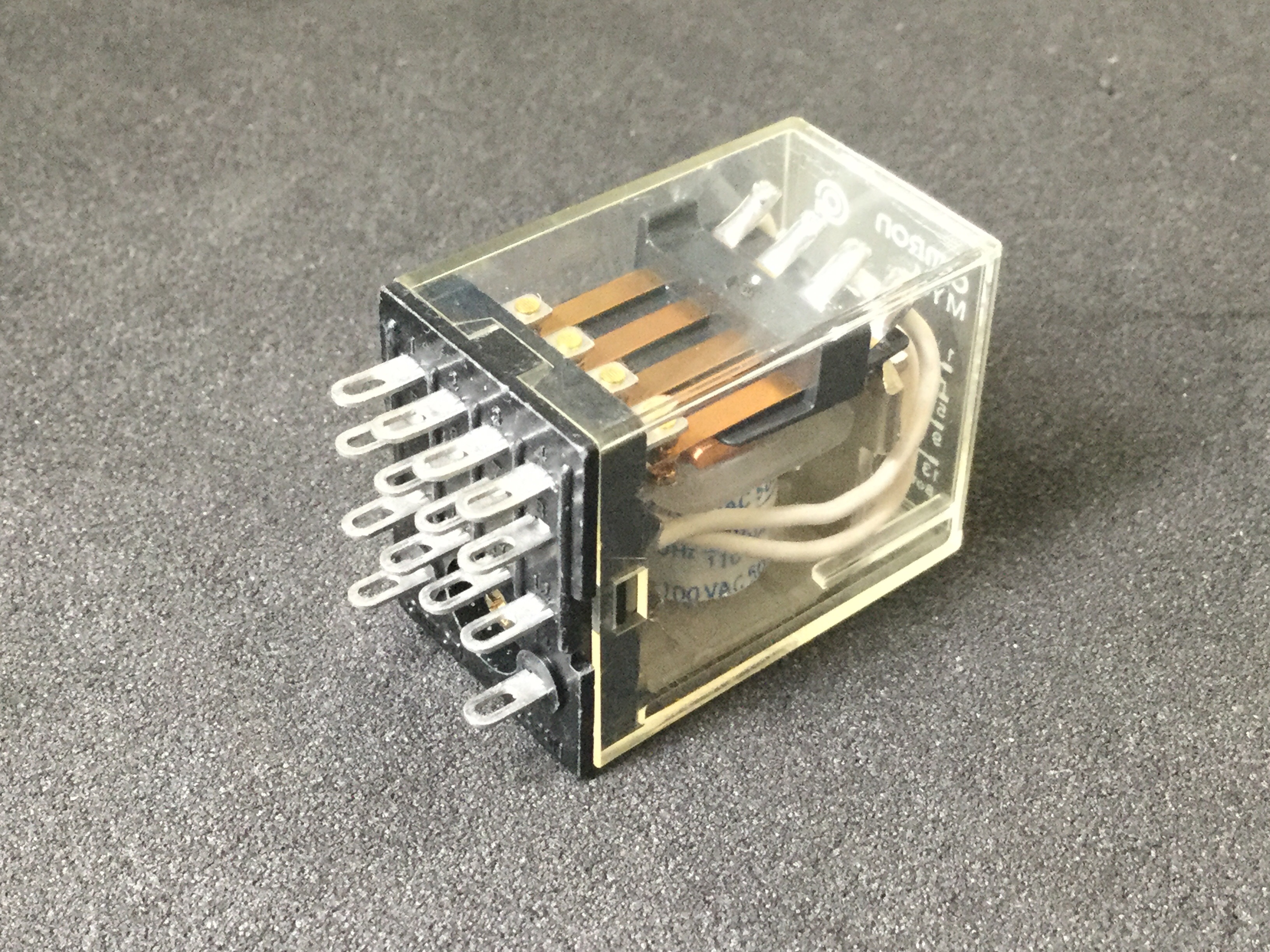

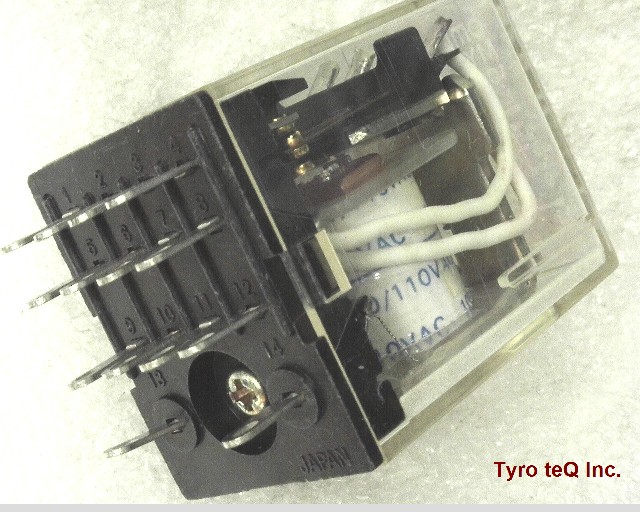

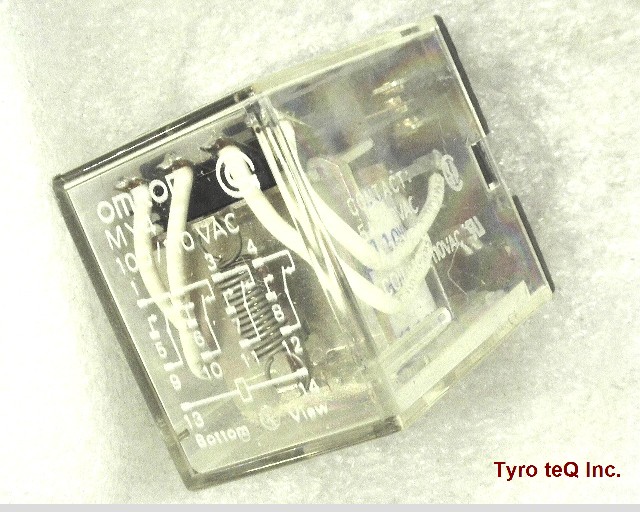

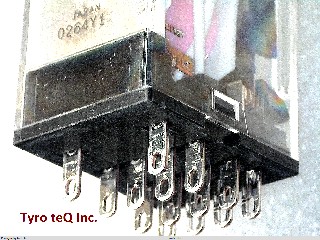

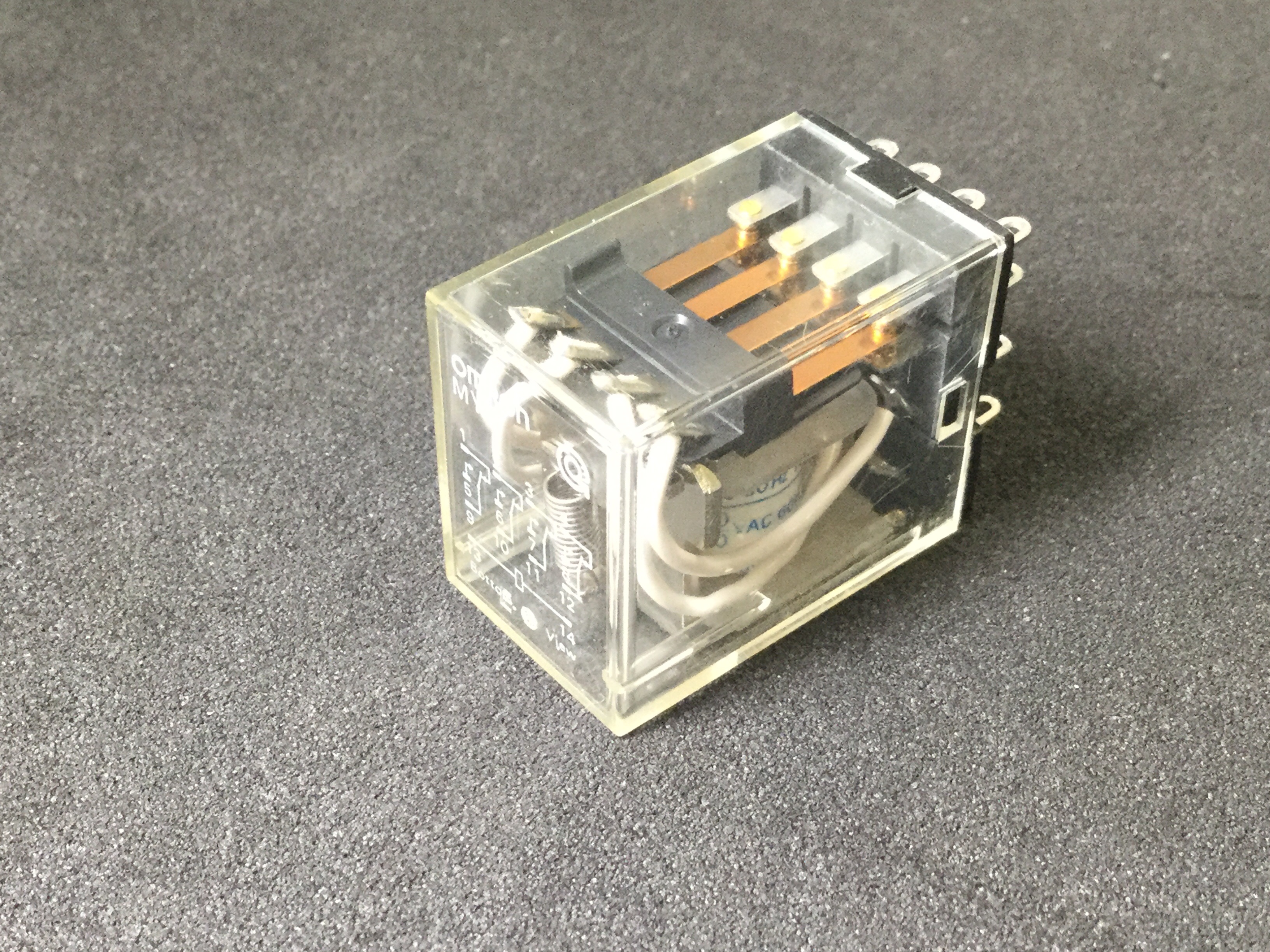

MY4 AC100/110 データシート

Name: MY4 AC100/110
Brand: OMRON
SKU: 230331179-0000-0000-0000

MY4 AC100/110 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

MY4 AC100/110 の詳細情報

型番	MY4 AC100/110
メーカー	OMRON
データシート
Additional Feature	COIL OPERATE VOLTAGE (AC): 88 V, COIL RELEASE VOLTAGE(AC): 33 V, SOCKET MOUNTABLE
Body Breadth	21.5 inch
Body Height	36 mm
Body Length or Diameter	28 mm
Coil Current(AC)-Max	0.013 A
Coil Power	935 mW
Coil Resistance	3750 ohm
Coil Voltage(AC)-Max	110 V
Coil/Input Supply Type	AC
Contact AC Max Rating R Load	3A@250VAC
Contact Current(AC)-Max	3 A
Contact Current(DC)-Max	3 A
Contact DC Max Rating R Load	3A@125VDC
Contact Voltage(AC)-Max	250 V
Contact Voltage(DC)-Max	125 V
Contact/Output Supply Type	AC/DC
Electrical Life	200000 Cycle(s)
JESD-609 Code	e4
Mounting Feature	PANEL MOUNT
Operate Time	20 ms
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-55 Cel
Physical Dimension	28mm x 21.5mm x 36mm
Reference Standard	CE; CSA; UL; VDE
Relay Action	MOMENTARY
Relay Function	4PDT
Relay Type	POWER/SIGNAL RELAY
Release Time	20 ms
Terminal Finish	Gold (Au)
Termination Type	SOLDER
