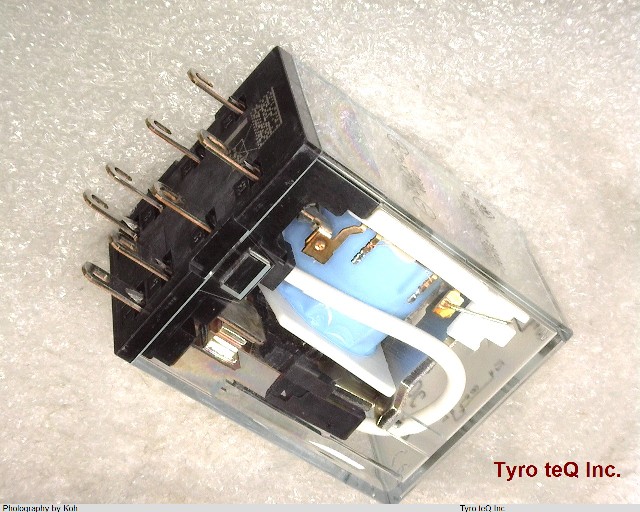

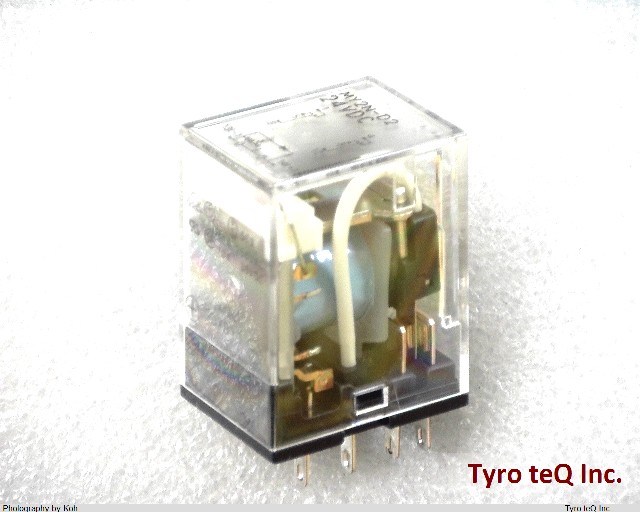

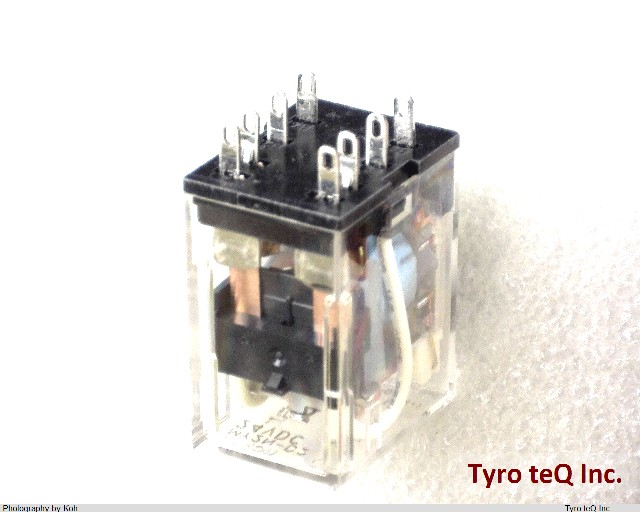

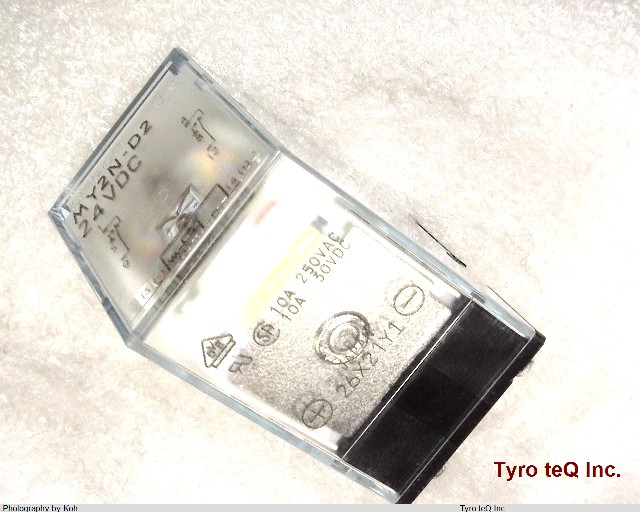

MY2N-D2 DC24 データシート

Name: MY2N-D2 DC24
Brand: OMRON
SKU: 230331114-0000-0000-0000

MY2N-D2 DC24 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

MY2N-D2 DC24 の詳細情報

型番	MY2N-D2 DC24
メーカー	OMRON
データシート
Additional Feature	SOCKET MOUNTABLE, WITH DIODE, WITH INDICATOR
Body Breadth	21.5 inch
Body Height	36 mm
Body Length or Diameter	28 mm
Coil Current(DC)-Max	0.036 A
Coil Operate Voltage(DC)	19.2 V
Coil Power	900 mW
Coil Release Voltage(DC)	2.4 V
Coil Resistance	636 ohm
Coil Voltage(DC)-Max	24 V
Coil/Input Supply Type	DC
Contact AC Max Rating R Load	5A@250VAC
Contact Current(AC)-Max	5 A
Contact Current(DC)-Max	5 A
Contact DC Max Rating R Load	5A@125VDC
Contact Voltage(AC)-Max	250 V
Contact Voltage(DC)-Max	30 V
Contact/Output Supply Type	AC/DC
Electrical Life	500000 Cycle(s)
Mounting Feature	PANEL MOUNT
Operate Time	20 ms
Operating Temperature-Max	60 Cel
Operating Temperature-Min	-55 Cel
Physical Dimension	28mm x 21.5mm x 36mm
Reference Standard	CE; CSA; IMQ; LR; SEV; UL; VDE
Relay Action	MOMENTARY
Relay Function	DPDT
Relay Type	POWER/SIGNAL RELAY
Release Time	20 ms
Termination Type	SNAP-ON
