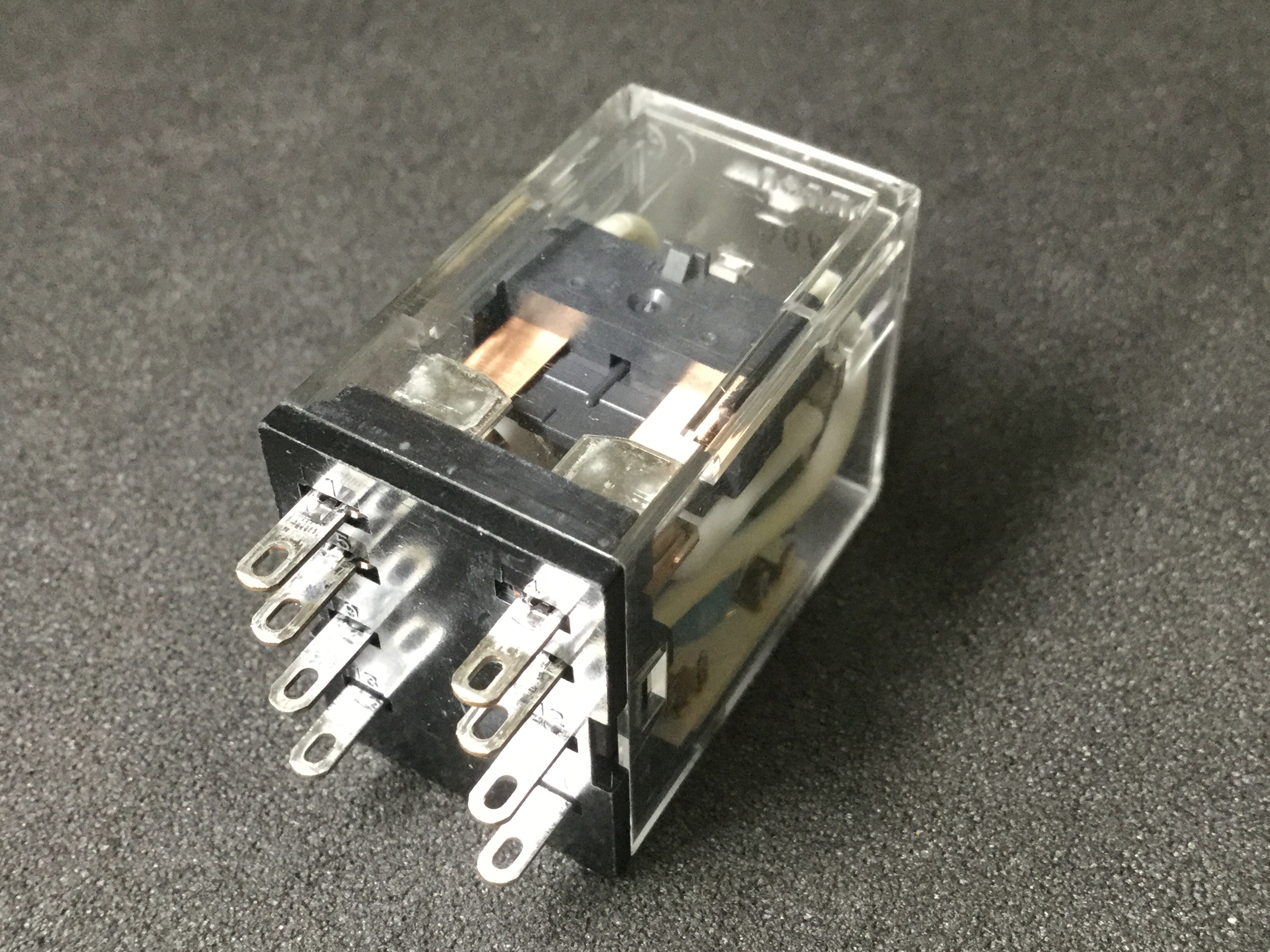

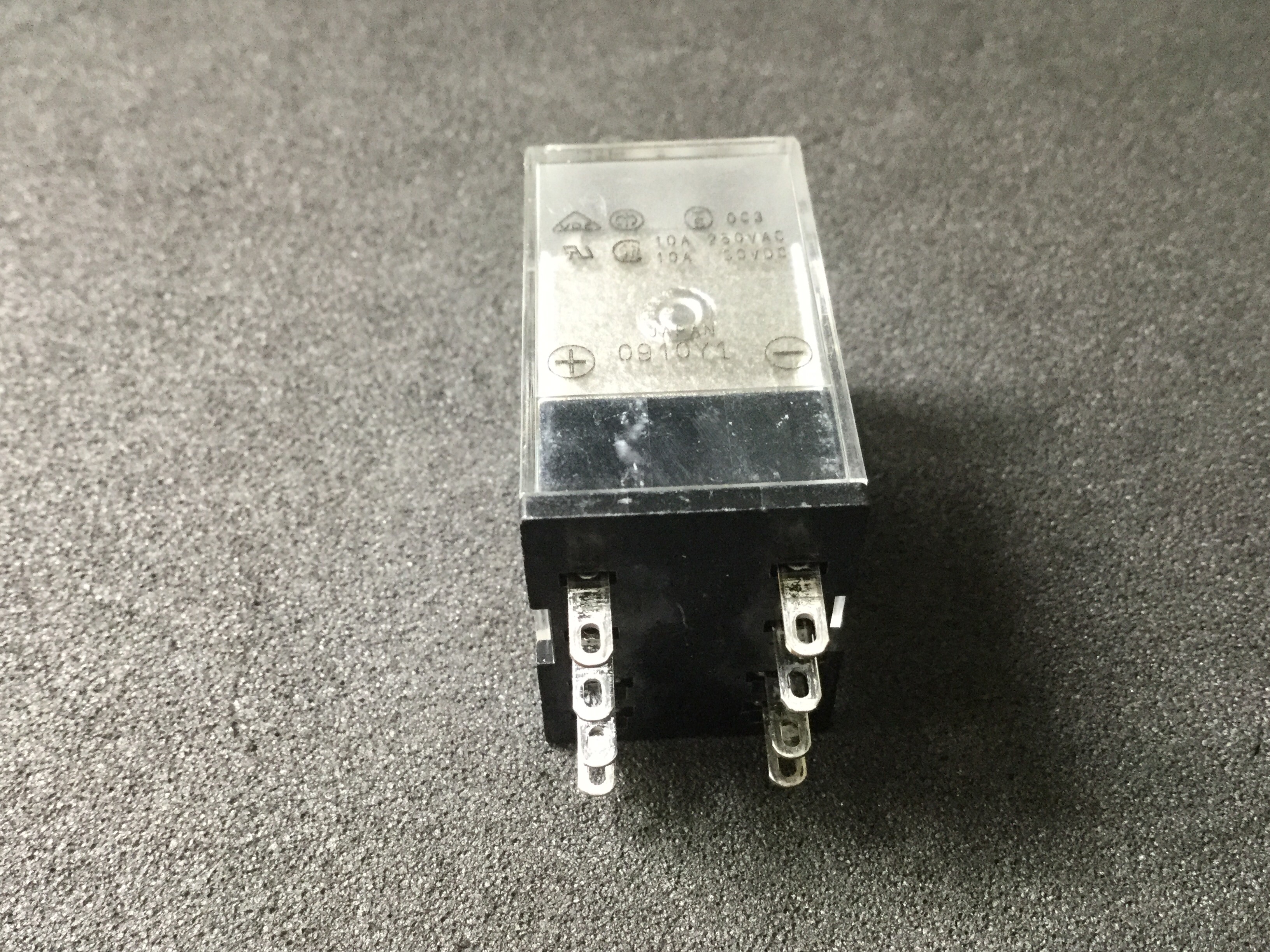

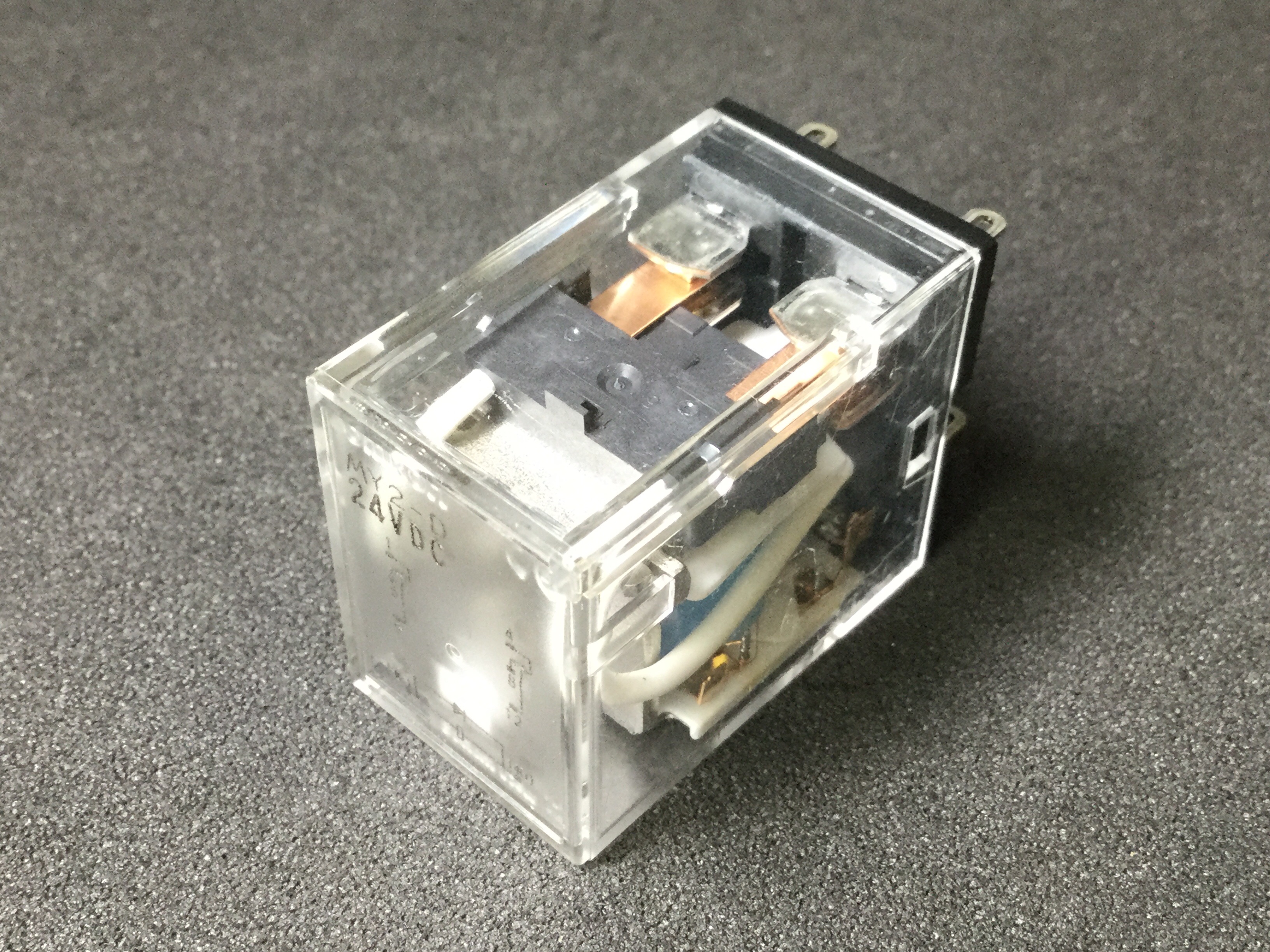

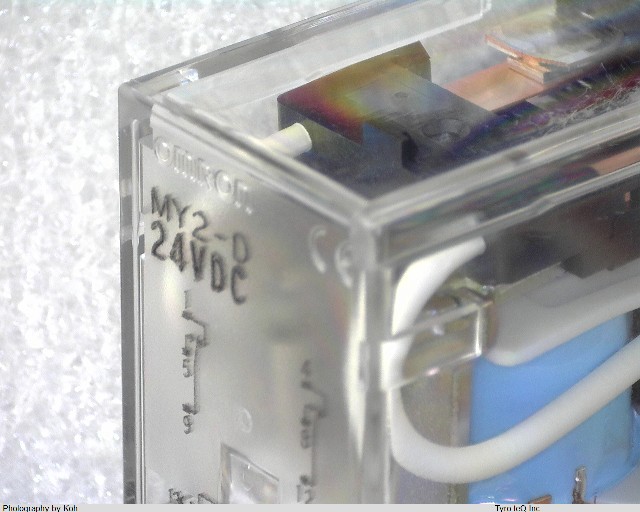

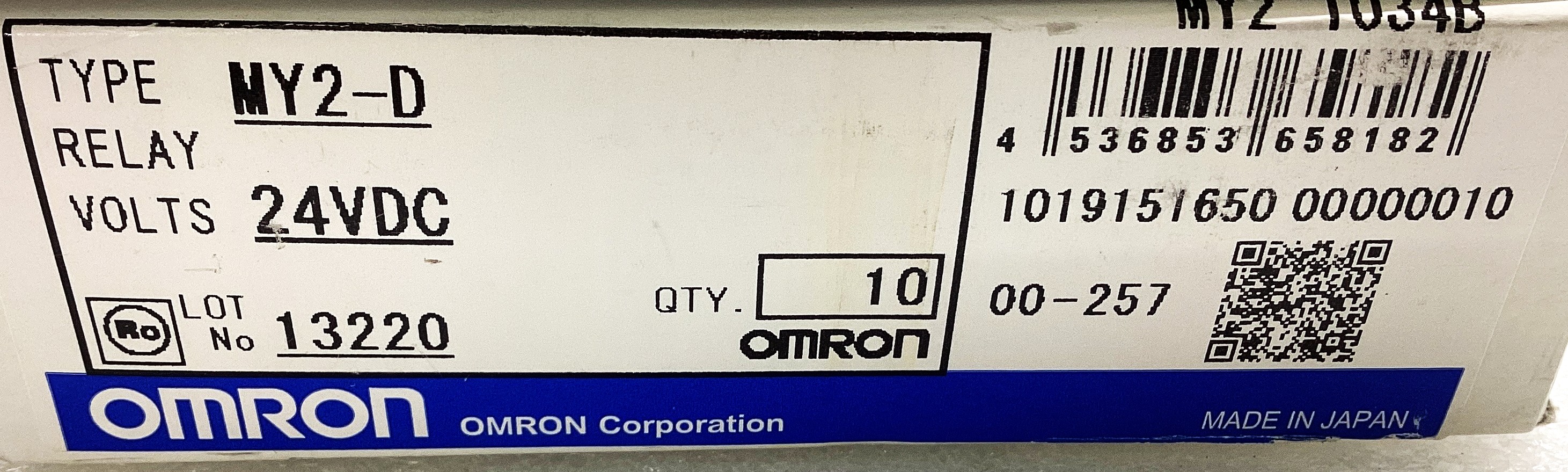

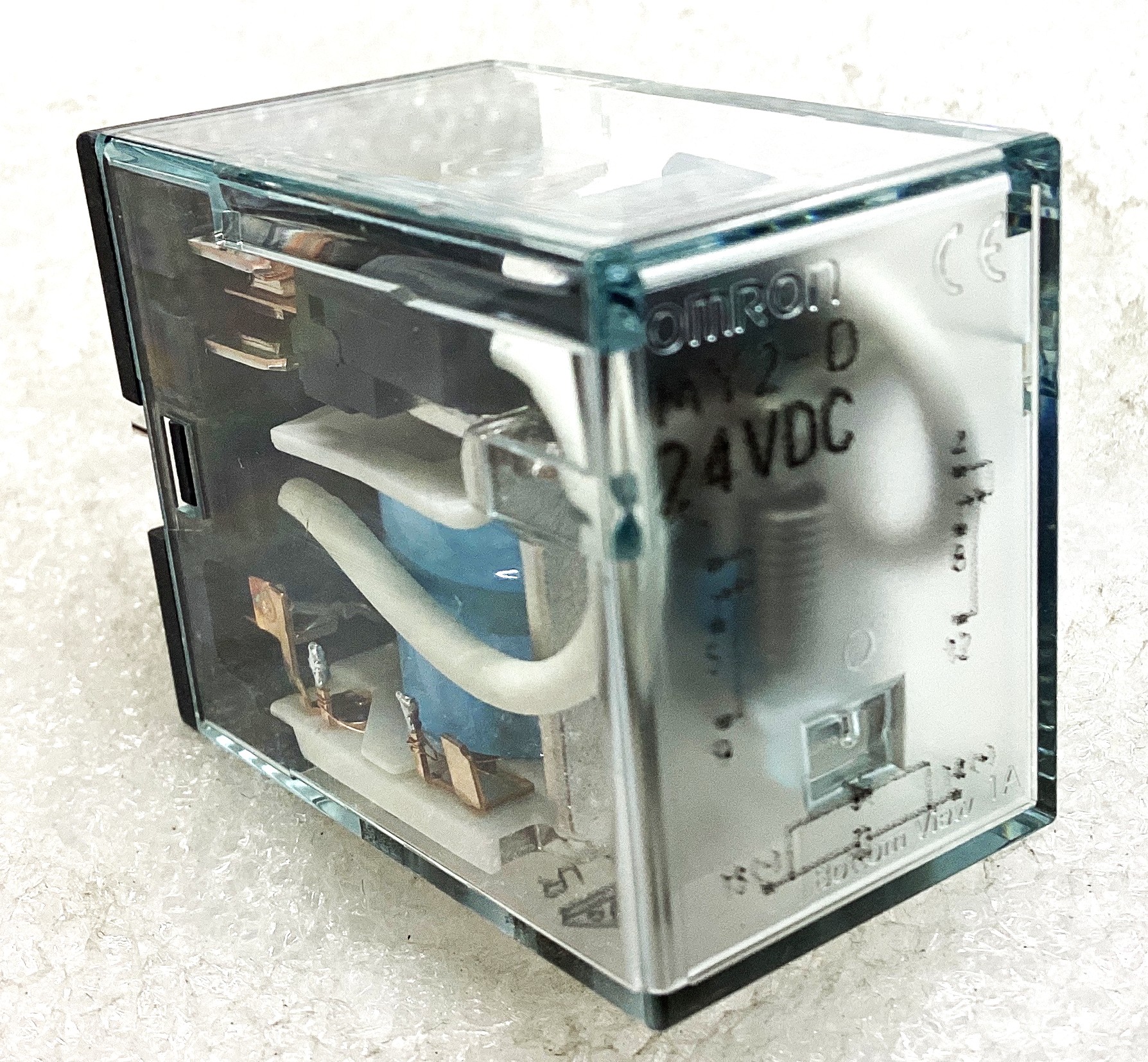

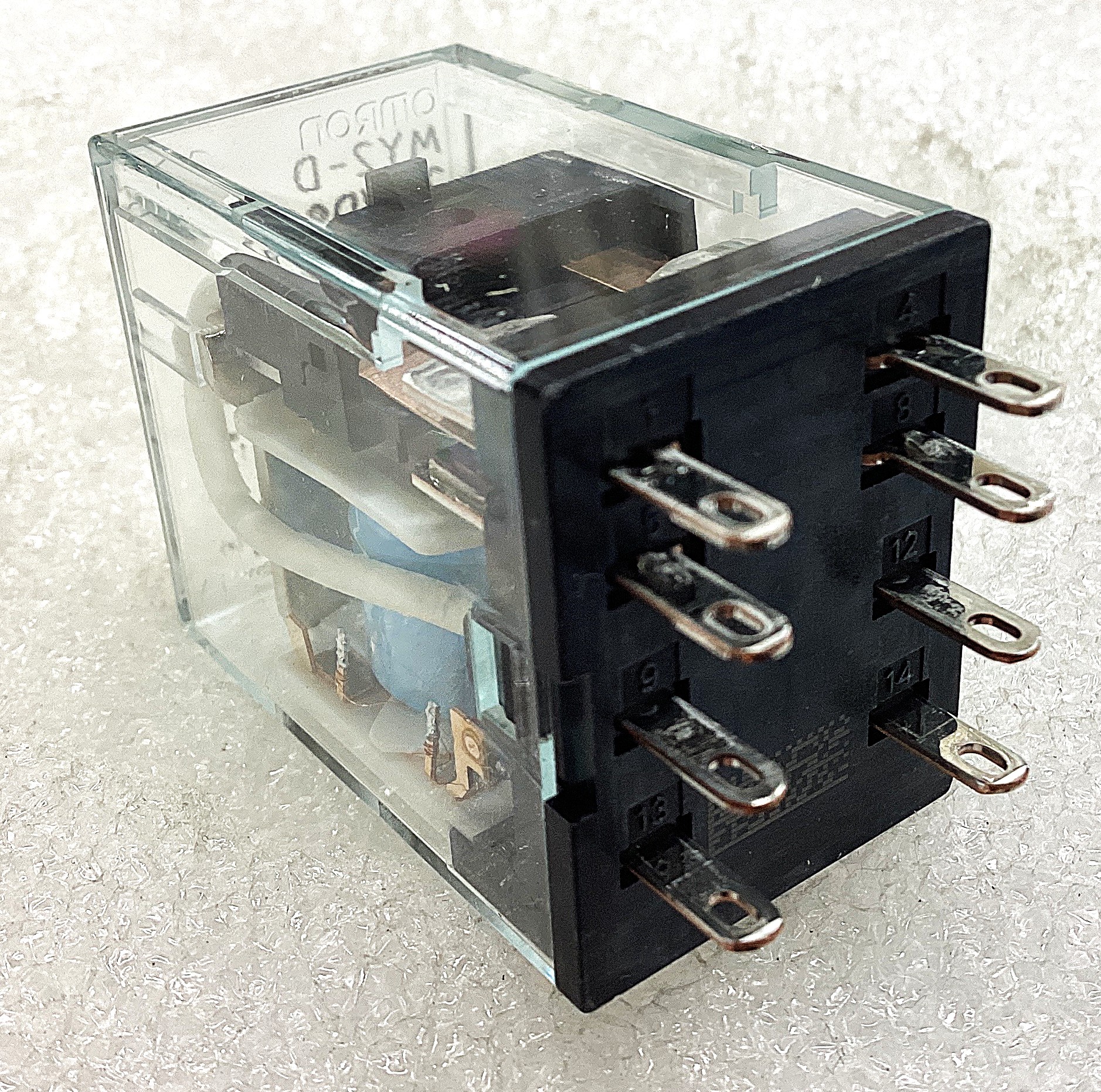

MY2-D DC24 データシート

Name: MY2-D DC24
Brand: OMRON
SKU: 230756666-0000-0000-0000

MY2-D DC24 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

MY2-D DC24 の詳細情報

型番	MY2-D DC24
メーカー	OMRON
データシート
Body Breadth	21.5 inch
Body Height	36 mm
Body Length or Diameter	28 mm
Coil Operate Voltage(DC)	19.2 V
Coil Release Voltage(DC)	2.4 V
Coil Resistance	662 ohm
Coil Voltage(DC)-Max	26.4 V
Coil Voltage-Nom	24 V
Coil/Input Supply Type	DC
Contact AC Max Rating R Load	5A@250VAC
Contact Current(AC)-Max	5 A
Contact Current(DC)-Max	5 A
Contact DC Max Rating R Load	5A@125VDC
Contact Resistance	50 mohm
Contact Voltage(AC)-Max	250 V
Contact Voltage(DC)-Max	125 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	2000 Vrms
End Contact Material	Silver
Input Switching Control Type	Random
Insulation Resistance	100000000 ohm
Number of Terminals	8
Operate Time	20 ms
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-55 Cel
Physical Dimension	28mm x 21.5mm x 36mm
Reference Standard	CE; CSA; UL; VDE
Relay Form	2 FORM C
Relay Function	DPDT
Release Time	20 ms
Terminal Length	0.0064 inch
Termination Type	QUICK CONNECT
Weight	35 g
