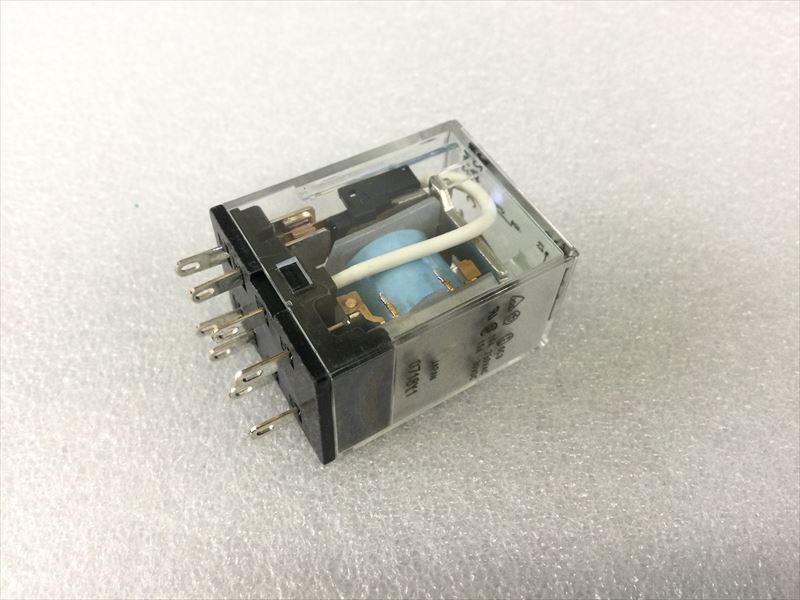

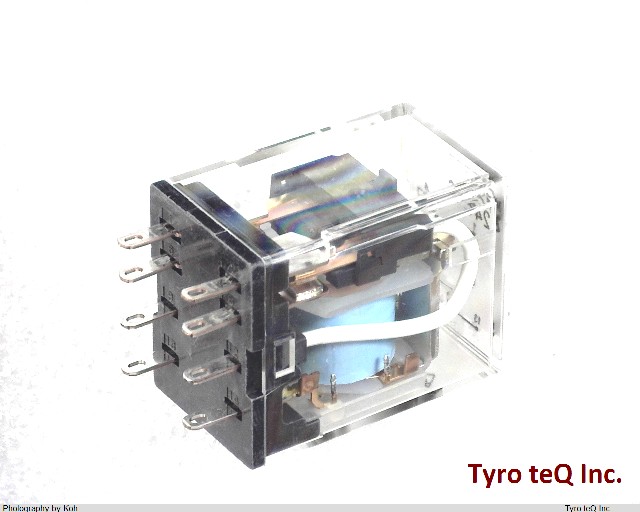

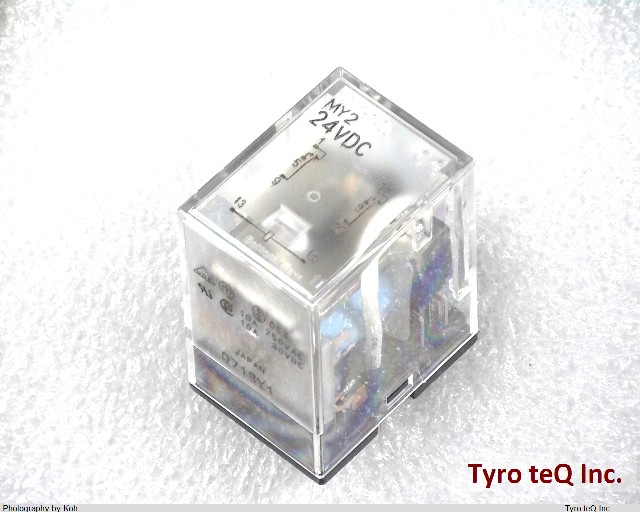

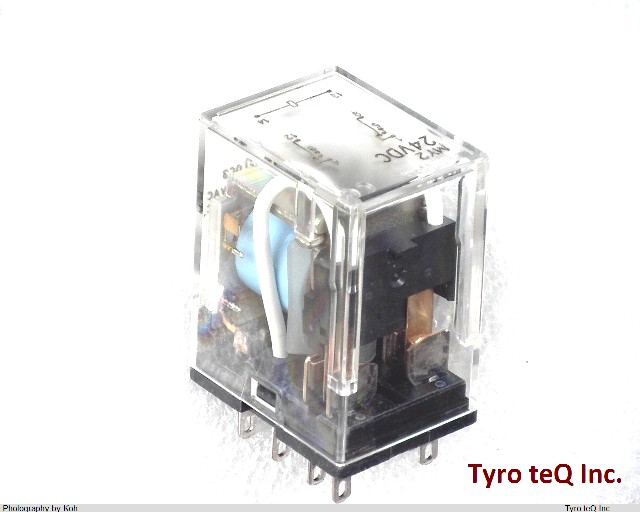

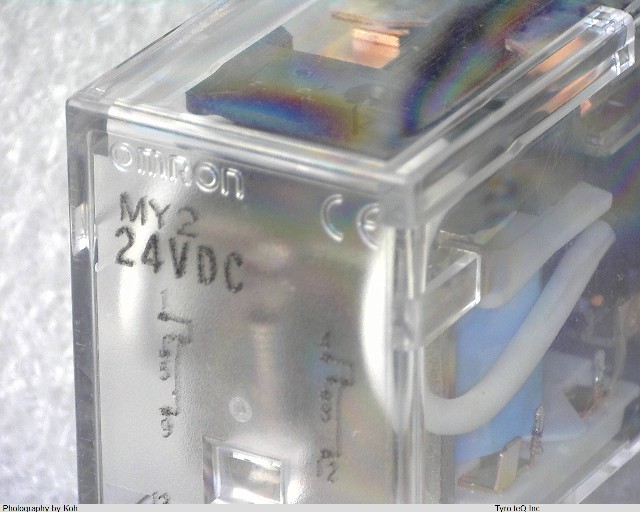

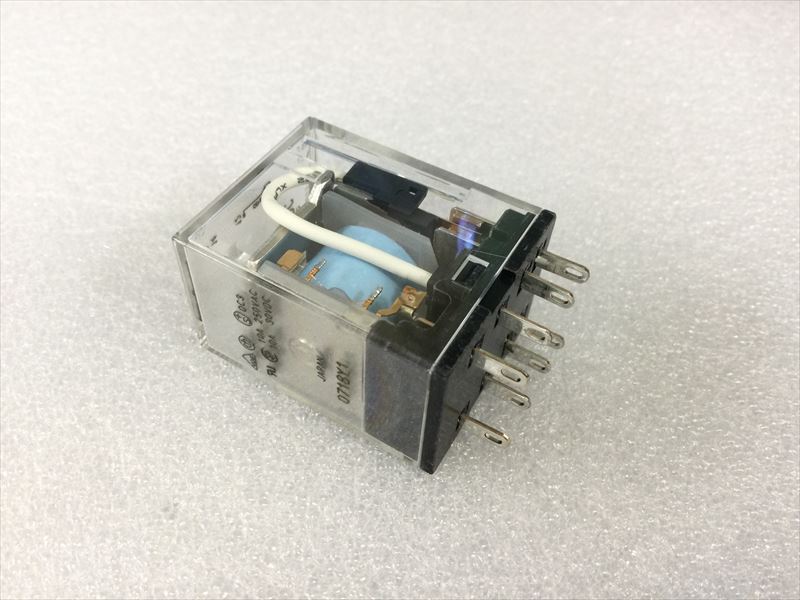

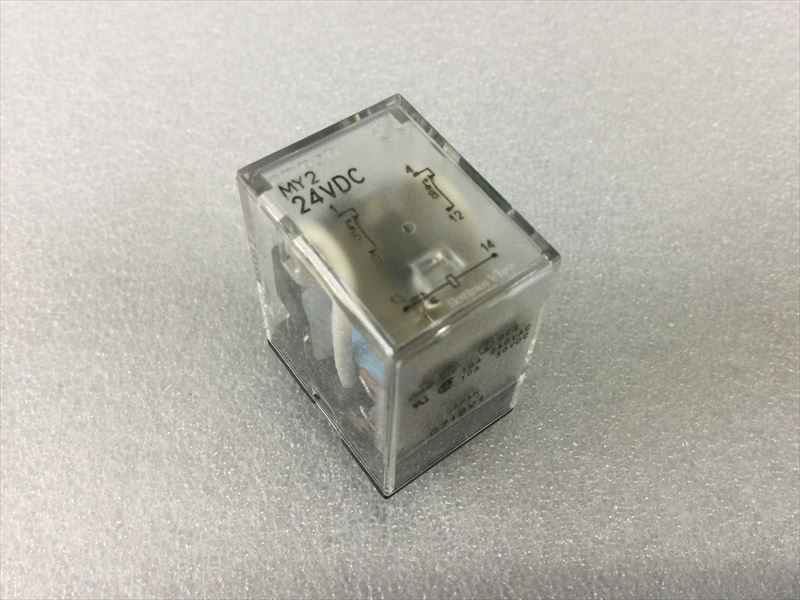

MY2 DC24 データシート

Name: MY2 DC24
Brand: OMRON
SKU: 230331043-0000-0000-0000

MY2 DC24 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

MY2 DC24 の詳細情報

型番	MY2 DC24
メーカー	OMRON
データシート
Body Breadth	21.5 inch
Body Height	36 mm
Body Length or Diameter	28 mm
Coil Current(DC)-Max	0.038 A
Coil Operate Voltage(DC)	19.2 V
Coil Power	900 mW
Coil Release Voltage(DC)	2.4 V
Coil Resistance	636 ohm
Coil Voltage(DC)-Max	24 V
Coil Voltage-Nom	24 V
Coil/Input Supply Type	DC
Contact AC Max Rating R Load	5A@250VAC
Contact Current(AC)-Max	5 A
Contact Current(DC)-Max	5 A
Contact DC Max Rating R Load	5A@125VDC
Contact Resistance	50 mohm
Contact Voltage(AC)-Max	250 V
Contact Voltage(DC)-Max	30 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	2000 Vrms
Electrical Life	500000 Cycle(s)
End Contact Material	Silver
Input Switching Control Type	Random
Insulation Resistance	100000000 ohm
Mounting Feature	SOCKET MOUNT
Number of Terminals	8
Operate Time	20 ms
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-55 Cel
Physical Dimension	28mm x 21.5mm x 36mm
Reference Standard	CE; CSA; IMQ; LR; SEV; UL; VDE
Relay Action	MOMENTARY
Relay Form	2 FORM C
Relay Function	DPDT
Relay Type	POWER/SIGNAL RELAY
Release Time	20 ms
Terminal Length	0.0064 inch
Termination Type	QUICK CONNECT
Weight	35 g
