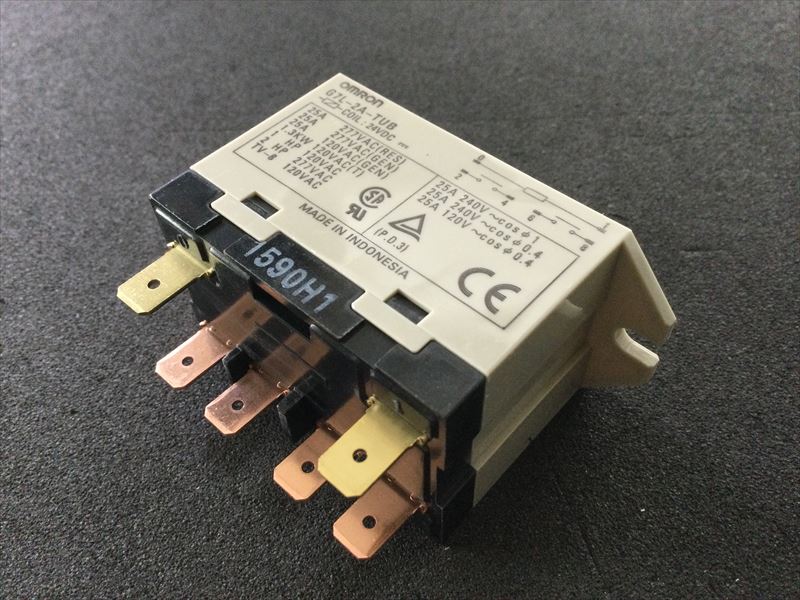

G7L-2A-TUB DC24

Name: G7L-2A-TUB DC24
Brand: OMRON
SKU: 170017598-0000-0000-0000

G7L-2A-TUB DC24 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

G7L-2A-TUB DC24 の詳細情報

型番	G7L-2A-TUB DC24
メーカー	OMRON
種別	耐電ドロップパワーリレー
Body Breadth	33.5 inch
Body Height	47 mm
Body Length or Diameter	68.5 mm
Coil Current(DC)-Max	0.079 A
Coil Operate Voltage(DC)	18 V
Coil Power	1900 mW
Coil Release Voltage(DC)	3.6 V
Coil Resistance	303 ohm
Coil Voltage(DC)-Max	26.4 V
Coil Voltage-Nom	24 V
Coil/Input Supply Type	DC
Contact AC Max Rating R Load	30A@220VAC
Contact Current(AC)-Max	30 A
Contact DC Max Rating R Load	[email protected]
Contact Resistance	50 mohm
Contact Voltage(AC)-Max	220 V
Contact/Output Supply Type	AC
Electrical Life	100000 Cycle(s)
End Contact Material	Silver Alloy
Input Switching Control Type	Random
Insulation Resistance	1000000000 ohm
Mounting Feature	THROUGH HOLE-STRAIGHT
Number of Terminals	6
Operate Time	30 ms
Operating Temperature-Max	60 Cel
Operating Temperature-Min	-25 Cel
Packing Method	TRAY
Physical Dimension	52.5mm x 33.5mm x 42mm
Reference Standard	CSA; TUV; UL
Relay Action	MOMENTARY
Relay Form	2 FORM A
Relay Function	DPST
Relay Type	POWER/SIGNAL RELAY
Release Time	30 ms
Terminal Length	0.011 inch
Termination Type	QUICK CONNECT
