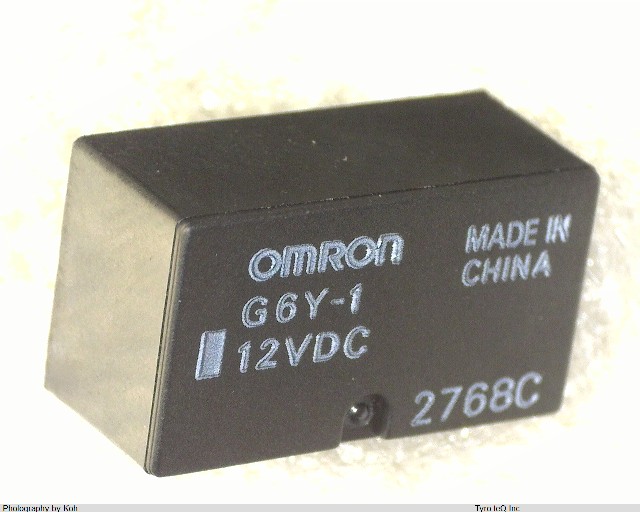

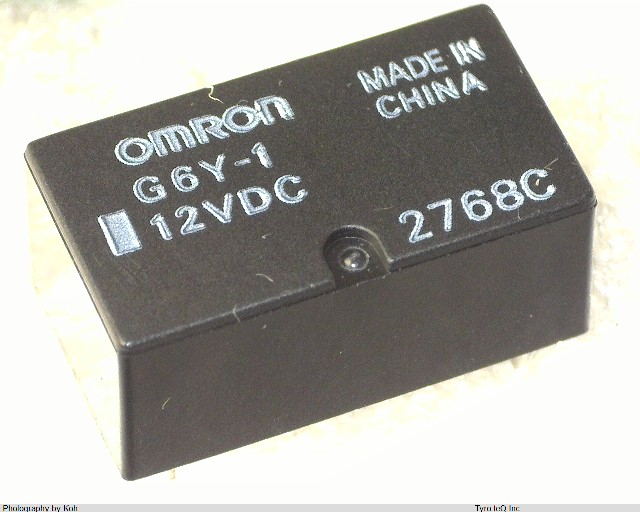

G6Y-1 DC12 データシート

Name: G6Y-1 DC12
Brand: OMRON
SKU: 170016854-0000-0000-0000

G6Y-1 DC12 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

G6Y-1 DC12 の詳細情報

型番	G6Y-1 DC12
メーカー	OMRON
データシート
Body Breadth	11.7 inch
Body Height	9.2 mm
Body Length or Diameter	20.7 mm
Characteristic Impedance	50 ohm
Coil Current(DC)-Max	0.017 A
Coil Operate Voltage(DC)	9 V
Coil Power	200 mW
Coil Release Voltage(DC)	1.2 V
Coil Resistance	720 ohm
Coil Voltage(DC)-Max	12 V
Coil Voltage-Nom	12 V
Coil/Input Supply Type	DC
Contact AC Max Power Rating R Load	10VA@30VAC
Contact AC Max Rating R Load	.5A@30VAC
Contact Current(AC)-Max	0.5 A
Contact Current(DC)-Max	0.5 A
Contact DC Max Power Rating R Load	10W@30VDC
Contact DC Max Rating R Load	.5A@30VDC
Contact Resistance	100 mohm
Contact Voltage(AC)-Max	30 V
Contact Voltage(DC)-Max	30 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	1000 Vrms
Dielectric Strength Between Open Contacts	500 Vrms
Electrical Life	300000 Cycle(s)
End Contact Material	Copper Alloy
End Contact Plating	GOLD
Input Power-Max	10 W
Input Switching Control Type	Random
Insertion Loss-Max	0.5 dB
Insulation Resistance	100000000 ohm
Isolation-Max	65 dB
JESD-609 Code	e4
Manufacturer Series	G6Y
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT

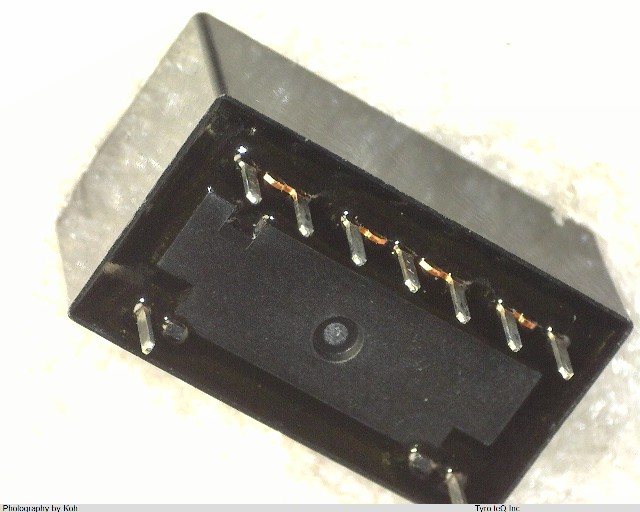

Number of Terminals	9
Operate Time	10 ms
Operating Frequency-Max	900 MHz
Operating Frequency-Min	250 MHz
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
PCB Hole Count	9
Physical Dimension	20.7mm x 11.7mm x 9.2mm
Relay Action	MOMENTARY
Relay Form	1 FORM C
Relay Function	SPDT
Relay Type	RF RELAY
Release Time	5 ms
Sealing	PLASTIC SEALED
Switching Time	15 ms
