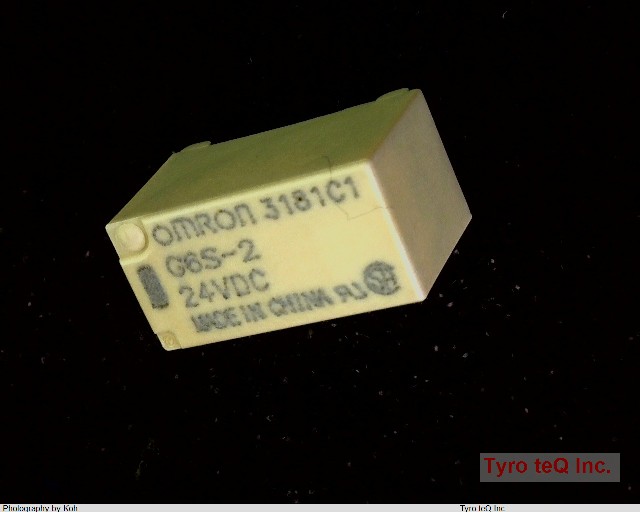

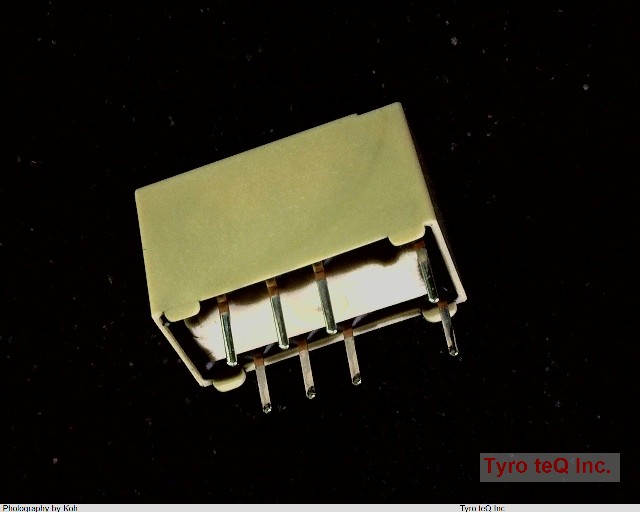

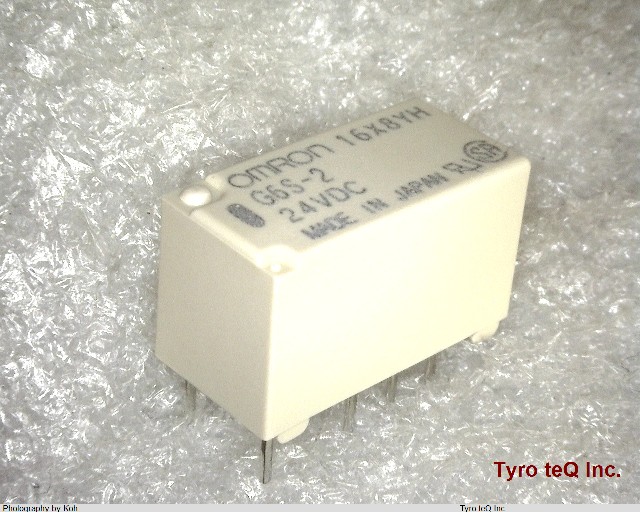

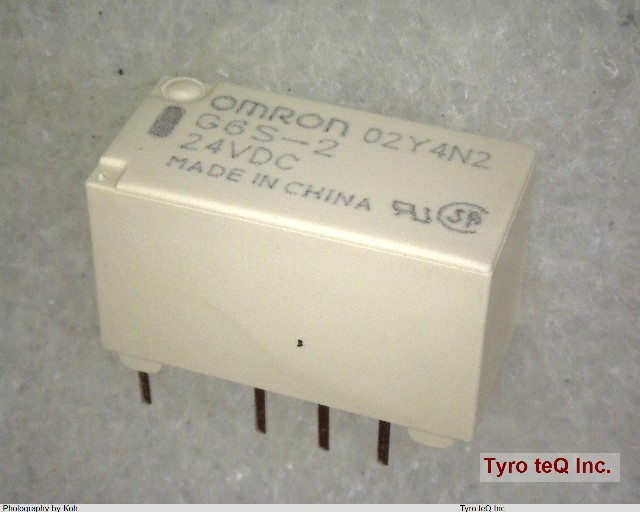

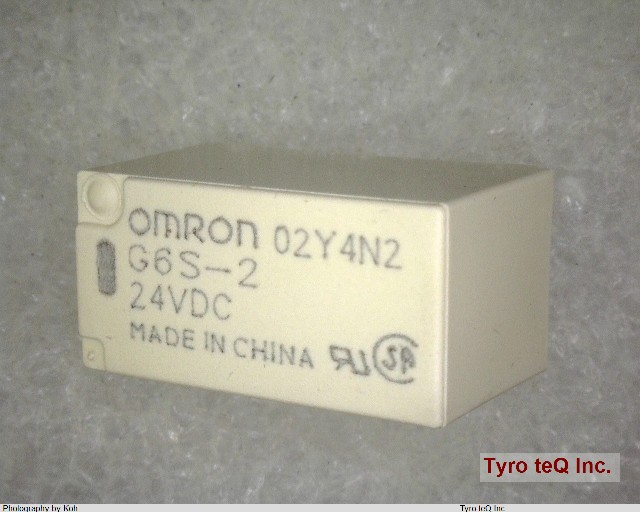

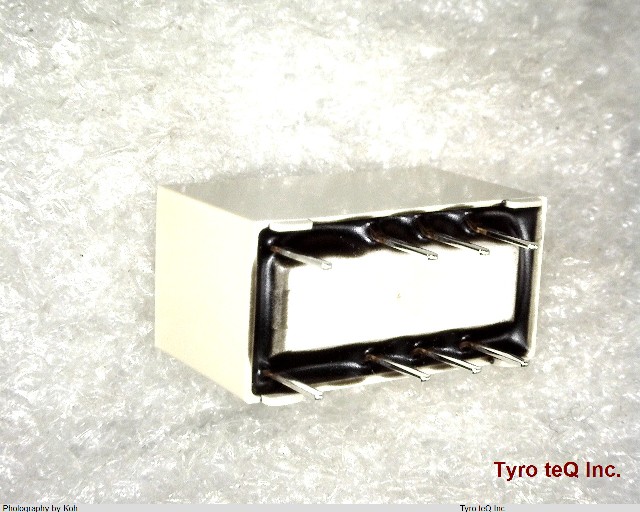

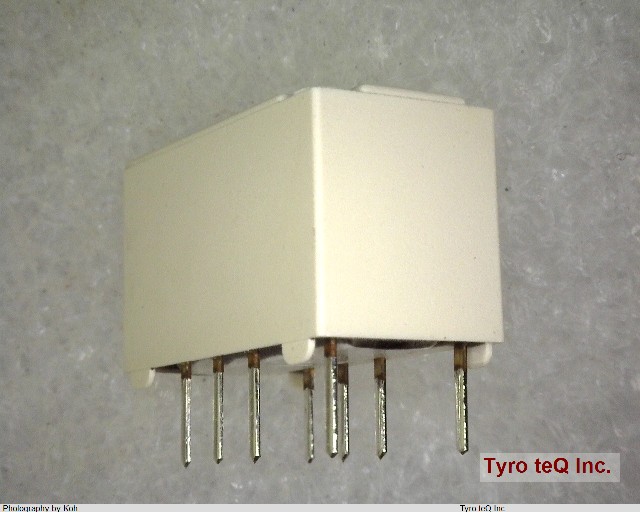

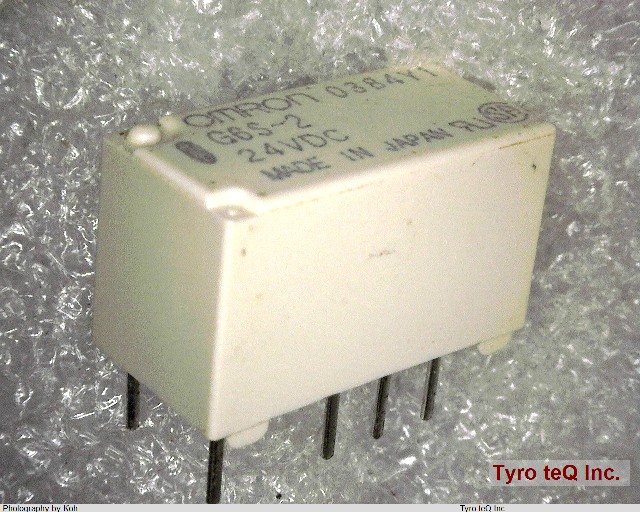

G6S-2-DC24

Name: G6S-2-DC24
Brand: OMRON
SKU: 170050492-0000-0000-0000

G6S-2-DC24 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

G6S-2-DC24 の詳細情報

型番	G6S-2-DC24
メーカー	OMRON
種別	サーフェスマウントリレー
Body Breadth	7.3 inch
Body Height	9.2 mm
Body Length or Diameter	14.8 mm
Coil Current(DC)-Max	0.008 A
Coil Operate Voltage(DC)	18 V
Coil Power	200 mW
Coil Release Voltage(DC)	2.4 V
Coil Resistance	2880 ohm
Coil Voltage(DC)-Max	24 V
Coil Voltage-Nom	24 V
Coil/Input Supply Type	DC
Contact AC Max Power Rating R Load	62.5VA@250VAC
Contact AC Max Rating R Load	2A@250VAC
Contact Current(AC)-Max	2 A
Contact Current(DC)-Max	2 A
Contact DC Max Power Rating R Load	60W@220VDC
Contact DC Max Rating R Load	2A@220VDC
Contact Resistance	75 mohm
Contact Voltage(AC)-Max	250 V
Contact Voltage(DC)-Max	220 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	2000 Vrms
Dielectric Strength Between Open Contacts	1000 Vrms
Electrical Life	100000 Cycle(s)
End Contact Material	Silver
End Contact Plating	GOLD
Input Switching Control Type	Random
Insulation Resistance	1000000000 ohm
JESD-609 Code	e1
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	8
Operate Time	4.5 ms
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PCB Hole Count	8
Packing Method	TUBE
Physical Dimension	14.8mm x 7.3mm x 9.2mm
Reference Standard	CSA; UL
Relay Action	MOMENTARY
Relay Form	2 FORM C
Relay Function	DPDT
Relay Type	POWER/SIGNAL RELAY
Release Time	4.5 ms
Sealing	MOISTURE PROOF
Terminal Finish	Tin/Silver/Copper (Sn/Ag/Cu)
Termination Type	SOLDER
Weight	2 g
