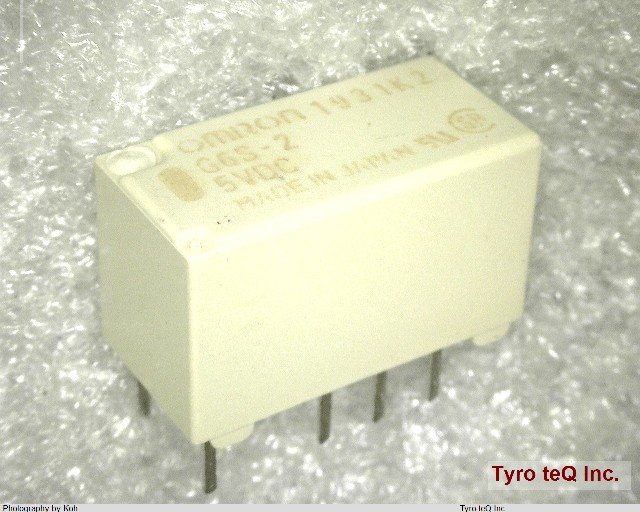

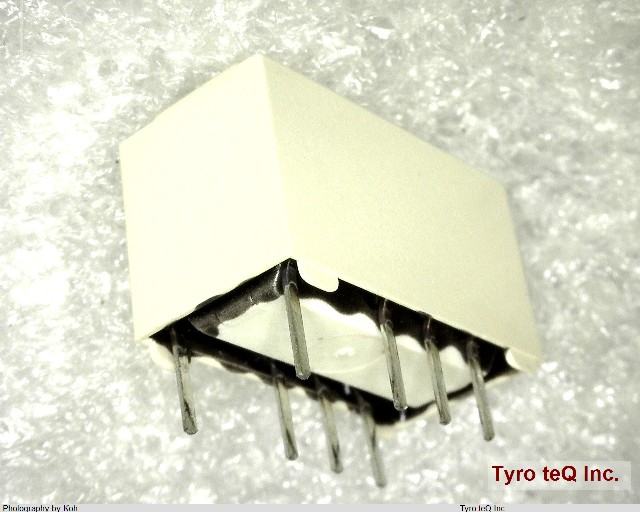

G6S-2 5VDC

Name: G6S-2 5VDC
Brand: OMRON
SKU: 170043146-0000-0000-0000

G6S-2 5VDC - OMRON の商品詳細ページです。

No Image

２営業日以内に回答いたします

G6S-2 5VDC の詳細情報

型番	G6S-2 5VDC
メーカー	OMRON
種別	サーフェスマウントリレー
Body Breadth	7.3 inch
Body Height	9.2 mm
Body Length or Diameter	14.8 mm
Coil Current(DC)-Max	28.1 A
Coil Operate Voltage(DC)	3.75 V
Coil Power	140 mW
Coil Release Voltage(DC)	0.5 V
Coil Resistance	178 ohm
Coil Voltage(DC)-Max	5 V
Coil Voltage-Nom	5 V
Coil/Input Supply Type	DC
Contact AC Max Rating R Load	2A@250VAC
Contact Current(AC)-Max	2 A
Contact Current(DC)-Max	2 A
Contact DC Max Rating R Load	2A@220VDC
Contact Resistance	75 mohm
Contact Voltage(AC)-Max	250 V
Contact Voltage(DC)-Max	220 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	2000 Vrms
Dielectric Strength Between Open Contacts	1500 Vrms
Electrical Life	100000 Cycle(s)
End Contact Material	Silver
Input Switching Control Type	Random
Insulation Resistance	1000000000 ohm
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	8
Operate Time	4 ms
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-40 Cel
PCB Hole Count	8
Packing Method	TUBE
Physical Dimension	14.8mm x 7.3mm x 9.2mm
Reference Standard	CSA; UL
Relay Action	MOMENTARY
Relay Form	2 FORM C
Relay Function	DPDT
Relay Type	POWER/SIGNAL RELAY
Release Time	4 ms
Terminal Length	0.003 inch
Termination Type	SOLDER
Weight	2 g
