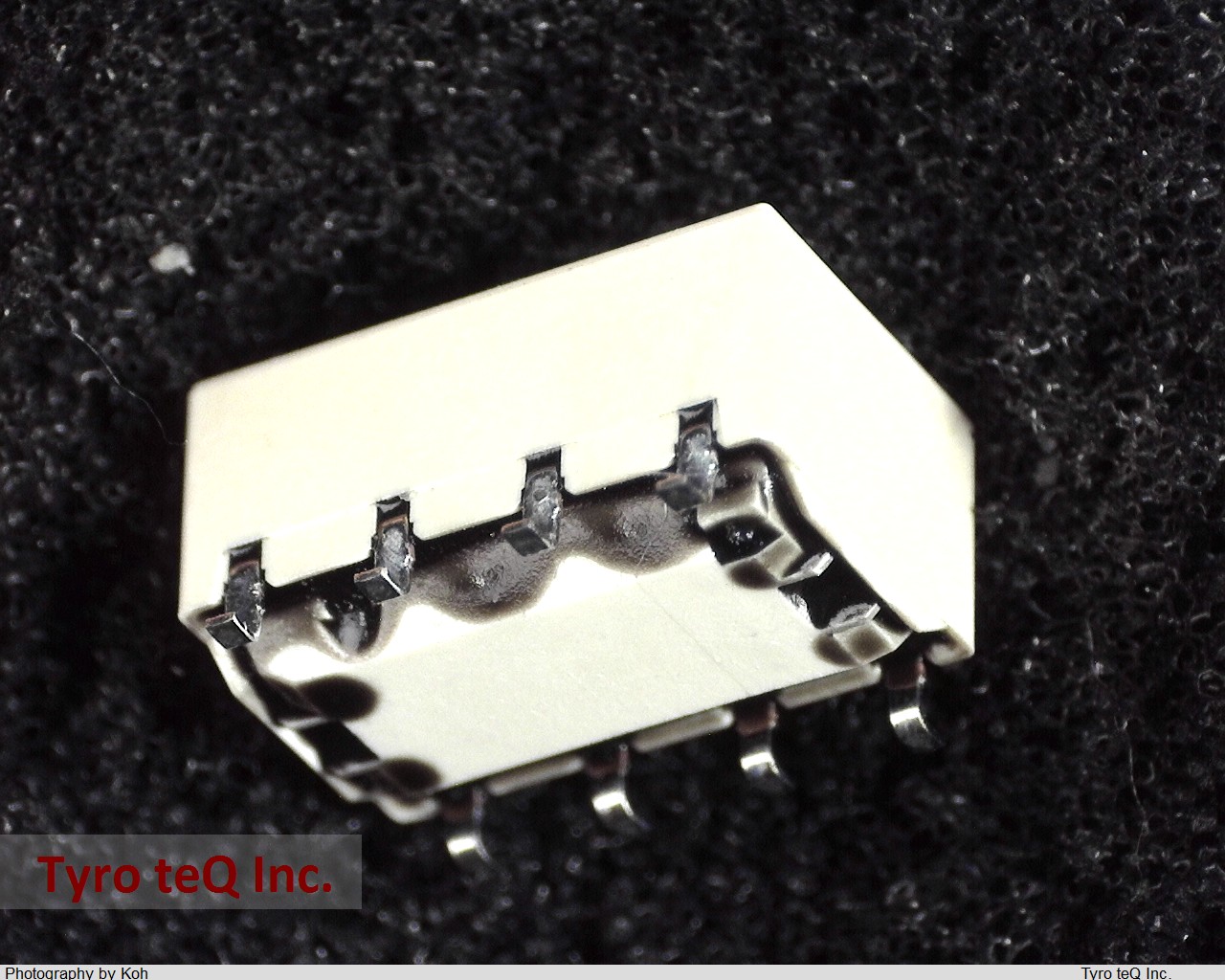

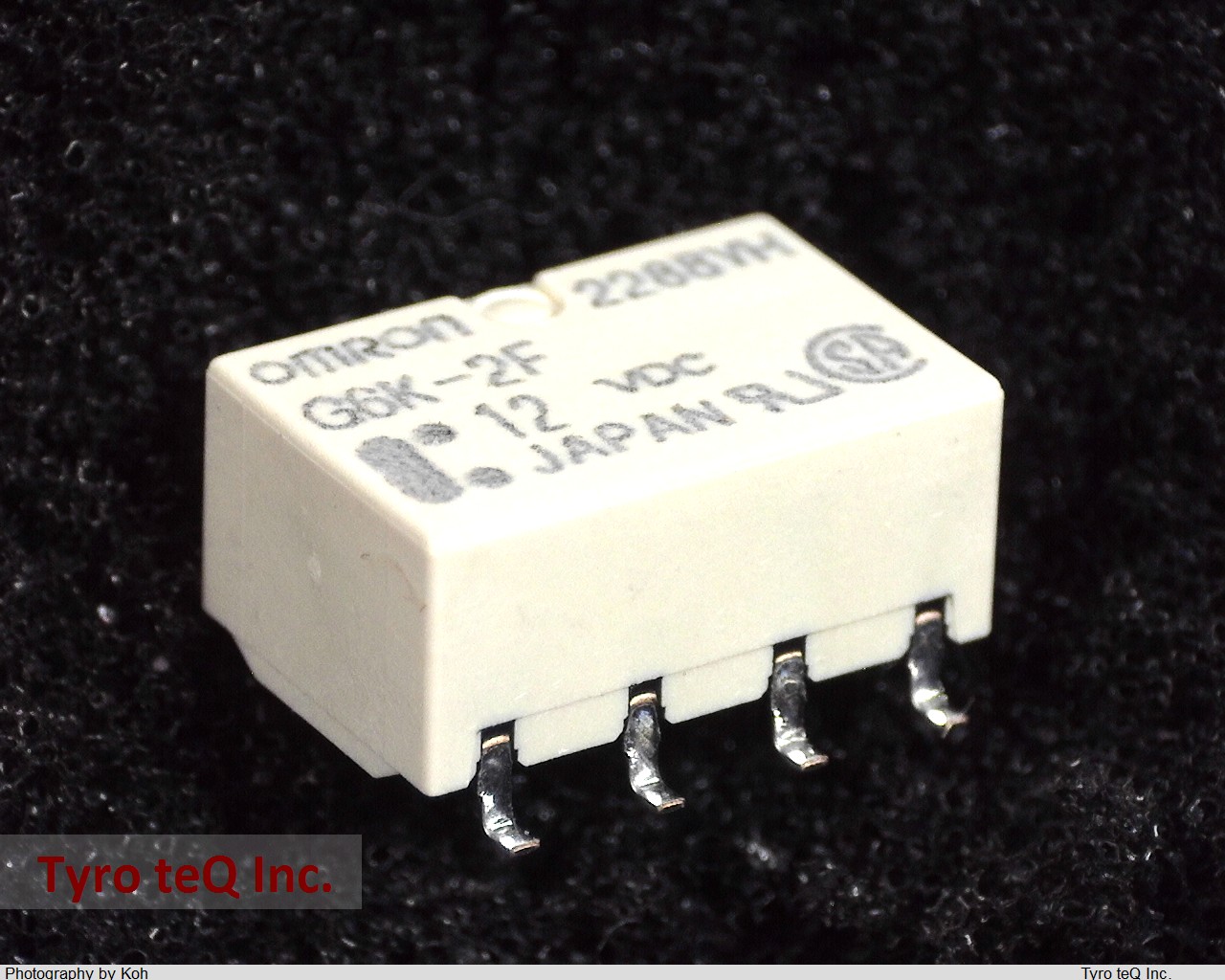

G6K-2F DC12

Name: G6K-2F DC12
Brand: OMRON
SKU: 170050548-0000-0000-0000

G6K-2F DC12 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

G6K-2F DC12 の詳細情報

型番	G6K-2F DC12
メーカー	OMRON
種別	サーフェスマウントリレー
Body Breadth	6.5 inch
Body Height	5.2 mm
Body Length or Diameter	10 mm
Coil Current(DC)-Max	0.009 A
Coil Operate Voltage(DC)	9.6 V
Coil Power	100 mW
Coil Release Voltage(DC)	1.2 V
Coil Resistance	1315 ohm
Coil Voltage(DC)-Max	18 V
Coil Voltage-Nom	12 V
Coil/Input Supply Type	DC
Contact AC Max Rating R Load	.3A@125VAC
Contact Current(AC)-Max	0.3 A
Contact Current(DC)-Max	1 A
Contact DC Max Rating R Load	1A@30VDC
Contact Resistance	100 mohm
Contact Voltage(AC)-Max	125 V
Contact Voltage(DC)-Max	30 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	1500 Vrms
Dielectric Strength Between Open Contacts	750 Vrms
Electrical Life	100000 Cycle(s)
End Contact Material	Silver
Input Switching Control Type	Random
Insulation Resistance	1000000000 ohm
JESD-609 Code	e3
Mounting Feature	SURFACE MOUNT-STRAIGHT
Number of Terminals	8
Operate Time	3 ms
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
Packing Method	TUBE
Physical Dimension	10mm x 6.5mm x 5.2mm
Reference Standard	BSI; CSA; UL
Relay Action	MOMENTARY
Relay Form	2 FORM C
Relay Function	DPDT
Relay Type	POWER/SIGNAL RELAY
Release Time	3 ms
Sealing	SEALED TYPE
Terminal Finish	Tin (Sn)
Termination Type	SOLDER
Weight	0.7 g
