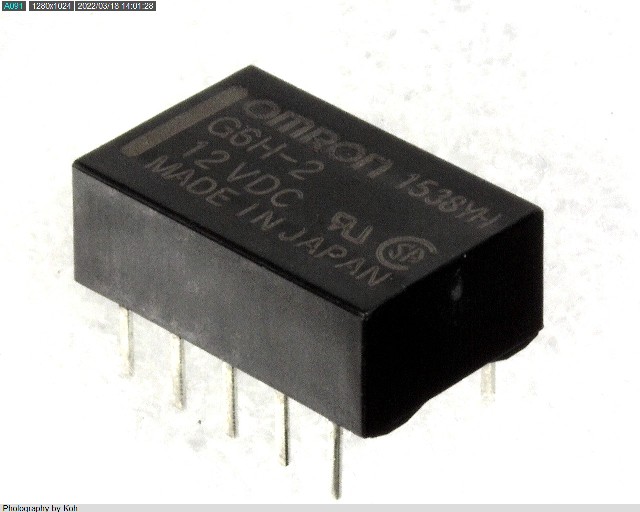

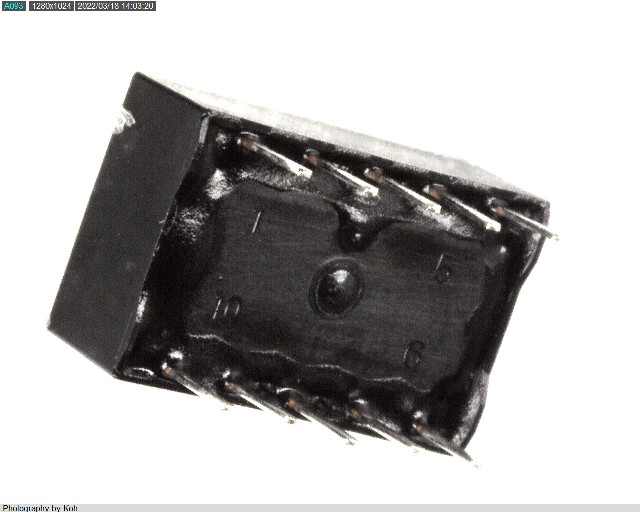

G6H-2 データシート

Name: G6H-2
Brand: OMRON
SKU: 170004506-0000-0000-0000

G6H-2 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

信号切換用リレー | 高感度 | 小型|シングル･ステイブル|接点極数 : 2極

G6H-2 の詳細情報

型番	G6H-2
メーカー	OMRON
種別	マイクロリレー
データシート
Additional Feature	LOW PROFILE
Body Breadth	9 inch
Body Height	5 mm
Body Length or Diameter	14 mm
Coil Current(DC)-Max	0.0058 A
Coil Operate Voltage(DC)	2.25 V
Coil Power	140 mW
Coil Release Voltage(DC)	0.3 V
Coil Resistance	64.3 ohm
Coil Voltage(DC)-Max	3 V
Coil Voltage-Nom	3 V
Coil/Input Supply Type	DC
Contact AC Max Power Rating R Load	62.5VA@125VAC
Contact AC Max Rating R Load	.5A@125VAC
Contact Current(AC)-Max	0.5 A
Contact Current(DC)-Max	1 A
Contact DC Max Power Rating R Load	33W@110VDC
Contact DC Max Rating R Load	1A@30VDC
Contact Resistance	50 mohm
Contact Voltage(AC)-Max	125 V
Contact Voltage(DC)-Max	30 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	707.21 Vrms
Dielectric Strength Between Open Contacts	707.21 Vrms
Electrical Life	200000 Cycle(s)
End Contact Material	Silver
End Contact Plating	GOLD
Input Switching Control Type	Random
Insulation Resistance	1000000000 ohm
JESD-609 Code	e4
Manufacturer Series	G6H
Mounting Feature	SURFACE MOUNT-STRAIGHT
Number of Terminals	10
Operate Time	3 ms
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
PCB Hole Count	10
Packing Method	TAPE AND REEL
Physical Dimension	14.3mm X 9.3mm X 5.4mm
Reference Standard	CSA; TUV; UL
Relay Action	LATCHED
Relay Form	2 FORM C
Relay Function	DPDT
Relay Type	POWER/SIGNAL RELAY
Release Time	2 ms
Terminal Finish	GOLD/SILVER
Terminal Length	0.003 inch
Termination Type	SOLDER
Weight	1.5 g
