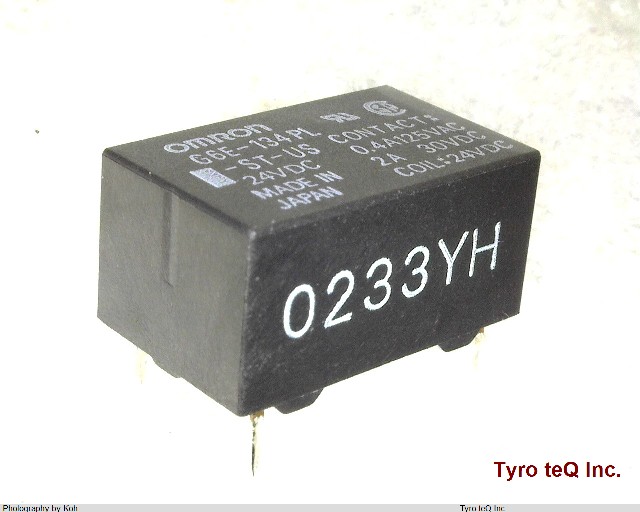

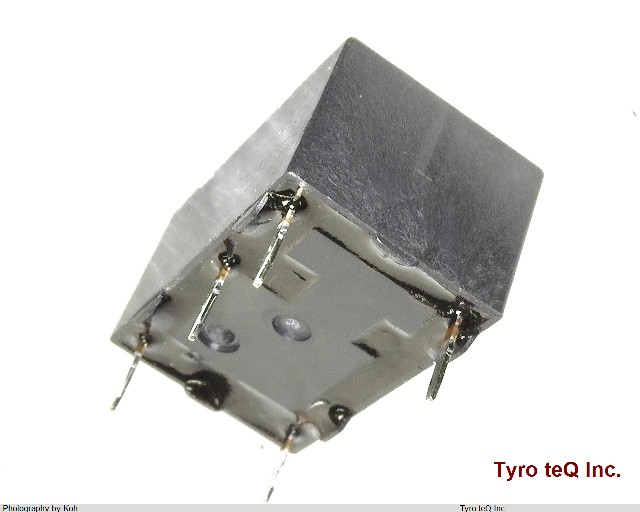

G6E-134PL-ST-US DC24

Name: G6E-134PL-ST-US DC24
Brand: OMRON
SKU: 170015727-0000-0000-0000

G6E-134PL-ST-US DC24 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

信号切換用リレー | 高感度 | 小型|シングル･ステイブル|1極|クロスバ･ツインAg（Au 合金接点)|コイル定格電圧： 24VDC

G6E-134PL-ST-US DC24 の詳細情報

型番	G6E-134PL-ST-US DC24
メーカー	OMRON
種別	マイクロリレー
Body Breadth	9.91 inch
Body Height	8.38 mm
Body Length or Diameter	16 mm
Coil Current(DC)-Max	0.017 A
Coil Operate Voltage(DC)	16.8 V
Coil Power	400 mW
Coil Release Voltage(DC)	2.4 V
Coil Resistance	1440 ohm
Coil Voltage(DC)-Max	24 V
Coil Voltage-Nom	24 V
Coil/Input Supply Type	DC
Contact AC Max Power Rating R Load	50VA@250VAC
Contact AC Max Rating I Load	3A@250VAC
Contact AC Max Rating R Load	3A@250VAC
Contact Current(AC)-Max	3 A
Contact Current(DC)-Max	3 A
Contact DC Max Power Rating R Load	60W@220VDC
Contact DC Max Rating R Load	3A@220VDC
Contact Resistance	50 mohm
Contact Voltage(AC)-Max	250 V
Contact Voltage(DC)-Max	220 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	1500 Vrms
Dielectric Strength Between Open Contacts	1000 Vrms
Electrical Life	200000 Cycle(s)
End Contact Material	Silver
End Contact Plating	GOLD ALLOY
Input Switching Control Type	Random
Insulation Resistance	1000000000 ohm
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	5
Operate Time	8 ms
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
PCB Hole Count	5
Physical Dimension	16mm x 9.91mm x 8.38mm
Reference Standard	CSA; UL
Relay Action	MOMENTARY
Relay Form	1 FORM C
Relay Function	SPDT
Relay Type	POWER/SIGNAL RELAY
Release Time	8 ms
Terminal Length	0.0035 inch
Termination Type	SOLDER
Weight	2.7 g
