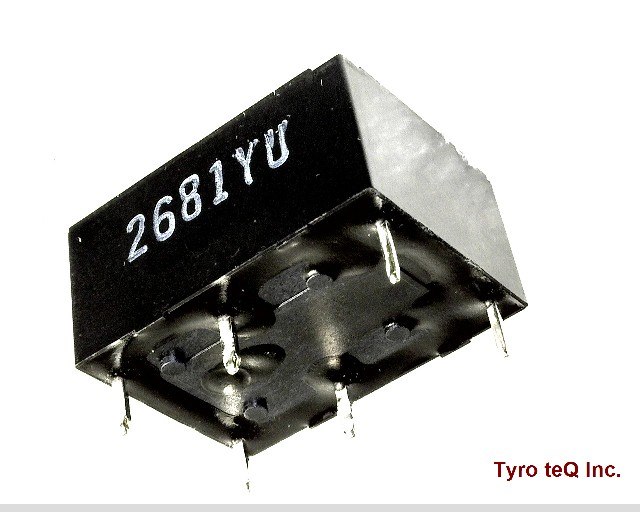

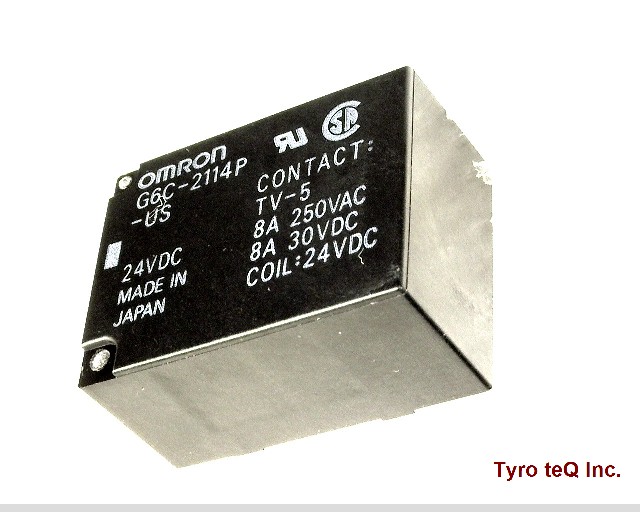

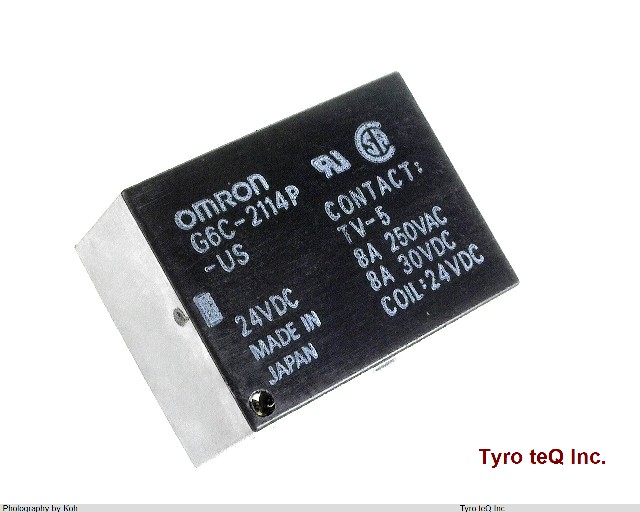

G6C-2114P-US DC24 データシート

Name: G6C-2114P-US DC24
Brand: OMRON
SKU: 170015647-0000-0000-0000

G6C-2114P-US DC24 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

G6C-2114P-US DC24 の詳細情報

型番	G6C-2114P-US DC24
メーカー	OMRON
種別	パワーリレー
データシート
Body Breadth	15 inch
Body Height	10 mm
Body Length or Diameter	20 mm
Coil Current(DC)-Max	0.008 A
Coil Operate Voltage(DC)	16.8 V
Coil Power	200 mW
Coil Release Voltage(DC)	2.4 V
Coil Resistance	2880 ohm
Coil Voltage(DC)-Max	38.4 V
Coil Voltage-Nom	24 V
Coil/Input Supply Type	DC
Contact AC Max Rating I Load	3.5A@250VAC
Contact AC Max Rating R Load	8A@250VAC
Contact Current(AC)-Max	8 A
Contact Current(DC)-Max	8 A
Contact DC Max Rating R Load	8A@30VDC
Contact Resistance	30 mohm
Contact Voltage(AC)-Max	380 V
Contact Voltage(DC)-Max	125 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	2000 Vrms
Electrical Life	100000 Cycle(s)
End Contact Material	Silver Alloy
Input Switching Control Type	Random
Insulation Resistance	100000000 ohm
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	4
Operate Time	10 ms
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-25 Cel
PCB Hole Count	4
Packing Method	TRAY
Physical Dimension	20mm x 15mm x 10mm
Reference Standard	CSA; IEC; UL; VDE
Relay Action	MOMENTARY
Relay Form	1 FORM A,B
Relay Function	SPST
Relay Type	POWER/SIGNAL RELAY
Release Time	10 ms
Sealing	SEALED TYPE
Terminal Length	0.0035 inch
Termination Type	SOLDER
Weight	5.6 g
