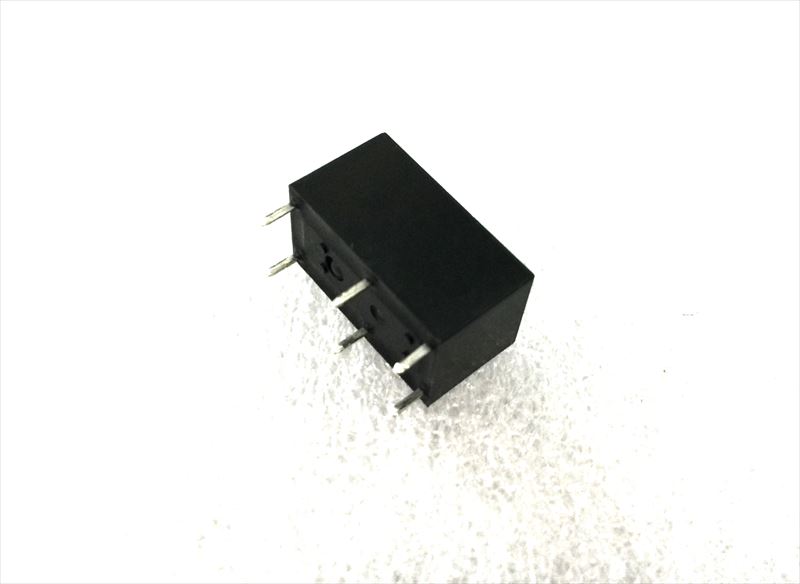

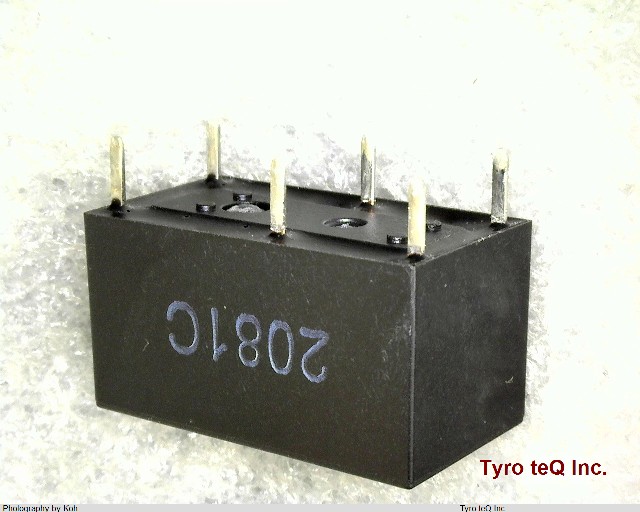

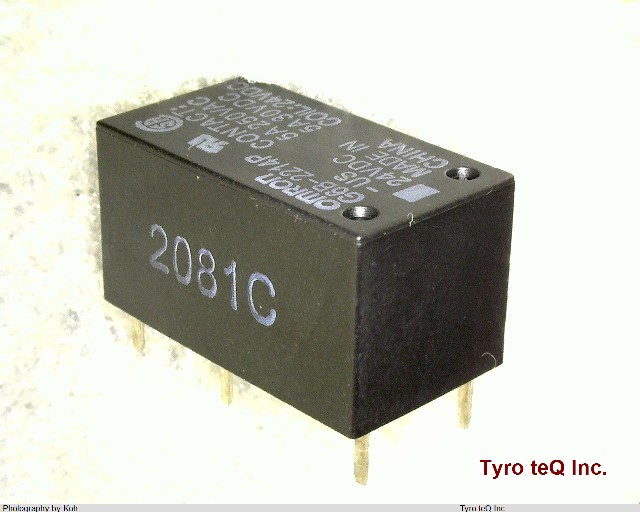

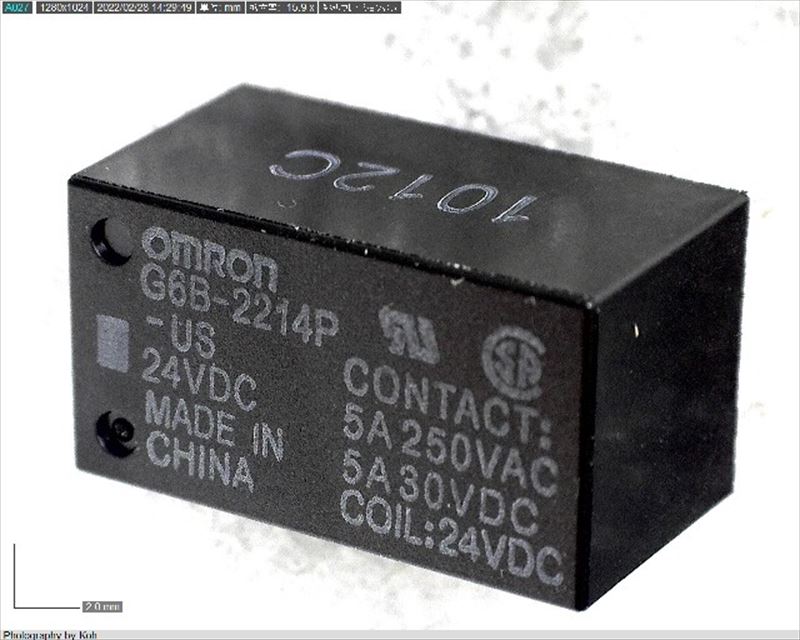

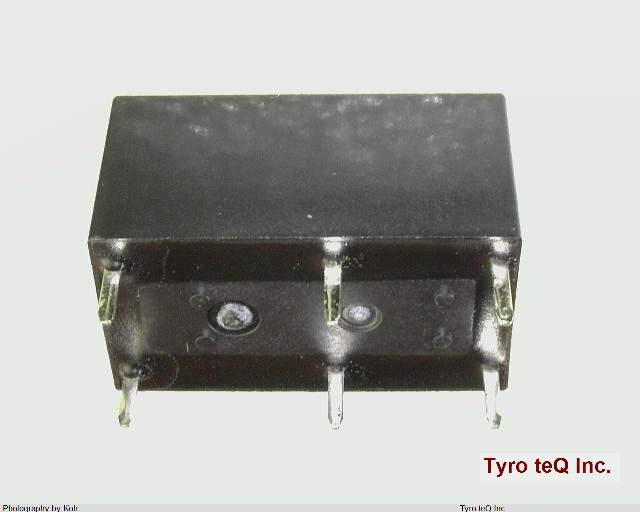

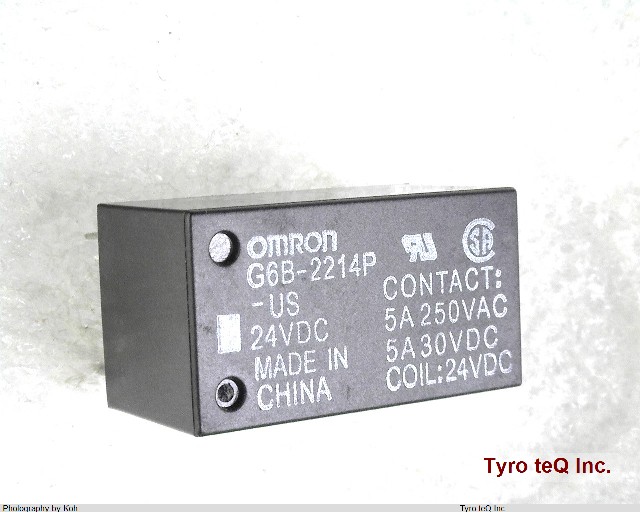

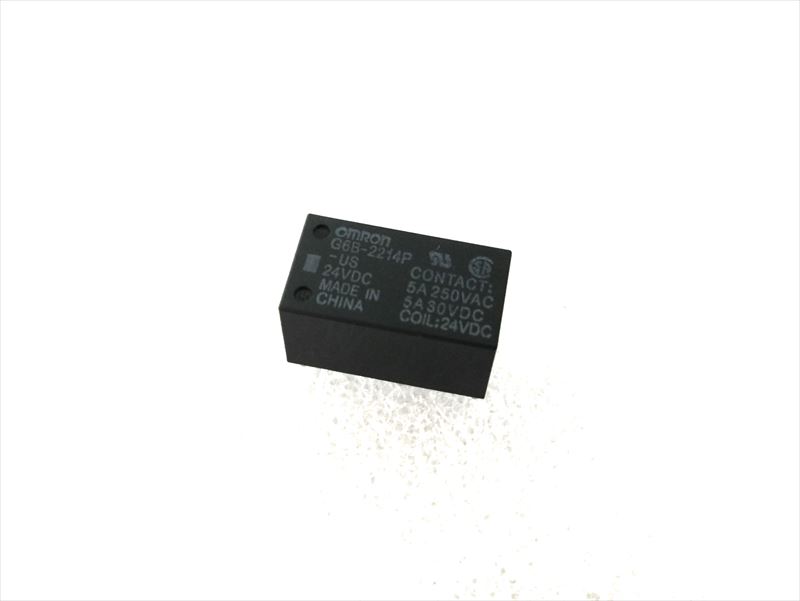

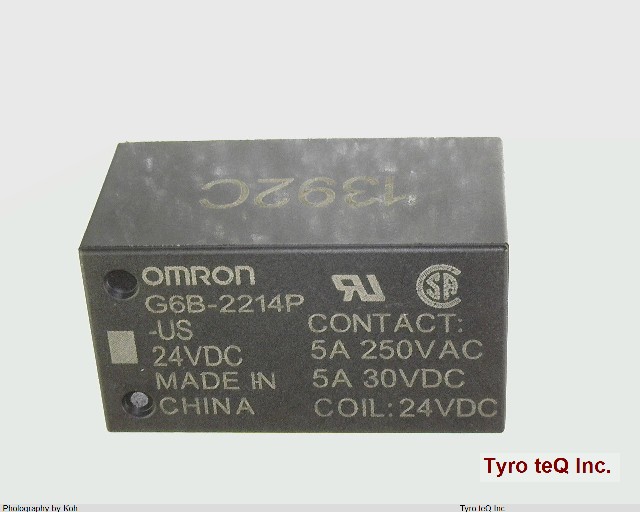

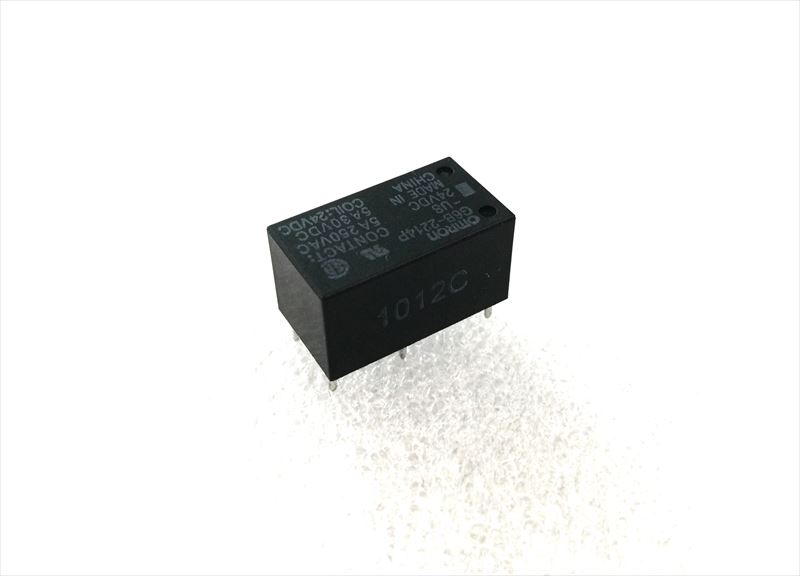

G6B-2214P-US DC24 データシート

Name: G6B-2214P-US DC24
Brand: OMRON
SKU: 170015553-0000-0000-0000

G6B-2214P-US DC24 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

G6B-2214P-US DC24 の詳細情報

型番	G6B-2214P-US DC24
メーカー	OMRON
種別	パワーリレー
データシート
Body Breadth	11 inch
Body Height	11 mm
Body Length or Diameter	20 mm
Coil Current(DC)-Max	0.013 A
Coil Operate Voltage(DC)	19.2 V
Coil Power	300 mW
Coil Release Voltage(DC)	2.4 V
Coil Resistance	1920 ohm
Coil Voltage(DC)-Max	24 V
Coil Voltage-Nom	24 V
Coil/Input Supply Type	DC
Contact AC Max Power Rating R Load	1250VA@380VAC
Contact AC Max Rating I Load	2A@250VAC
Contact AC Max Rating R Load	5A@30VDC
Contact Current(AC)-Max	5 A
Contact Current(DC)-Max	5 A
Contact DC Max Power Rating R Load	150W@125VDC
Contact DC Max Rating R Load	5A@30VDC
Contact Resistance	30 mohm
Contact Voltage(AC)-Max	250 V
Contact Voltage(DC)-Max	30 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	3000 Vrms
Dielectric Strength Between Open Contacts	2000 Vrms
End Contact Material	Silver Alloy
Input Switching Control Type	Random
Insulation Resistance	1000000000 ohm
JESD-609 Code	e4
Manufacturer Series	G6B
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	6
Operate Time	10 ms
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-25 Cel
PCB Hole Count	6
Physical Dimension	20mm x 11mm x 11mm
Reference Standard	CSA; UL
Relay Action	MOMENTARY
Relay Form	2 FORM A
Relay Function	DPST
Relay Type	POWER/SIGNAL RELAY
Release Time	10 ms
Terminal Finish	Silver (Ag)
Terminal Length	0.004 inch
Termination Type	SOLDER
Weight	4.5 g
