G6B-1114P-US DC5 データシート

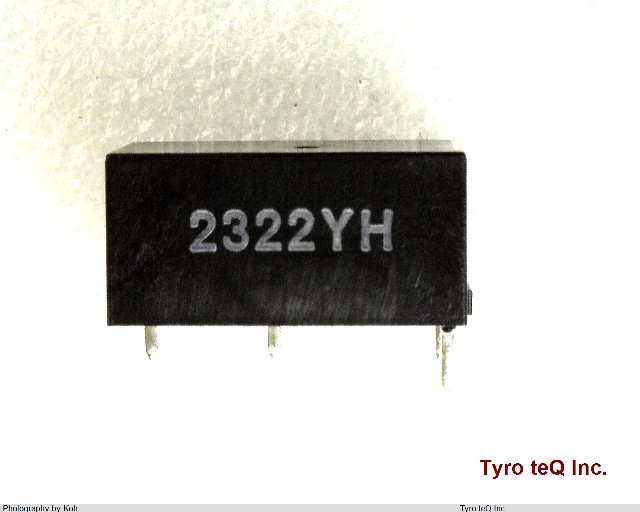

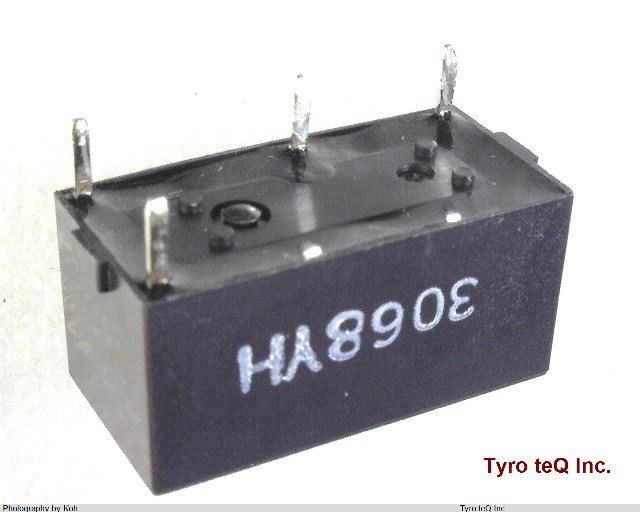

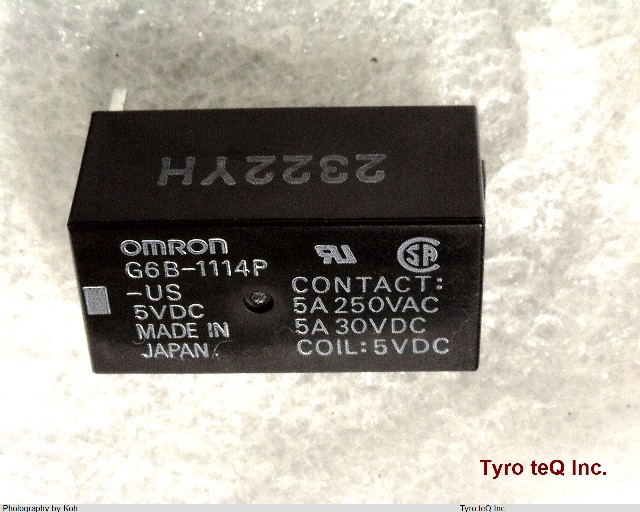

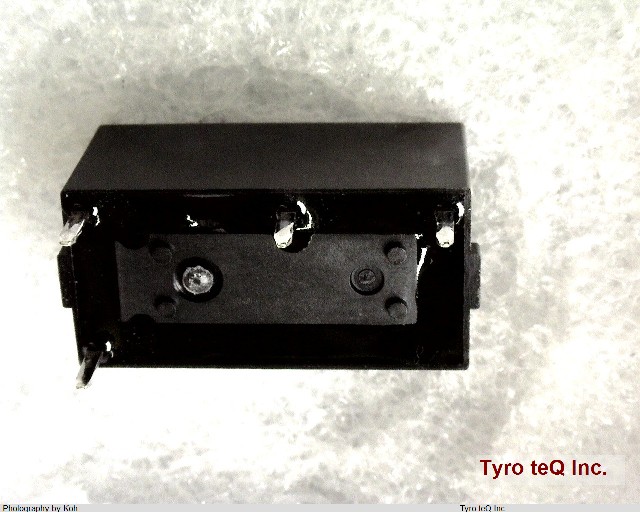

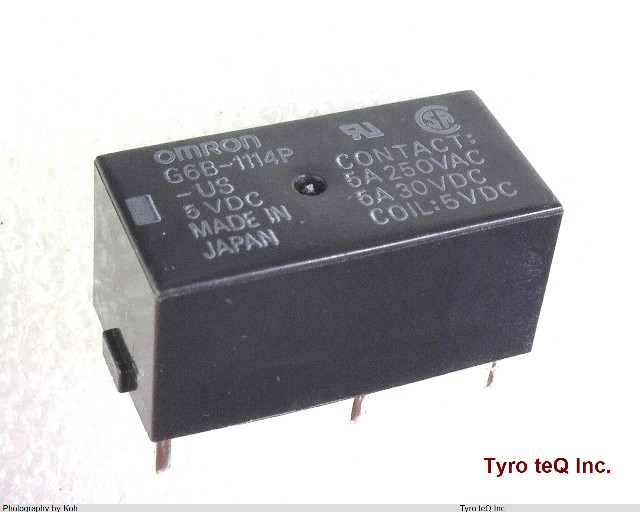

Name: G6B-1114P-US DC5
Brand: OMRON
SKU: 170015411-0000-0000-0000

G6B-1114P-US DC5 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

G6B-1114P-US DC5 の詳細情報

型番	G6B-1114P-US DC5
メーカー	OMRON
種別	パワーリレー
データシート
Body Breadth	10 inch
Body Height	10 mm
Body Length or Diameter	20 mm
Coil Current(DC)-Max	0.04 A
Coil Operate Voltage(DC)	3.5 V
Coil Power	200 mW
Coil Release Voltage(DC)	0.5 V
Coil Resistance	125 ohm
Coil Voltage(DC)-Max	5 V
Coil Voltage-Nom	5 V
Coil/Input Supply Type	DC
Contact AC Max Power Rating R Load	1250VA@380VAC
Contact AC Max Rating I Load	5A@380VAC
Contact AC Max Rating R Load	5A@30VDC
Contact Current(AC)-Max	5 A
Contact Current(DC)-Max	5 A
Contact DC Max Power Rating R Load	150W@125VDC
Contact DC Max Rating R Load	5A@30VDC
Contact Resistance	30 mohm
Contact Voltage(AC)-Max	380 V
Contact Voltage(DC)-Max	30 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	3000 Vrms
Electrical Life	100000 Cycle(s)
End Contact Material	Silver Alloy
Input Switching Control Type	Random
Insulation Resistance	1000000000 ohm
JESD-609 Code	e4
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	4
Operate Time	10 ms
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-25 Cel
PCB Hole Count	4
Physical Dimension	20mm x 10mm x 10mm
Reference Standard	CSA; UL
Relay Action	MOMENTARY
Relay Form	1 FORM A
Relay Function	SPST
Relay Type	POWER/SIGNAL RELAY
Release Time	10 ms
Terminal Finish	Silver (Ag)
Terminal Length	0.0035 inch
Termination Type	SOLDER
Weight	3.5 g
