G5Y-1-DC12 Omron

G5Y-1-DC12 - OMRON の商品詳細ページです。

1

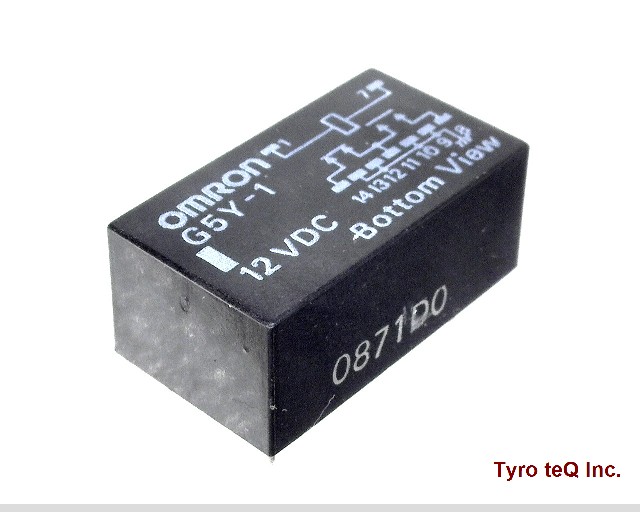

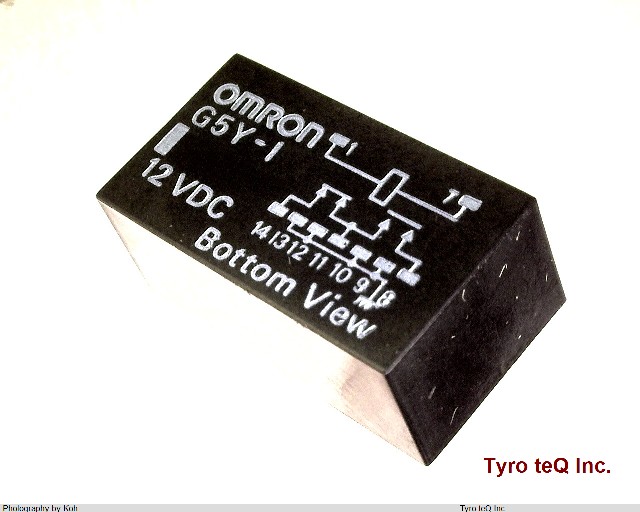

G5Y-1-DC12
  • G5Y-1-DC12
  • G5Y-1-DC12
  • G5Y-1-DC12
  • G5Y-1-DC12
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • no_image
  • 個
２営業日以内に回答いたします
この商品のお問い合わせ

G5Y-1-DC12 の詳細情報

  • 仕様・詳細
  • メーカー情報
型番G5Y-1-DC12
メーカーOMRON
Body Breadth 11.5 inch
Body Height 9 mm
Body Length or Diameter 20.5 mm
Characteristic Impedance 50 ohm
Coil Current(DC)-Max 0.025 A
Coil Operate Voltage(DC) 9 V
Coil Power 300 mW
Coil Release Voltage(DC) 1.2 V
Coil Resistance 480 ohm
Coil Voltage(DC)-Max 12 V
Coil/Input Supply Type DC
Contact AC Max Rating R Load .1A@30VAC
Contact Current(AC)-Max 0.1 A
Contact Current(DC)-Max 0.1 A
Contact DC Max Rating R Load .1A@30VDC
Contact Voltage(AC)-Max 30 V
Contact Voltage(DC)-Max 30 V
Contact/Output Supply Type AC/DC
Electrical Life 300000 Cycle(s)
Insertion Loss-Max 0.5 dB
Isolation-Max 60 dB
Manufacturer Series G5Y-1
Mounting Feature THROUGH HOLE-STRAIGHT MOUNT
Operate Time 15 ms
Operating Frequency-Max 900 MHz
Operating Frequency-Min 0 MHz
Operating Temperature-Max 60 Cel
Operating Temperature-Min -25 Cel
Physical Dimension 20.5mm x 11.5mm x 9mm
Relay Action MOMENTARY
Relay Function SPDT
Relay Type RF RELAY
Release Time 10 ms
Switching Time 25 ms
Termination Type SOLDER
VSWR 1.8
会社名称オムロン株式会社
設立1948年5月19日
資本金641億円
所在地600-8530 京都市下京区塩小路通堀川東入
URLhttp://www.omron.com/

G5Y-1-DC12のレビュー

G5Y-1-DC12 のご注文について
