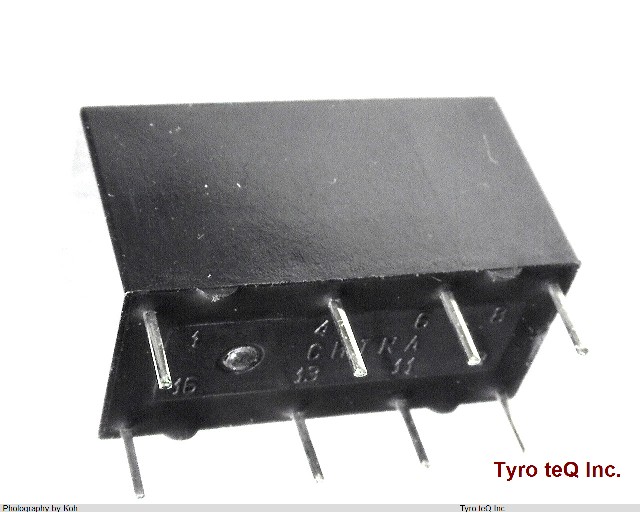

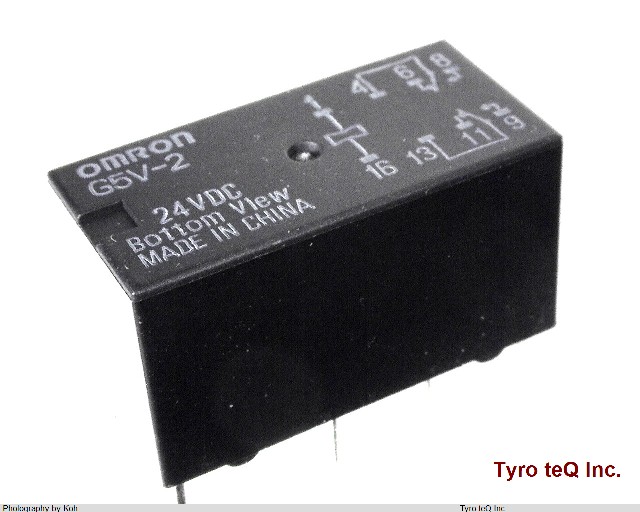

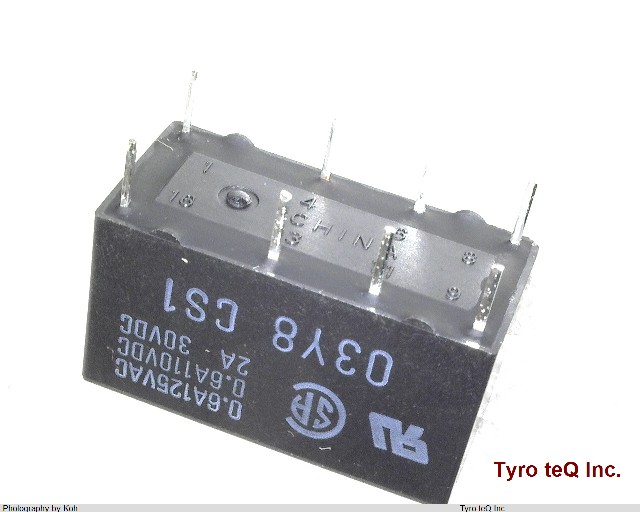

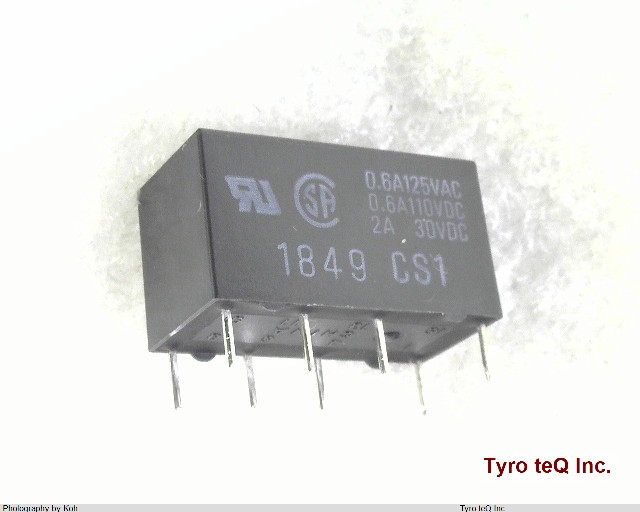

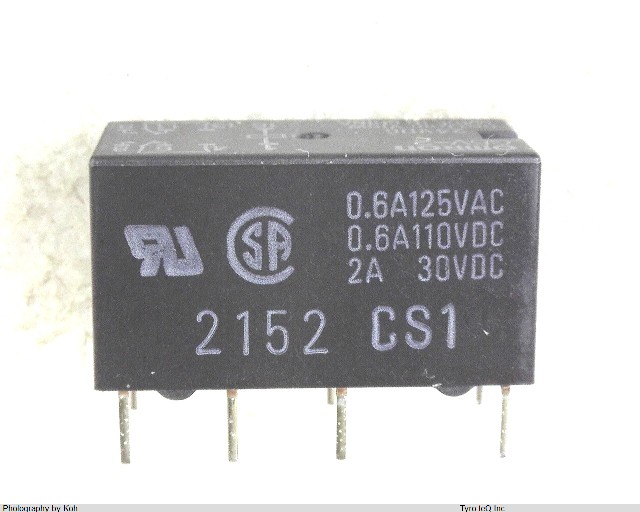

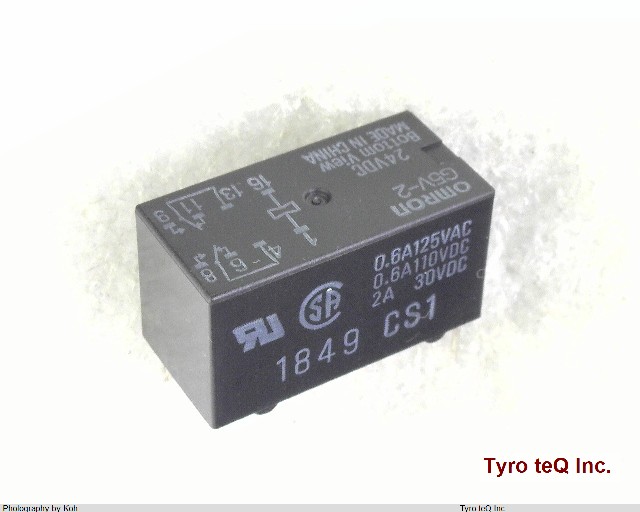

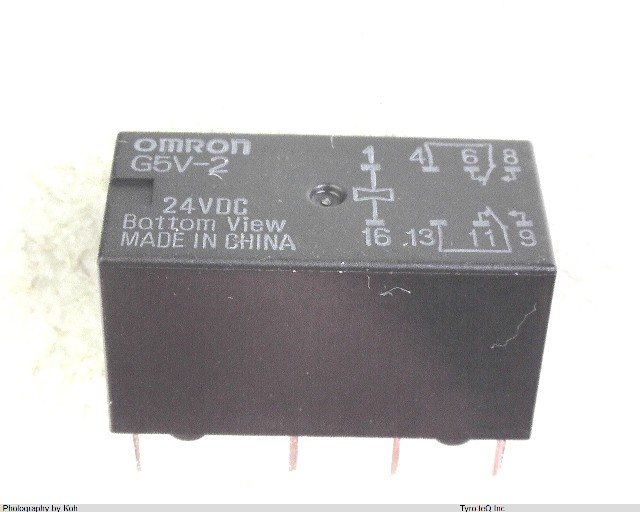

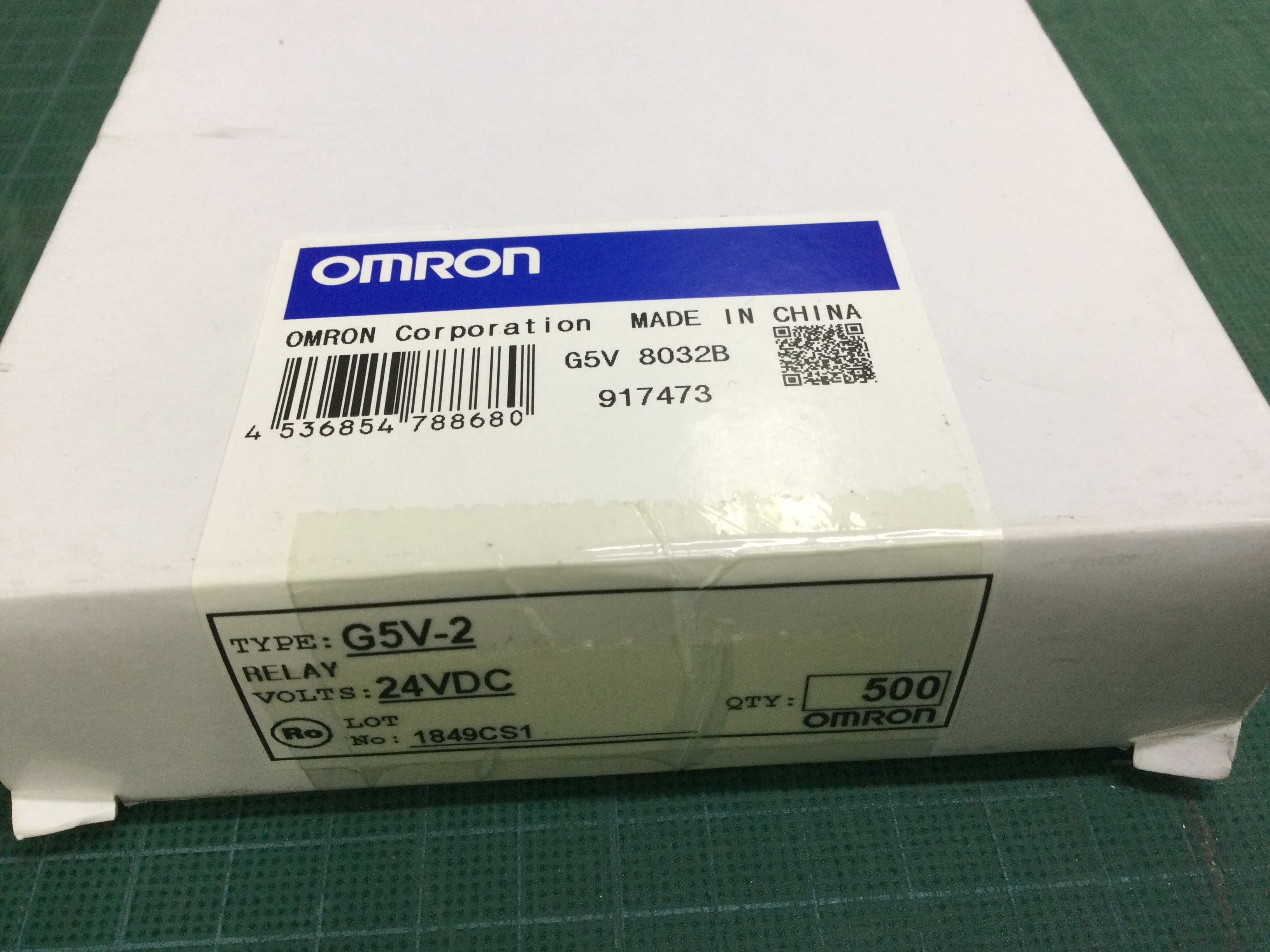

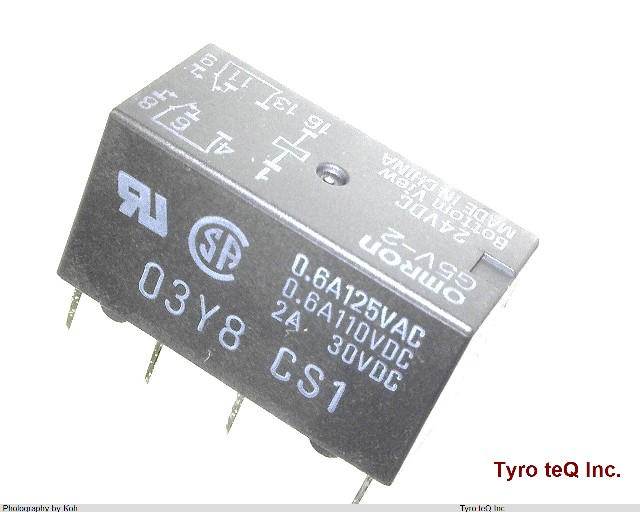

G5V-2 DC24 データシート

Name: G5V-2 DC24
Brand: OMRON
SKU: 170014588-0000-0000-0000

G5V-2 DC24 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

汎用・ローコスト・2極信号用リレー|コイル定格電圧： 24VDC

G5V-2 DC24 の詳細情報

型番	G5V-2 DC24
メーカー	OMRON
種別	汎用2極信号用ミニリレー
データシート
Body Breadth	10.1 inch
Body Height	11.5 mm
Body Length or Diameter	20.5 mm
Coil Current(DC)-Max	0.021 A
Coil Operate Voltage(DC)	18 V
Coil Power	500 mW
Coil Release Voltage(DC)	1.2 V
Coil Resistance	1152 ohm
Coil Voltage(DC)-Max	24 V
Coil Voltage-Nom	24 V
Coil/Input Supply Type	DC
Contact AC Max Rating R Load	2A@125VAC
Contact Current(AC)-Max	2 A
Contact Current(DC)-Max	2 A
Contact DC Max Rating R Load	2A@125VDC
Contact Resistance	50 mohm
Contact Voltage(AC)-Max	125 V
Contact Voltage(DC)-Max	125 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	1000 Vrms
Electrical Life	100000 Cycle(s)
End Contact Material	Silver
End Contact Plating	GOLD
Input Switching Control Type	Random
Insulation Resistance	1000000000 ohm
JESD-609 Code	e4
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	8
Operate Time	7 ms
Operating Temperature-Max	65 Cel
Operating Temperature-Min	-25 Cel
PCB Hole Count	8
Physical Dimension	20.5mm x 10.1mm x 11.5mm
Reference Standard	CSA; FCC; UL
Relay Action	MOMENTARY
Relay Form	2 FORM C
Relay Function	DPDT
Relay Type	POWER/SIGNAL RELAY
Release Time	3 ms
Terminal Finish	Silver (Ag)
Terminal Length	0.003 inch
Termination Type	SOLDER
Weight	5 g
