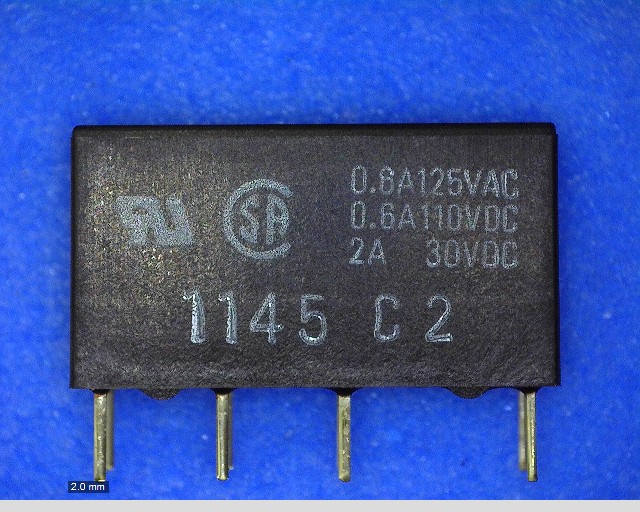

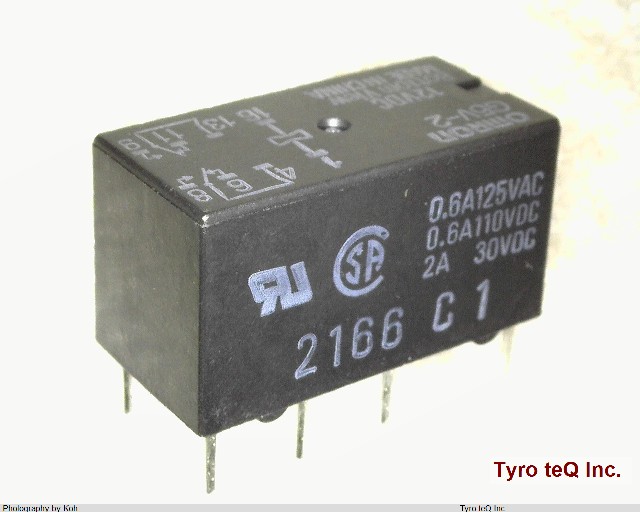

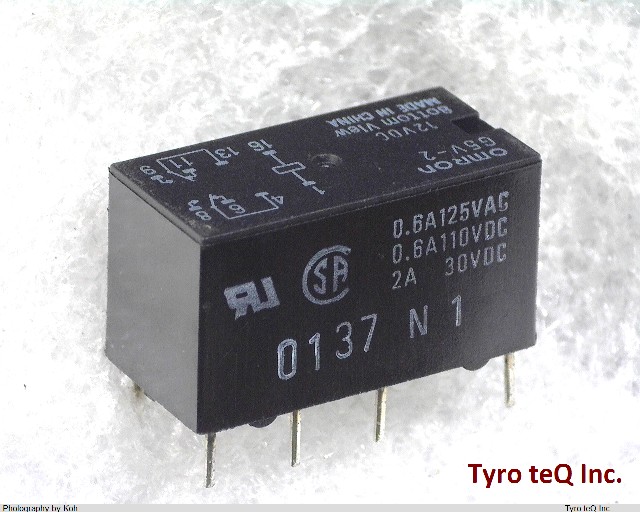

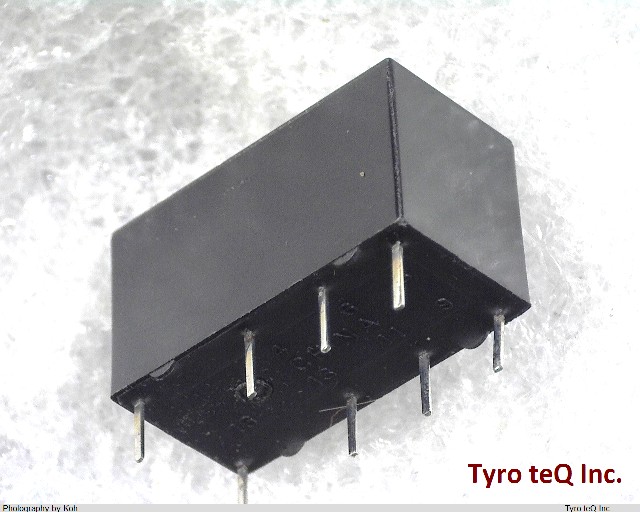

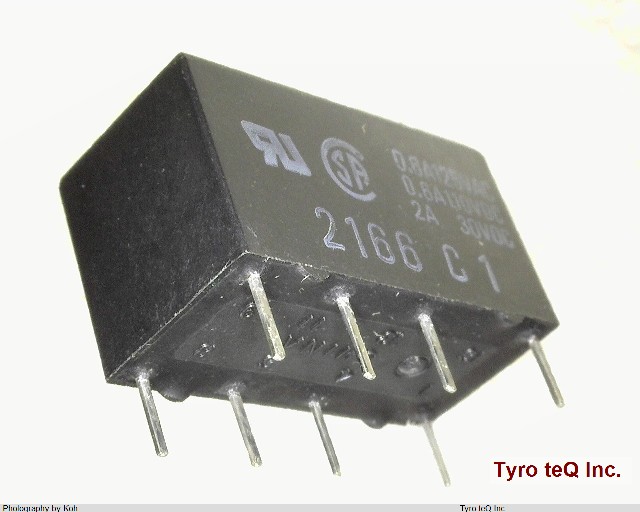

G5V-2 DC12 データシート

Name: G5V-2 DC12
Brand: OMRON
SKU: 170003909-0000-0000-0000

G5V-2 DC12 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

汎用・ローコスト・2極信号用リレー|コイル定格電圧： 12VDC

G5V-2 DC12 の詳細情報

型番	G5V-2 DC12
メーカー	OMRON
種別	汎用2極信号用ミニリレー
データシート
Body Breadth	10.1 inch
Body Height	11.5 mm
Body Length or Diameter	20.5 mm
Coil Current(DC)-Max	0.042 A
Coil Operate Voltage(DC)	9 V
Coil Power	500 mW
Coil Release Voltage(DC)	0.6 V
Coil Resistance	288 ohm
Coil Voltage(DC)-Max	12 V
Coil Voltage-Nom	12 V
Coil/Input Supply Type	DC
Contact AC Max Power Rating R Load	62.5VA@125VAC
Contact AC Max Rating R Load	2A@125VAC
Contact Current(AC)-Max	2 A
Contact Current(DC)-Max	2 A
Contact DC Max Power Rating R Load	60W@125VDC
Contact DC Max Rating R Load	2A@125VDC
Contact Resistance	50 mohm
Contact Voltage(AC)-Max	125 V
Contact Voltage(DC)-Max	125 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	1000 Vrms
Dielectric Strength Between Open Contacts	1000 Vrms
Electrical Life	100000 Cycle(s)
End Contact Material	Silver
End Contact Plating	GOLD ALLOY
Input Switching Control Type	Random
Insulation Resistance	1000000000 ohm
JESD-609 Code	e4
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	8
Operate Time	7 ms
Operating Temperature-Max	65 Cel
Operating Temperature-Min	-25 Cel
PCB Hole Count	8
Physical Dimension	20.5mm x 10.1mm x 11.5mm
Reference Standard	CSA; FCC; UL
Relay Action	MOMENTARY
Relay Form	2 FORM C
Relay Function	DPDT
Relay Type	POWER/SIGNAL RELAY
Release Time	3 ms
Terminal Finish	Silver (Ag)
Terminal Length	0.0035 inch
Termination Type	SOLDER
Weight	5 g
