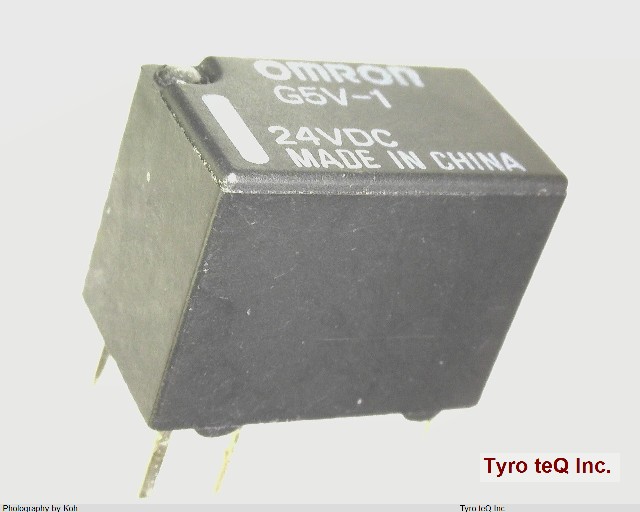

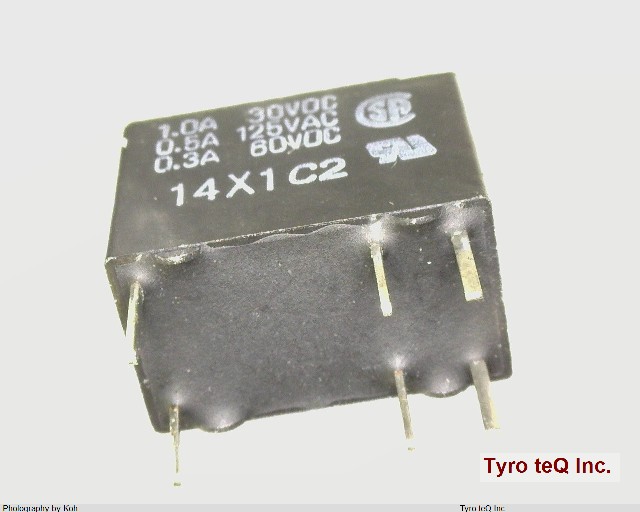

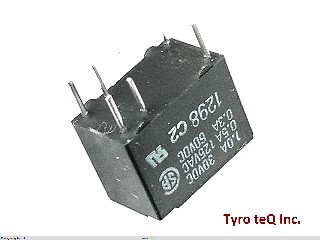

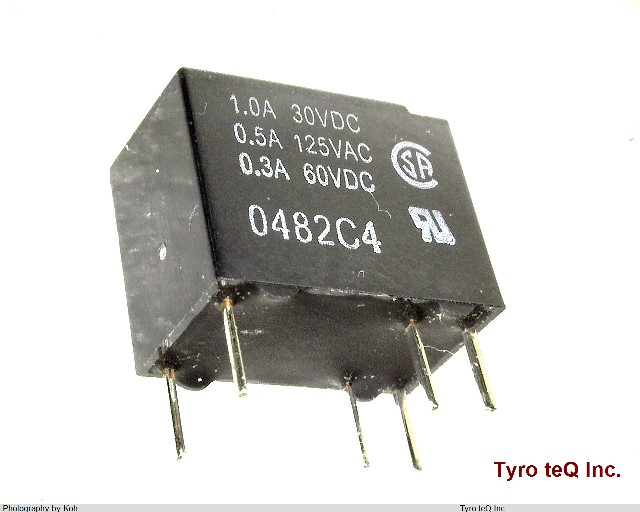

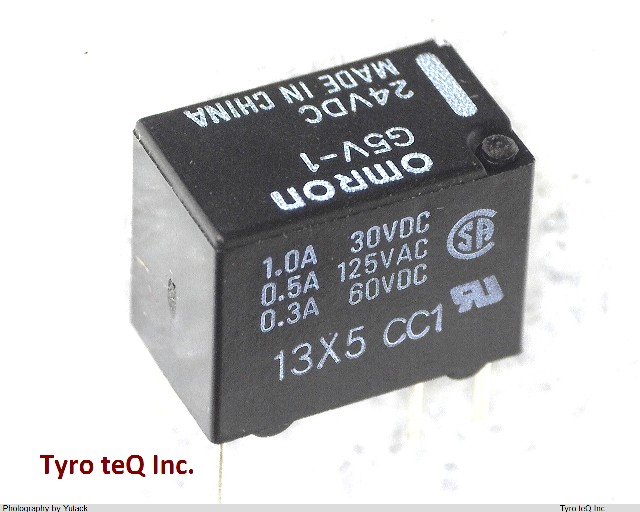

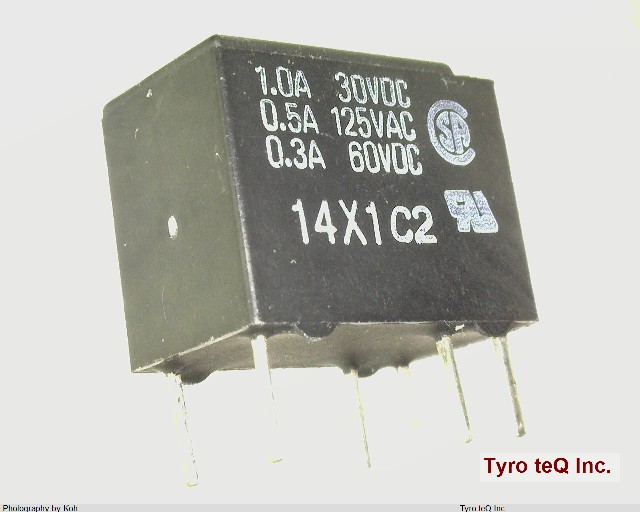

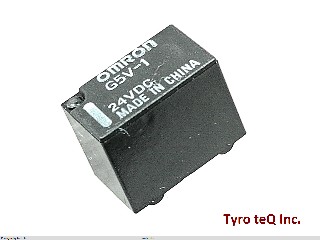

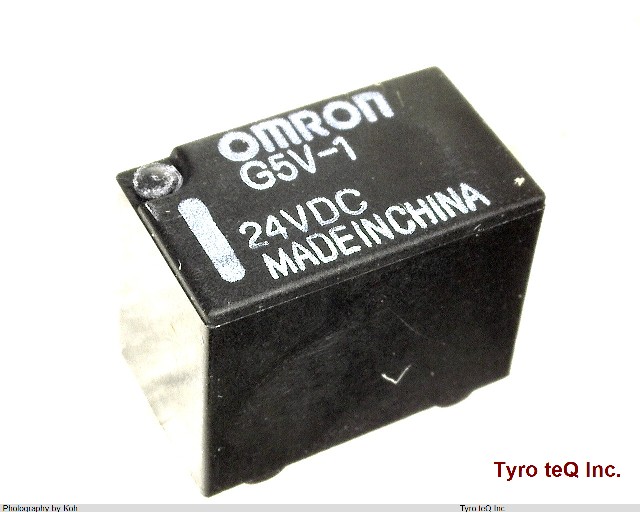

G5V-1DC24 データシート

Name: G5V-1DC24
Brand: OMRON
SKU: 170003906-0000-0000-0000

G5V-1DC24 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

小型・高感度1極信号用リレー|コイル定格電圧： 24VDC

G5V-1DC24 の詳細情報

型番	G5V-1DC24
メーカー	OMRON
種別	高感度1極マイクロリレー
データシート
Body Breadth	7.5 inch
Body Height	10 mm
Body Length or Diameter	12.5 mm
Coil Current(DC)-Max	0.006 A
Coil Operate Voltage(DC)	19.2 V
Coil Power	150 mW
Coil Release Voltage(DC)	2.4 V
Coil Resistance	3840 ohm
Coil Voltage(DC)-Max	24 V
Coil Voltage-Nom	24 V
Coil/Input Supply Type	DC
Contact AC Max Rating R Load	.5A@125VAC
Contact Current(AC)-Max	0.5 A
Contact Current(DC)-Max	1 A
Contact DC Max Rating R Load	1A@30VDC
Contact Resistance	100 mohm
Contact Voltage(AC)-Max	125 V
Contact Voltage(DC)-Max	30 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	1000 Vrms
Dielectric Strength Between Open Contacts	400 Vrms
Electrical Life	100000 Cycle(s)
End Contact Material	Silver Alloy
End Contact Plating	GOLD
Input Switching Control Type	Random
Insulation Resistance	1000000000 ohm
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	6
Operate Time	5 ms
Operating Temperature-Max	70 Cel
Operating Temperature-Min	-40 Cel
PCB Hole Count	6
Physical Dimension	12.5mm x 7.5mm x 10mm
Reference Standard	CSA; UL
Relay Action	MOMENTARY
Relay Form	1 FORM C
Relay Function	SPDT
Relay Type	POWER/SIGNAL RELAY
Release Time	5 ms
Sealing	PLASTIC SEALED
Terminal Length	0.0035 inch
Termination Type	SOLDER
Weight	2 g
