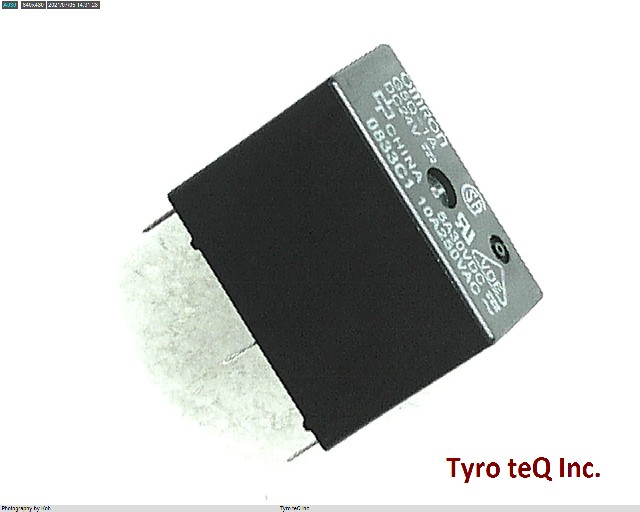

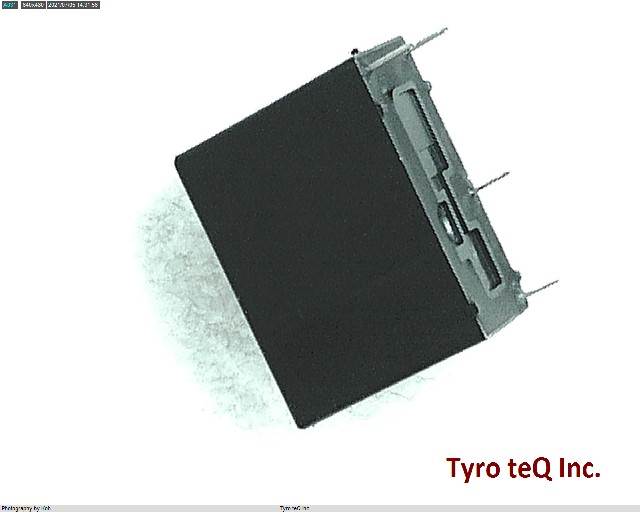

G5Q-1A DC24

Name: G5Q-1A DC24
Brand: OMRON
SKU: 170014536-0000-0000-0000

G5Q-1A DC24 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

パワーリレー | 耐衝撃電圧10kV|接点極数 : 1 極|接点構成 : 1a接点|コイル定格電圧： 24VDC

G5Q-1A DC24 の詳細情報

型番	G5Q-1A DC24
メーカー	OMRON
種別	小型パワーリレー
Additional Feature	CONTACT CURRENT RATINGS ARE AS PER NO AND NC RATING IS 3A
Body Breadth	10.3 inch
Body Height	16.2 mm
Body Length or Diameter	20.3 mm
Coil Current(DC)-Max	0.008 A
Coil Operate Voltage(DC)	18 V
Coil Power	200 mW
Coil Release Voltage(DC)	1.2 V
Coil Resistance	2880 ohm
Coil Voltage(DC)-Max	45.6 V
Coil Voltage-Nom	24 V
Coil/Input Supply Type	DC
Contact AC Max Rating R Load	10A@277VAC
Contact Current(AC)-Max	10 A
Contact Current(DC)-Max	5 A
Contact DC Max Rating R Load	5A@30VDC
Contact Resistance	100 mohm
Contact Voltage(AC)-Max	277 V
Contact Voltage(DC)-Max	30 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	4000 Vrms
Dielectric Strength Between Open Contacts	1000 Vrms
Electrical Life	50000 Cycle(s)
End Contact Material	Silver Alloy
Input Switching Control Type	Random
Insulation Resistance	1000000000 ohm
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	4
Operate Time	10 ms
Operating Temperature-Max	105 Cel
Operating Temperature-Min	-40 Cel
PCB Hole Count	4
Packing Method	TRAY
Physical Dimension	20.3mm x 10.3mm x 16.2mm
Reference Standard	CQC; CSA; UL; VDE
Relay Action	MOMENTARY
Relay Form	1 FORM A
Relay Function	SPST
Relay Type	POWER/SIGNAL RELAY
Release Time	5 ms
Terminal Length	0.003 inch
Termination Type	SOLDER
Weight	6.5 g
