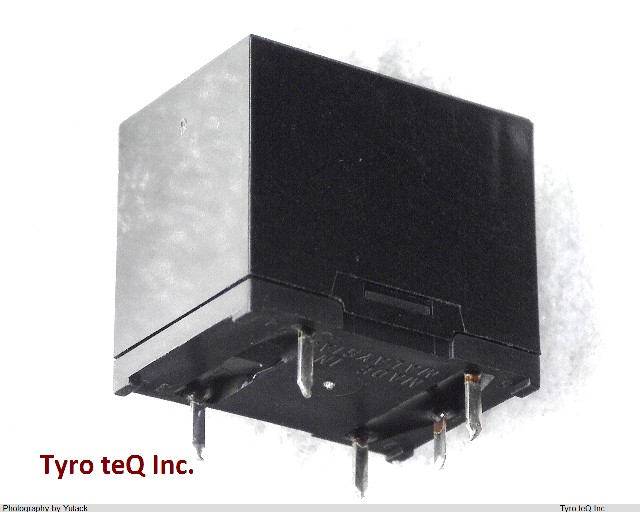

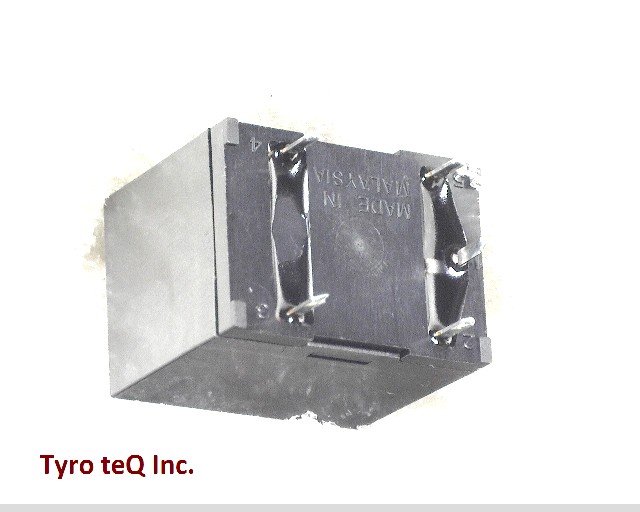

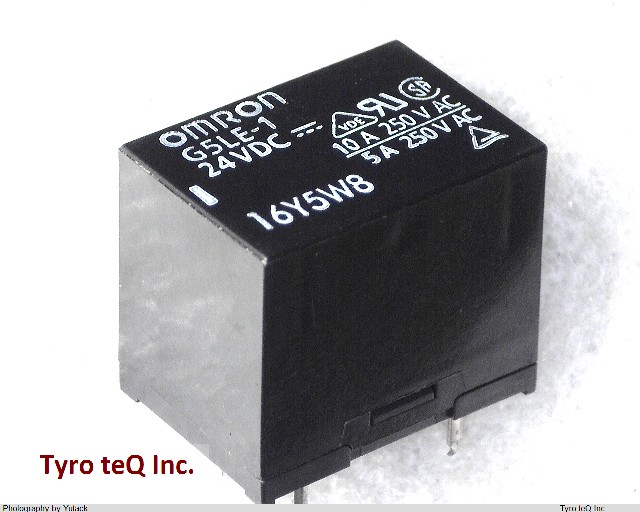

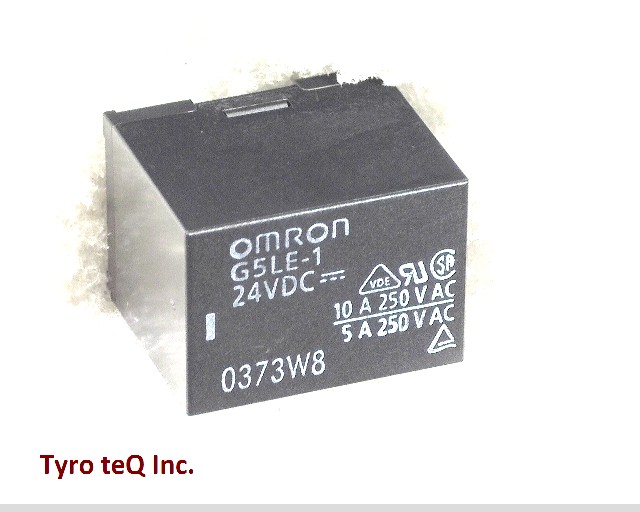

G5LE-1 DC24

Name: G5LE-1 DC24
Brand: OMRON
SKU: 170014473-0000-0000-0000

G5LE-1 DC24 - OMRON の商品詳細ページです。

２営業日以内に回答いたします

パワーリレー | キュービックタイプ | 10A|接点極数 : 1 極|コイル定格電圧： 24VDC

G5LE-1 DC24 の詳細情報

型番	G5LE-1 DC24
メーカー	OMRON
種別	パワーリレー
Body Breadth	16.5 inch
Body Height	19 mm
Body Length or Diameter	22.5 mm
Coil Current(DC)-Max	0.017 A
Coil Operate Voltage(DC)	18 V
Coil Power	400 mW
Coil Release Voltage(DC)	2.4 V
Coil Resistance	1440 ohm
Coil Voltage(DC)-Max	24 V
Coil Voltage-Nom	24 V
Coil/Input Supply Type	DC
Contact AC Max Power Rating R Load	1200VA@240VAC
Contact AC Max Rating R Load	10A@250VAC
Contact Current(AC)-Max	10 A
Contact Current(DC)-Max	8 A
Contact DC Max Power Rating R Load	240W@30VDC
Contact DC Max Rating R Load	8A@30VDC
Contact Resistance	100 mohm
Contact Voltage(AC)-Max	250 V
Contact Voltage(DC)-Max	30 V
Contact/Output Supply Type	AC/DC
Dielectric Strength Between Coil and Contacts	2000 Vrms
Dielectric Strength Between Open Contacts	1500 Vrms
Electrical Life	36000 Cycle(s)
End Contact Material	Silver Tin Oxide
Input Switching Control Type	Random
Insulation Resistance	100000000 ohm
Mounting Feature	THROUGH HOLE-STRAIGHT MOUNT
Number of Terminals	5
Operate Time	10.6 ms
Operating Temperature-Max	85 Cel
Operating Temperature-Min	-25 Cel
PCB Hole Count	5
Packing Method	TRAY
Physical Dimension	22.5mm x 16.5mm x 19mm
Reference Standard	CSA; UL; VDE
Relay Action	MOMENTARY
Relay Form	1 FORM C
Relay Function	SPDT
Relay Type	POWER/SIGNAL RELAY
Release Time	12.2 ms
Terminal Length	0.0035 inch
Termination Type	SOLDER
Weight	12 g
